Removal [09/2016 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH

    Refer to REMOVAL [09/2016 - ]

  2. REMOVE CENTER STOP LIGHT SET

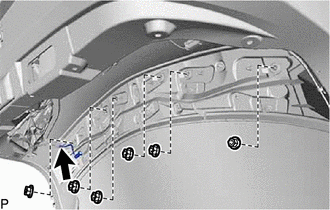

    1. Disconnect the connector.
      GTY696317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 nuts.

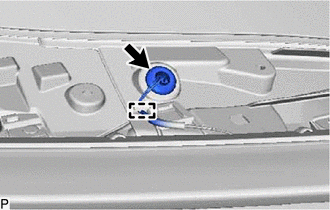

    3. Disengage the grommet and clamp.
      GTY696336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

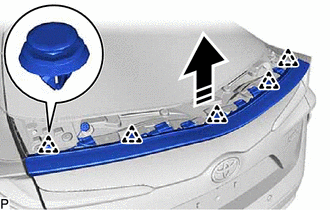

    4. Disengage the 5 clips as shown in the illustration to remove the center stop light set.
      GTY738143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

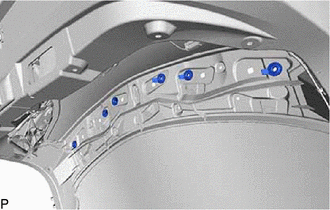

    5. Remove the 6 collars.
      GTY733058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
