Removal [09/2016 - ]: Procedure

  1. REMOVE DOOR PULL HANDLE

    Refer to PROCEDURE - Step 2 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 2 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 4 [07/2020 - ]

  2. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 3 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 3 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 5 [07/2020 - ]

  3. REMOVE REAR LIGHT ASSEMBLY

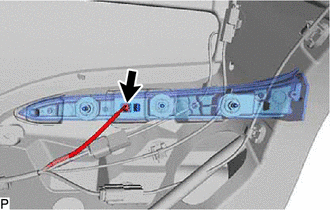

    1. Disconnect the connector.
      GTY696323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

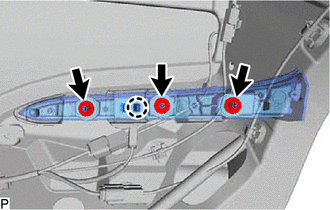

    2. Remove the 3 nuts.
      GTY696324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the claw to remove the rear light assembly.
