Installation [11/2020 - 12/2022]: Procedure

  1. TEMPORARILY TIGHTEN FRONT LOWER SUSPENSION ARM ASSEMBLY LH
    1. GTY979036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Insert the bolt from the front of the vehicle. Temporarily install the front lower suspension arm assembly LH with the nut.

        HINT:

        Fully tighten the nut after stabilizing the suspension.

  2. TEMPORARILY TIGHTEN FRONT LOWER SUSPENSION ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  3. TEMPORARILY TIGHTEN LOWER NO. 2 SUSPENSION ARM ASSEMBLY LH

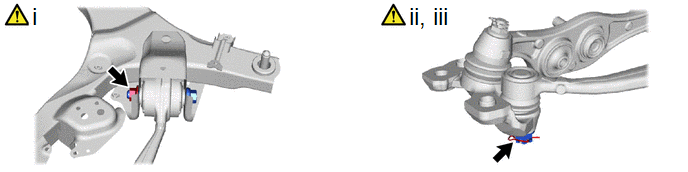

    1. GTY980688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Insert the bolt from the front of the vehicle. Temporarily install the front lower suspension arm assembly LH with the nut.

        HINT:

        Fully tighten the nut after stabilizing the suspension.

      2. Install the lower No. 2 suspension arm assembly LH to the front lower ball joint assembly LH with the nut.

        Torque: 145 N.m (1479 kgf/cm, 107 ft.lbf)

        NOTE:

        Keep the threads and taper free of oil and grease.

      3. Install a new clip.
        NOTE:

        Further tighten the nut up to 60° if the holes for the clip are not aligned.

  4. TEMPORARILY TIGHTEN LOWER NO. 2 SUSPENSION ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  5. REMOVE HOLDING BAR
  6. INSTALL FRONT FRAME ASSEMBLY

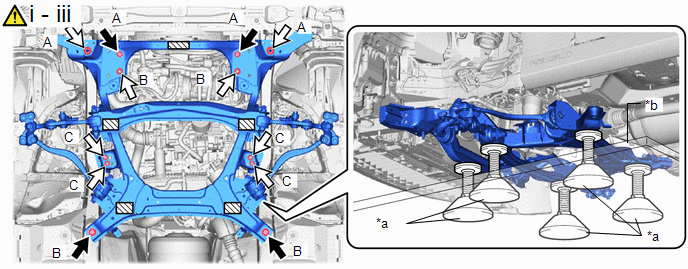

    1. GTY979714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Attachment *b Engine Lifter
      Bolt Nut
      Attachment placement location - -
      1. Support the front frame assembly with an engine lifter using 4 attachments or equivalent tools as shown in the illustration.
        WARNING:
        • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
        • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
        GTY628581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        Use attachments to keep the rear suspension member sub-assembly level.

      2. Raise the rear suspension member sub-assembly until there is no clearance between the front frame assembly and vehicle body.
        NOTE:

        When raising the front frame assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

      3. Install the front frame assembly with the 4 bolts and 8 nuts.

        Bolt A

        Torque: 120 N.m (1224 kgf/cm, 89 ft.lbf)

        Bolt B

        Torque: 170 N.m (1734 kgf/cm, 125 ft.lbf)

        Nut A

        Torque: 170 N.m (1734 kgf/cm, 125 ft.lbf)

        Nut B

        Torque: 120 N.m (1224 kgf/cm, 89 ft.lbf)

        Nut C

        Torque: 65 N.m (663 kgf/cm, 48 ft.lbf)

  7. REMOVE ENGINE SUPPORT BRIDGE
    1. Remove the engine support bridge from the vehicle.
      NOTE:

      Make sure the engine support bridge does not interfere with the parts such as radiator support, engine hood or windshield glass when removing.

  8. REMOVE ENGINE HANGER

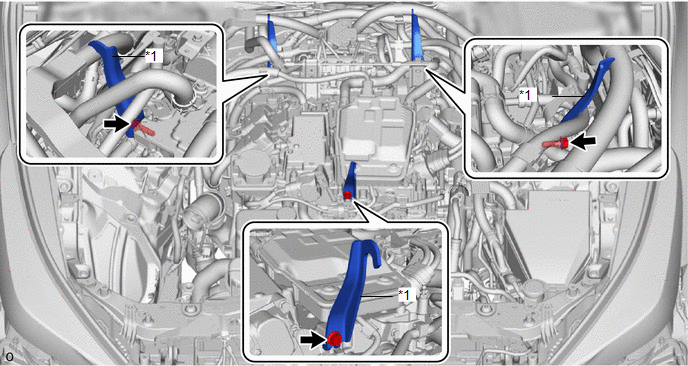

    1. GTY980237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Engine Hanger - -
      Bolt - -
  9. INSTALL FRONT COMPARTMENT SIDE COVER LH
  10. INSTALL FRONT COMPARTMENT SIDE COVER RH
  11. INSTALL FRONT STABILIZER BAR

    Refer to INSTALLATION [11/2020 - ]

  12. INSTALL RACK AND PINION POWER STEERING GEAR ASSEMBLY

    Refer to INSTALLATION [11/2020 - 12/2022]

  13. TEMPORARILY TIGHTEN STEERING KNUCKLE LH

    Refer to PROCEDURE - Step 1

  14. TEMPORARILY TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY LH
    1. GTY980961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Insert the bolt from the rear of the vehicle. Temporarily install the front shock absorber assembly LH with the bolt and nut.
        NOTE:

        Because the nut has its own stopper, turn the bolt.

  15. TEMPORARILY TIGHTEN FRONT STABILIZER LINK ASSEMBLY LH

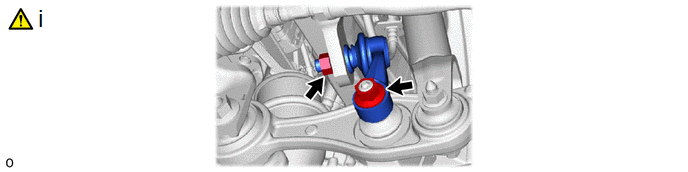

    1. GTY979733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily tighten the front stabilizer link assembly LH with the 2 nuts.

        HINT:

        If the ball joint turns together with the nut, use a 8 mm hexagon wrench to hold the stud bolt.

  16. CONNECT TIE ROD ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2
  17. CONNECT FRONT UPPER NO. 1 SUSPENSION ARM ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  18. CONNECT FRONT UPPER NO. 2 SUSPENSION ARM ASSEMBLY LH
    1. Use the same procedure described for the front upper No. 1 suspension arm assembly LH.
  19. FULLY TIGHTEN STEERING KNUCKLE LH

    Refer to PROCEDURE - Step 4

  20. INSTALL FRONT DISC BRAKE DUST COVER LH

    Refer to PROCEDURE - Step 1

  21. INSTALL FRONT DISC LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  22. INSTALL DISC BRAKE CYLINDER ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  23. INSTALL FRONT SKID CONTROL SENSOR WIRE LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 8
  24. TEMPORARILY TIGHTEN STEERING KNUCKLE RH
    1. Perform the same procedure as for the LH side.
  25. TEMPORARILY TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  26. TEMPORARILY TIGHTEN FRONT STABILIZER LINK ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  27. CONNECT TIE ROD ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  28. CONNECT FRONT UPPER NO. 1 SUSPENSION ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  29. CONNECT FRONT UPPER NO. 2 SUSPENSION ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  30. FULLY TIGHTEN STEERING KNUCKLE RH
    1. Perform the same procedure as for the LH side.
  31. INSTALL FRONT DISC BRAKE DUST COVER RH
    1. Perform the same procedure as for the LH side.
  32. INSTALL FRONT DISC RH
    1. Perform the same procedure as for the LH side.
  33. INSTALL DISC BRAKE CYLINDER ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  34. INSTALL FRONT SKID CONTROL SENSOR WIRE RH
    1. Perform the same procedure as for the LH side.
  35. STABILIZE SUSPENSION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 15
  36. FULLY TIGHTEN FRONT LOWER SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 15

  37. FULLY TIGHTEN LOWER NO. 2 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 17

  38. FULLY TIGHTEN FRONT STABILIZER LINK ASSEMBLY LH
    1. GTY979733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the front stabilizer link assembly LH with the 2 nut.

        Torque: 150 N.m (1530 kgf/cm, 111 ft.lbf)

        HINT:

        If the ball joint turns together with the nut, use a 8 mm hexagon wrench to hold the stud bolt.

  39. FULLY TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY LH

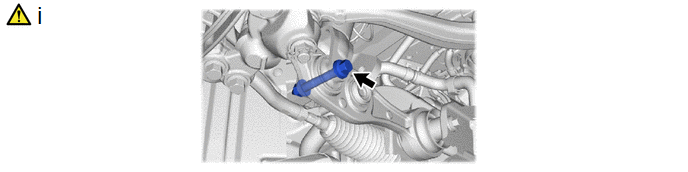

    1. GTY980578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the front shock absorber assembly LH with the bolt and nut and temporarily tighten the bolt.
        NOTE:

        Because the nut has its own stopper, turn the bolt.

        Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

  40. INSTALL FRONT TIRE LH

    Refer to INSTALLATION [11/2020 - ]

  41. FULLY TIGHTEN FRONT LOWER SUSPENSION ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  42. FULLY TIGHTEN LOWER NO. 2 SUSPENSION ARM ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  43. FULLY TIGHTEN FRONT STABILIZER LINK ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  44. FRONT SHOCK ABSORBER ASSEMBLY RH SHOCK ABSORBER ASSEMBLY FRONT RH
    1. Perform the same procedure as for the LH side.
  45. INSTALL FRONT TIRE RH
    1. Perform the same procedure as for the LH side.
  46. INSTALL REAR NO. 4 FLOOR BOARD SUB-ASSEMBLY
  47. INSTALL FRONT COMPARTMEMT UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 163

  48. INSTALL FRONT LOWER SUSPENSION MEMBER PROTECTOR

    Refer to PROCEDURE - Step 164

  49. INSTALL FRONT COMPARTMENT UNDER COVER
  50. INSTALL FC CONTROL ECU

    Refer to INSTALLATION [11/2020 - 12/2022]

  51. INSTALL AIR CLEANER WITH ELEMENT ASSEMBLY WITH AIR CLEANER INLET
  52. INSTALL RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 131

  53. INSTALL RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 132

  54. INSTALL UPPER RADIATOR SUPPORT SEAL
  55. INSTALL RADIATOR COVER PLATE
  56. INSTALL REAR FRAME SIDE RAIL LH

    Refer to PROCEDURE - Step 100

  57. INSTALL REAR FRAME SIDE RAIL RH

    Refer to PROCEDURE - Step 101

  58. INSTALL RADIATOR SUPPORT EXTENSION LH

    Refer to PROCEDURE - Step 102

  59. INSTALL RADIATOR SUPPORT EXTENSION RH

    Refer to PROCEDURE - Step 103

  60. INSTALL FRONT NO. 2 BUMPER REINFORCEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 104

  61. INSTALL FRONT BUMPER COVER
  62. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 8

  63. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    Refer to WORK PROCEDURE [11/2020 - 12/2022]

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [11/2020 - 11/2021] , or refer to AUTOMATIC LEARNING CHART [11/2021 - 12/2023]

  64. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT [11/2020 - ]

  65. CHECK FOR SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [11/2020 - ]

  66. PERFORM INITIALIZATION

    Refer to WORK PROCEDURE [11/2020 - 11/2021] , or refer to WORK PROCEDURE [11/2021 - 12/2022]
