Installation [11/2020 - ]: Procedure

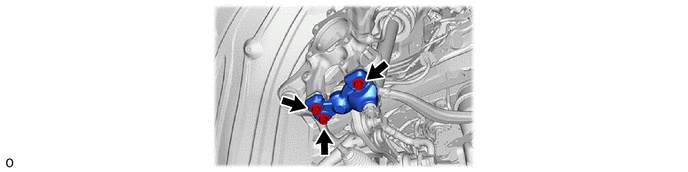

  1. TEMPORARILY INSTALL STEERING KNUCKLE LH
    1. GTY979851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT FRONT UPPER NO. 1 SUSPENSION ARM ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  3. CONNECT FRONT UPPER NO. 2 SUSPENSION ARM ASSEMBLY LH
    1. Perform the same procedure as for the front upper No. 1 suspension arm assembly LH.
  4. FULLY TIGHTEN STEERING KNUCKLE LH

    Torque: 112.7 N.m (1149 kgf/cm, 83 ft.lbf)

  5. CONNECT TIE ROD ASSEMBLY LH
    GTY993403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2 [11/2020 - 12/2022] , or refer to PROCEDURE - Step 2 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 2 [12/2023 - ]
  6. INSTALL FRONT FLEXIBLE HOSE BRACKET LH

    Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  7. INSTALL FRONT AXLE HUB SUB-ASSEMBLY LH

    Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - ]
