Installation [11/2020 - 12/2022]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

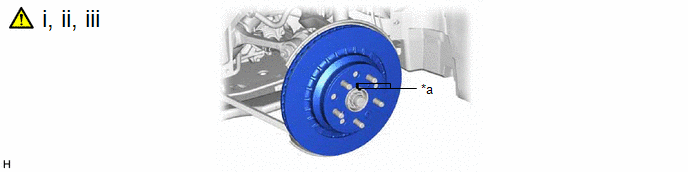

   Matchmark

   -

   -

   1. When reusing the rear disc LH:

      Align the matchmarks of the rear disc and rear axle hub and bearing assembly LH, and install the rear disc LH.

   2. When replacing the rear disc LH:

      Inspect the rear disc runout.

      See step  5

      NOTE:

      When replacing the rear disc with a new one, select the installation position where the rear disc has minimal runout.

   3. Temporarily install the 5 hub nuts.

Torque: 151 N*m (1540 kgf*cm, 111 ft.*lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

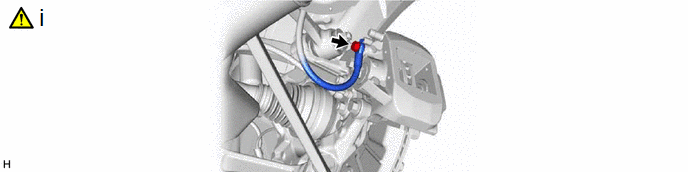

   1. Connect the rear flexible hose to the rear disc brake cylinder assembly LH with a new union bolt and a new gasket.

      Torque: 39.2 N*m (400 kgf*cm, 29 ft.*lbf)

      NOTE:

      Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly LH.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

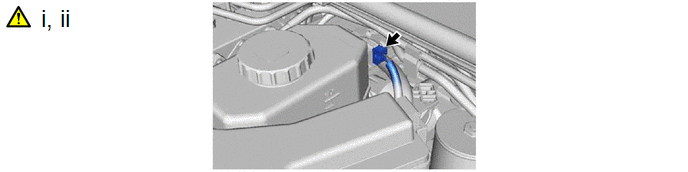

   1. Connect the reservoir level switch connector.
   2. Connect the cable to the negative (-) auxiliary battery terminal.

      Refer to INSTALLATION [11/2020 - 12/2022]

   3. Perform the following procedure if air bleeding is not necessary:

      1. Turn the ignition switch to ON (READY).

      2. Depress the brake pedal and release it.

      3. Clear the DTCs.

Refer to BLEEDING [11/2020 - ]

Refer to ADJUSTMENT [11/2020 - ]

Refer to INSTALLATION [11/2020 - ]

Refer to WORK PROCEDURE [11/2020 - 12/2022]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2020 - 11/2021] , or refer to AUTOMATIC LEARNING CHART [11/2021 - 12/2023]

Refer to UTILITY [11/2020 - ]
