Removal [11/2020 - 11/2021]: Procedure

  1. DISABLE BRAKE CONTROL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2
  2. REMOVE FRONT COMPARTMENT UNDER COVER

    Refer to PROCEDURE - Step 18

  3. REMOVE FRONT LOWER SUSPENSION MEMBER PROTECTOR

    Refer to PROCEDURE - Step 19

  4. REMOVE FRONT COMPARTMEMT UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 20

  5. REMOVE FRONT TIRE

    Refer to REMOVAL [11/2020 - 12/2023]

  6. DISCONNECT FRONT SKID CONTROL SENSOR WIRE LH

    Refer to PROCEDURE - Step 4

  7. DISCONNECT DISC BRAKE CYLINDER ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  8. REMOVE FRONT DISC
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 10
  9. REMOVE FRONT DISC BRAKE DUST COVER LH

    Refer to PROCEDURE - Step 7

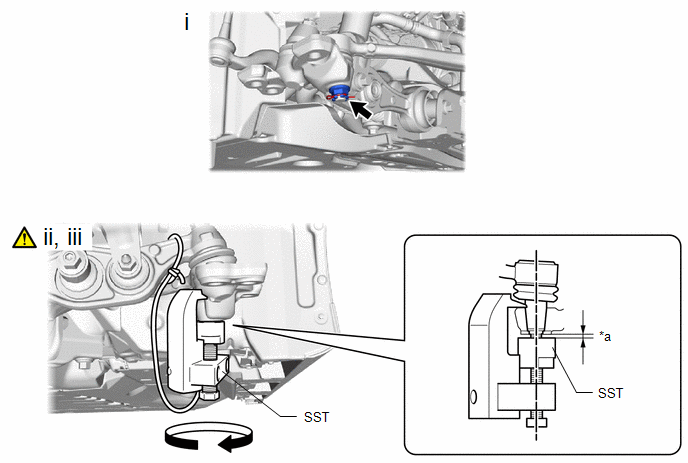

  10. DISCONNECT LOWER NO. 2 SUSPENSION ARM ASSEMBLY LH
    1. GTY980810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 2 mm (0.0787 in.) - -
      1. Remove the clip and nut.
      2. Install SST (attachment) onto the lower No. 2 suspension arm assembly LH so that there is a space of approximately 2 mm (0.0787 in.) between the arm and attachment.
        • SST: 09628-50010
          1. 09628-05010
        NOTE:
        • Be sure to install SST (attachment) in order to prevent damage to the lower No. 2 suspension arm assembly LH stud.
        • As SST may become damaged, make sure the space between the arm and spacers is not 2 mm (0.0787 in.) or less.
      3. Using SST, disconnect the lower No. 2 suspension arm assembly LH from the front lower ball joint assembly LH.
        • SST: 09628-50010
          1. 09628-05010
        NOTE:
        • Apply molybdenum grease to the bolt threads and end of the SST bolt.
        • Do not damage the dust cover of the lower No. 2 suspension arm assembly LH.
        • Make sure that the bolt of SST and the lower No. 2 suspension arm assembly LH ball are in a straight line when installing SST.
        • Be sure to tie the string of SST to the vehicle to prevent SST from dropping.
        • Do not apply a torque of 160 N.m (1631 kgf/cm, 118 ft.lbf) or more to SST as it may be damaged.

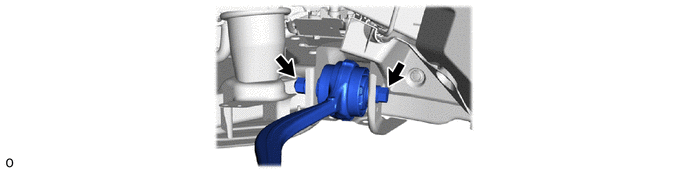

  11. REMOVE LOWER NO. 2 SUSPENSION ARM ASSEMBLY LH
    1. GTY980122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. DISCONNECT TIE ROD ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 10
  13. DISCONNECT STEERING KNUCKLE LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  2
  14. REMOVE STEERING KNUCKLE LH
    1. GTY979851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FRONT LOWER BALL JOINT ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  16. REMOVE FRONT STABILIZER LINK ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  17. DISCONNECT FRONT SHOCK ABSORBER ASSEMBLY LH
    1. GTY979846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and nut, and separate the front shock absorber assembly LH from the lower suspension arm assembly LH.
        NOTE:

        Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

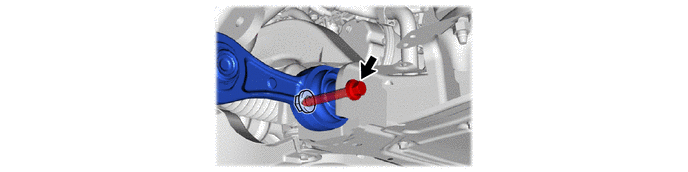

  18. REMOVE FRONT LOWER SUSPENSION ARM ASSEMBLY LH
    1. GTY981151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
