Removal [11/2020 - 11/2021]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
- DISABLE BRAKE CONTROL
Refer to PROCEDURE - Step 2 - REMOVE FRONT WHEEL
Refer to REMOVAL [11/2020 - 12/2023]

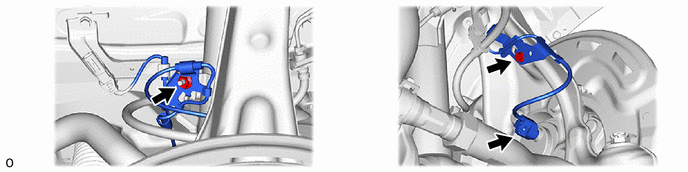

- DISCONNECT FRONT SKID CONTROL SENSOR WIRE LH
- DISCONNECT DISC BRAKE CYLINDER ASSEMBLY LH

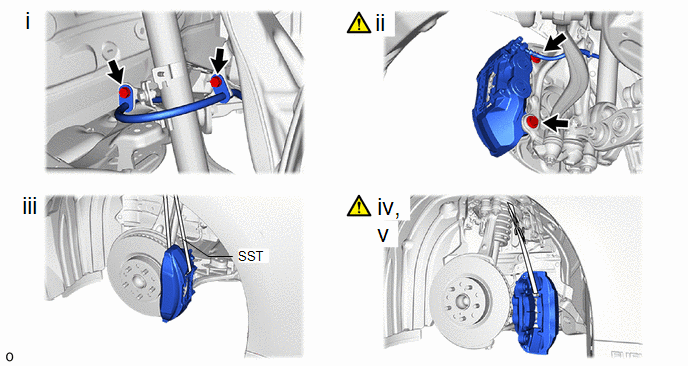

- Remove the 2 bolts and disconnect the No. 2 front flexible hose from the front flexible hose bracket LH and No. 2 front flexible hose bracket LH.
- Loosen the bolts on the lower side of the disc brake cylinder assembly LH and remove the bolts on the top side.NOTE:
Do not excessively loosen the bolts on the lower side of the disc brake cylinder assembly LH.
- Tilt the disc brake cylinder assembly LH and install SST as shown in the illustration.
- SST: 09727-00110
- Install SST to the front upper No. 2 suspension arm assembly LH.NOTE:
The front upper No. 2 suspension arm assembly LH may become damaged if the metal part of SST contacts it. Therefore, install it so that the metal part does not contact the front upper No. 2 suspension arm assembly LH.
- Remove the bolt on the lower side of the disc brake cylinder assembly LH and disconnect it.NOTE:
- Do not apply excessive force to the flexible hose.
- If there is no looseness in the flexible hose, adjust the length of SST.
- REMOVE FRONT DISC

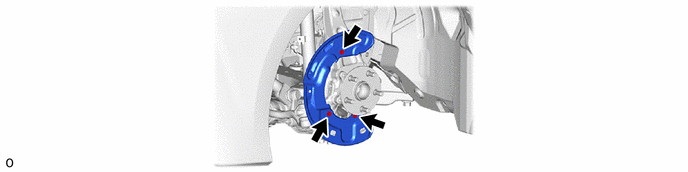

Refer to PROCEDURE - Step 10 - REMOVE FRONT DISC BRAKE DUST COVER LH

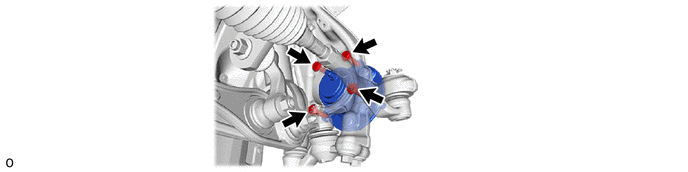

- REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH

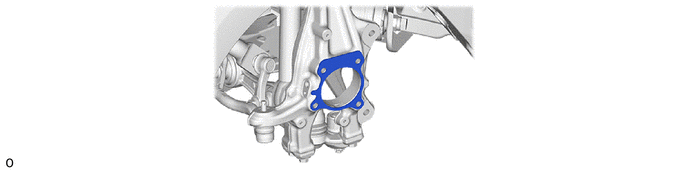

- REMOVE DISC BRAKE AIR GUIDE PLATE
