Removal [11/2020 - 11/2021]: Procedure

Refer to REMOVAL [11/2020 - 12/2023]

Refer to PROCEDURE - Step 18

Refer to PROCEDURE - Step 19

Refer to PROCEDURE - Step 20

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

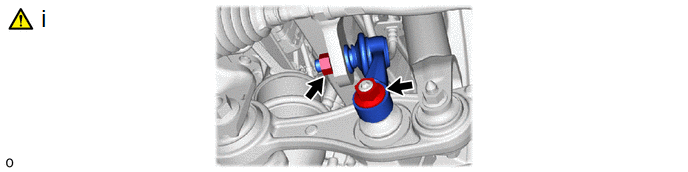

   1. Remove the 2 nuts and front stabilizer link assembly LH.

      HINT:

      If the ball joint turns together with the nut, use a 8 mm hexagon wrench to hold the stud bolt.

1. Perform the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

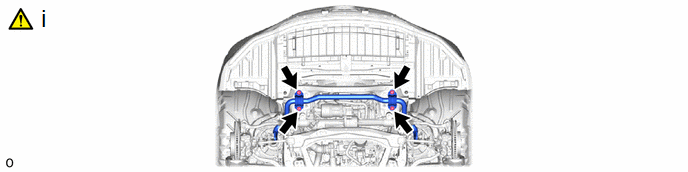

   1. Remove the 4 bolts and front stabilizer bar.

      HINT:

      • The stabilizer bracket and bush are built onto the stabilizer bar.
      • If the bracket and/or bush detach from the bar, replace the bar.
