Home >> Toyota >> 2021 >> Mirai XLE >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Door / Hatch - Service Information (3 Of 3) >> Luggage Compartment Door >> Disassembly [11/2020 - 12/2022] >> Procedure

Disassembly [11/2020 - 12/2022]: Procedure

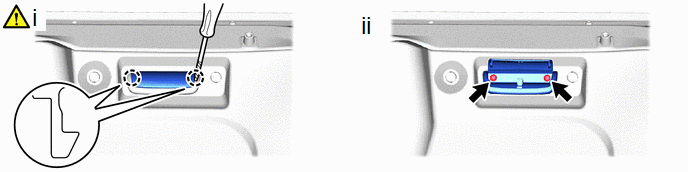

  1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
    1. GTY1018367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws to open the cover.
      2. Remove the 2 screws and luggage compartment door assist grip.

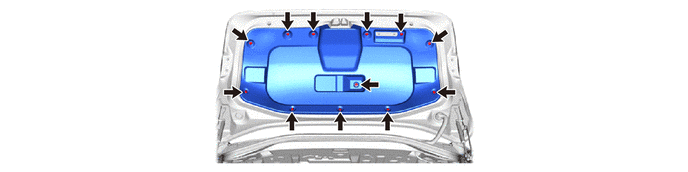

  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER
    1. GTY1017955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE LUGGAGE DOOR CLOSER ASSEMBLY (w/ Easy Closer)

    Refer to PROCEDURE - Step 3

  4. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (w/o Easy Closer)

    Refer to PROCEDURE - Step 4

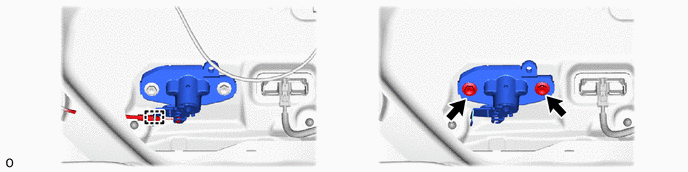

  5. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
    1. GTY1016601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

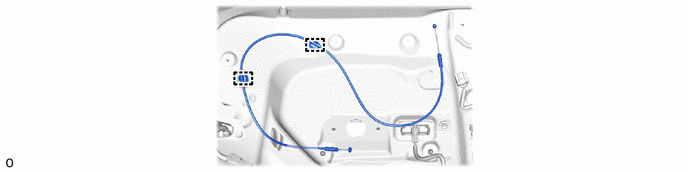

  6. REMOVE LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY
    1. GTY1016602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  8. REMOVE REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  9. REMOVE REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure for both the RH and LH sides.

  10. REMOVE LICENSE PLATE LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  11. REMOVE TELEVISION AND INNER REAR VIEW MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 3

  12. REMOVE REAR TELEVISION CAMERA ASSEMBLY (w/o Digital Inner Mirror)

    Refer to PROCEDURE - Step 2

  13. REMOVE LUGGAGE ELECTRICAL KEY SWITCH

    See step  4

  14. REMOVE LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY

    See step  1

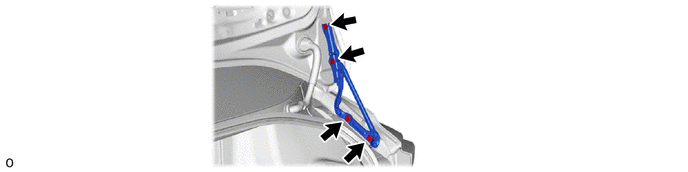

  15. REMOVE LUGGAGE COMPARTMENT DOOR HINGE ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Remove the luggage compartment door hinge assembly LH while supporting the luggage door by hand.
    1. GTY1017653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE LUGGAGE COMPARTMENT DOOR HINGE ASSEMBLY RH

    HINT:

    Use the same procedure for both the RH and LH sides.

  17. REMOVE LUGGAGE COMPARTMENT DOOR CUSHION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Use the same procedure for the opposite side.
    1. GTY1016604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the claws and remove the luggage compartment door cushion.
