Removal [11/2020 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

    Refer to PROCEDURE - Step 1 [11/2020 - 12/2022] , or refer to PROCEDURE - Step 1 [12/2022 - ]

  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 2 [11/2020 - 12/2022] , or refer to PROCEDURE - Step 2 [12/2022 - ]

  3. REMOVE LUGGAGE DOOR CLOSER ASSEMBLY (w/ Easy Closer)

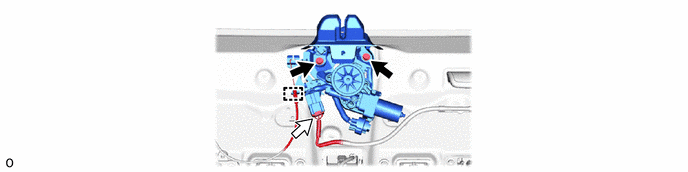

    1. GTY1016938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Connector
  4. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (w/o Easy Closer)

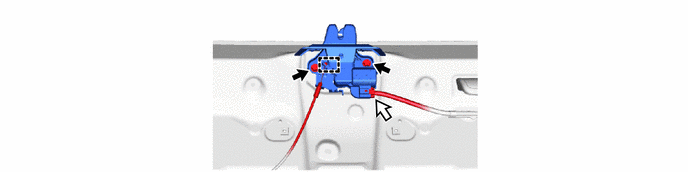

    1. GTY1017552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Connector
