Removal [11/2020 - 12/2022]: Procedure

REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
Refer to REMOVAL [11/2020 - ]

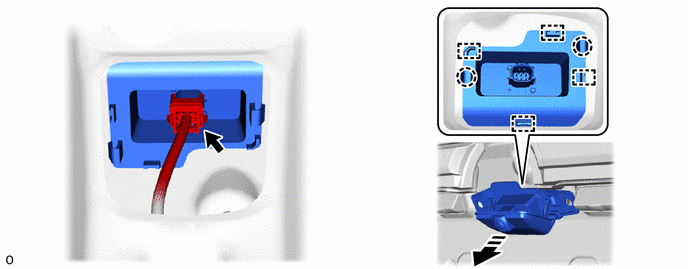

REMOVE REAR TELEVISION CAMERA ASSEMBLY (w/o Digital Inner Mirror)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If the rear television camera assembly has removed, replace the television camera seal with a new one.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

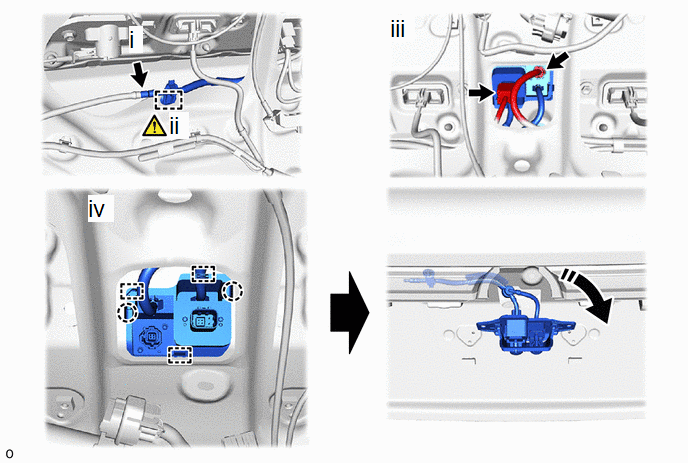

REMOVE TELEVISION AND INNER REAR VIEW MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If the television and inner rear view mirror camera assembly has removed, replace the television camera seal with a new one.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Disconnect the camera cleaner hose.
Using clip remover, detach the clamp.
Disconnect the 2 connectors.
Detach the claw and guide and remove the television and inner rear view mirror camera assembly the direction of the arrow shown in the illustration.

REMOVE REAR WASHER (FROM JOINT TO NOZZLE) HOSE (w/ Digital Inner Mirror)
Refer to PROCEDURE - Step 3

REMOVE TELEVISION CAMERA SEAL

NOTE:

The television camera seal must not be reused.

REMOVE INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY (w/ Digital Inner Mirror)
Refer to PROCEDURE - Step 6
REMOVE NO. 2 CAMERA CLEANER NOZZLE ASSEMBLY (w/ Digital Inner Mirror)
Refer to PROCEDURE - Step 7
