Removal [11/2020 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [11/2020 - ]

  2. REMOVE REAR LIGHT ASSEMBLY LH

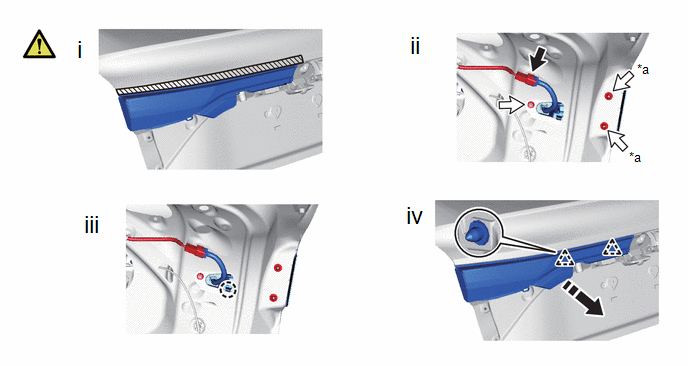

    1. GTY993045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Connector
      Nut - -
      *a Cap nut - -
      1. Apply protective tape as shown in the illustration.
      2. Remove the 3 nuts and disconnect the connector.
      3. Detach the clamp.
      4. Detach the clip and remove the rear light assembly LH in the removal direction as shown in the illustration.
