Removal [11/2020 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 4 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 4 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 4 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 4 [12/2023 - ]

  3. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 5 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 5 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 5 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 5 [12/2023 - ]

  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 6 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 6 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 6 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 6 [12/2023 - ]

  5. REMOVE FRONT DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 10 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 10 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 10 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 10 [12/2023 - ]

  6. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 11 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 11 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 11 [12/2023 - ]

  7. REMOVE NO. 2 INSTRUMENT SIDE PANEL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 12 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 12 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 12 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 12 [12/2023 - ]
  8. REMOVE LOWER INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 9 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 9 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 9 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 9 [12/2023 - ]

  9. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 26 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 26 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 26 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 25 [12/2023 - ]

  10. REMOVE LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY

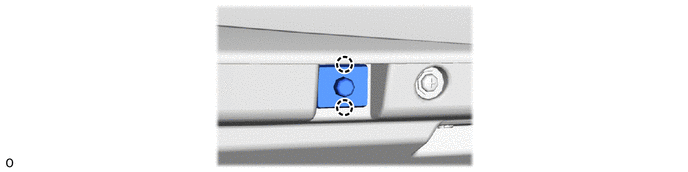

    1. GTY1016587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
