Removal [11/2021 - 12/2022]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [11/2020 - 12/2022]

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - 12/2022]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to WORK PROCEDURE [11/2020 - 12/2022]

    Refer to REMOVAL [11/2021 - 12/2022]

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1

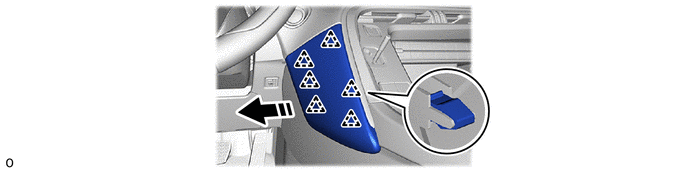

  4. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH
    1. GTY1016685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

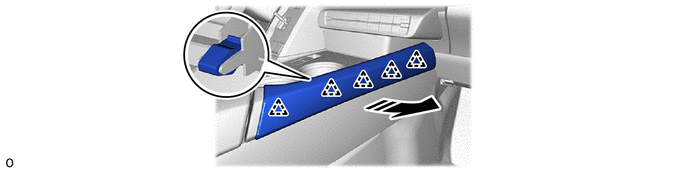

  5. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH
    1. GTY1017223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

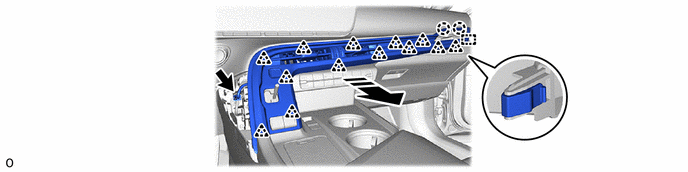

  6. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
    1. GTY1017669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

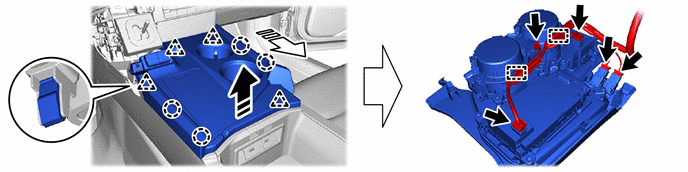

  7. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    HINT:

    The illustrations are representative examples, and details may differ.

    1. GTY1017117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)

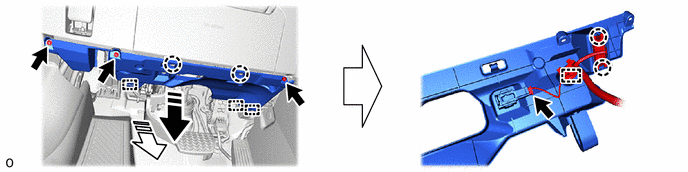

  8. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. GTY1016634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)

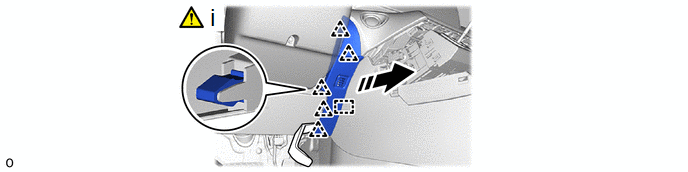

  9. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
    1. GTY1016996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using moulding remover A, detach the clip as shown in the illustration and remove the lower instrument panel finish panel sub-assembly LH.

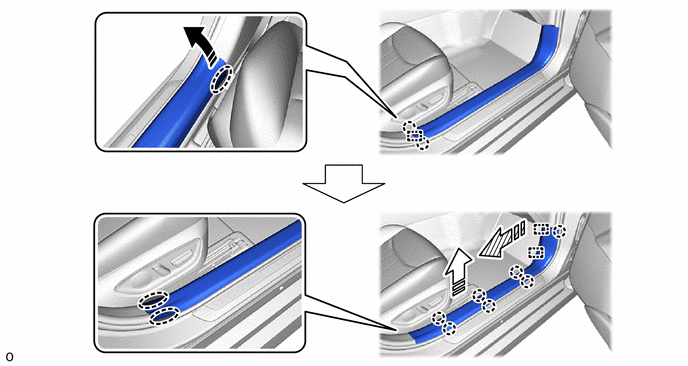

  10. REMOVE FRONT DOOR SCUFF PLATE RH
    1. GTY1016443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) Remove in this Direction (3)

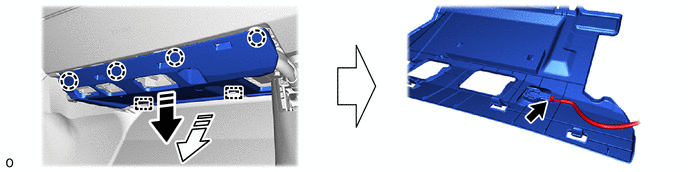

  11. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. GTY1017037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)

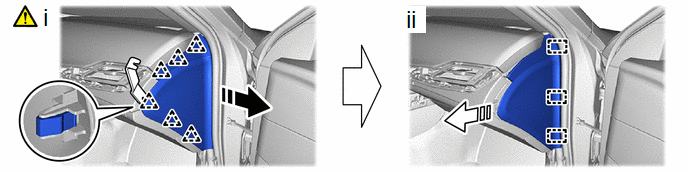

  12. REMOVE NO. 2 INSTRUMENT SIDE PANEL
    1. GTY1017515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      1. Using moulding remover B, detach the clip in the removal direction (1) as shown in the illustration.
      2. Detach the guide in the removal direction (2) as shown in the illustration and remove the No. 2 instrument side panel.
  13. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7

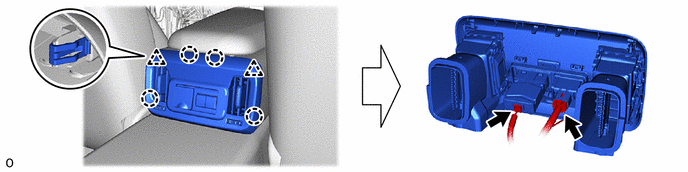

  14. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
    1. GTY1015605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

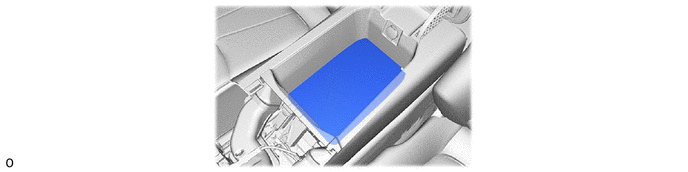

  15. REMOVE CONSOLE BOX CARPET
    1. GTY1016921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

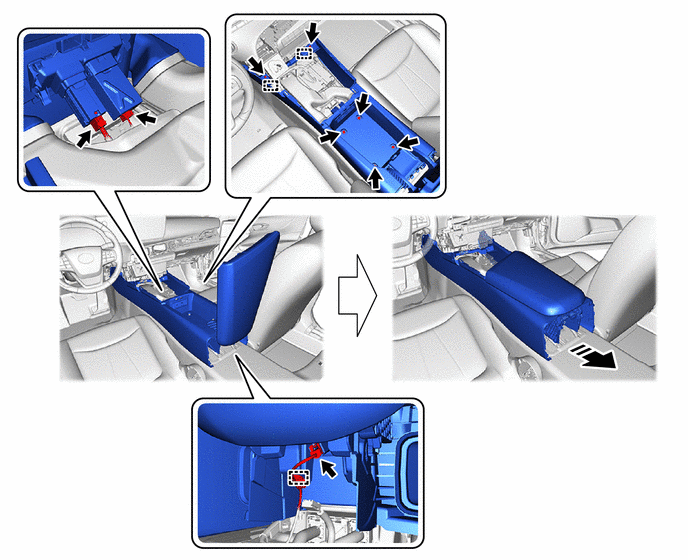

  16. REMOVE CONSOLE BOX ASSEMBLY
    1. GTY1017642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
