Reassembly [08/2015 - 08/2016]: Procedure

  1. INSTALL STUD BOLT
    GTY128342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the timing chain cover stud bolt.
      1. Using an E10 "TORX" socket wrench, install the 2 stud bolts as shown in the illustration.

        Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

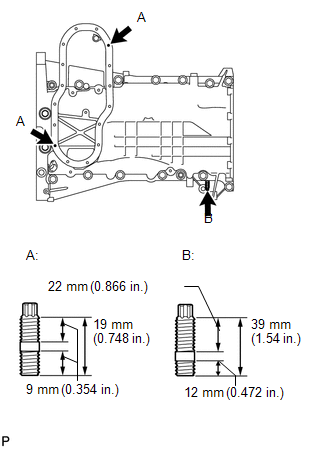

    2. GTY124648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the oil pan stud bolt.

      1. Using an E6 and E7 "TORX" socket wrench, install the 3 stud bolts as shown in the illustration.

        for stud bolt A

        Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

        for stud bolt B

        Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  2. INSTALL RING PIN
    GTY147763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a plastic-faced hammer, tap in new ring pins to the timing chain cover.

      Standard Protrusion

      Item Ring Pin Diameter Specified Condition
      Ring pin A 13 mm (0.512 in.) 7.5 to 8.5 mm (0.295 to 0.335 in.)
      Ring pin B 11 mm (0.433 in.) 3.6 to 4.6 mm (0.142 to 0.181 in.)
  3. INSTALL REAR CRANKSHAFT OIL SEAL
    1. GTY141574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using SST, tap in a new oil seal until its surface is flush with the oil seal retainer edge.

      • SST: 09223-15030
      • SST: 09950-70010
        1. 09951-07100

      Standard depth

      0 to 1.0 mm (0 to 0.0394 in.)

      NOTE:
      • Keep the lip free from foreign matter.
      • Do not tap on the oil seal at an angle.
  4. INSTALL OIL DRAIN PIPE SUBASSEMBLY
    GTY505935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply a light coat of engine oil to a new O-ring.
    2. Install the O-ring to the drain pipe.
    3. Install the oil drain pipe with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  5. INSTALL ENGINE REAR OIL SEAL RETAINER
    GTY538885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply seal packing in a continuous line as shown in the illustration.

      Seal packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      Standard Seal diameter

      2.0 to 3.0 mm (0.0787 to 0.118 in.)

      Application position from inside edge of retainer

      3.5 mm (0.138 in.)

      NOTE:
      • Remove any oil from the contact surface.
      • Install the oil seal retainer within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.
    2. GTY496704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the oil seal retainer with the 6 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:
      • Do not start the engine for at least 2 hours after installing.
      • When installing the oil seal retainer, make sure the lip of the oil seal is not damaged.
      • When installing the oil seal retainer, make sure the lip of the oil seal is not folded incorrectly.
  6. INSTALL OIL STRAINER SUBASSEMBLY
    GTY611536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply a light coat of engine oil to a new O-ring.
    2. Install the O-ring to the oil strainer.
    3. Install the oil strainer with the 2 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      NOTE:

      Make sure the O-ring is not twisted or damaged.

  7. INSTALL NO. 1 OIL PAN BAFFLE PLATE
    GTY610806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the baffle plate with the 7 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  8. INSTALL NO. 1 OIL PAN SUBASSEMBLY
    GTY583832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply seal packing in a continuous line as shown in the illustration.

      Seal packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      Standard seal diameter

      3.0 to 4.0 mm (0.118 to 0.157 in.)

      NOTE:
      • Remove any oil from the contact surface.
      • Install the oil pan within 3 minutes and tighten the bolts and nuts within 15 minutes after applying seal packing.

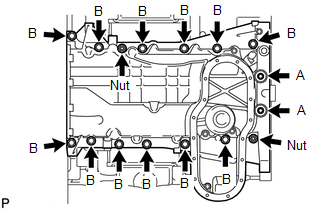

    2. GTY589027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the oil pan with the 14 bolts and 2 nuts.

      for bolt A

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      for bolt B

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

      for nut

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

      NOTE:

      Do not start the engine for at least 2 hours after installing.

      Standard Bolt

      Item Length Thread Diameter
      Bolt A 92 mm (3.62 in.) 6 mm (0.236 in.)
      Bolt B 30 mm (1.18 in.) 10 mm (0.394 in.)
  9. INSTALL NO. 2 OIL PAN SUBASSEMBLY
    GTY121083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply seal packing in a continuous line as shown in the illustration.

      Seal packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      Standard seal diameter

      3.0 to 4.0 mm (0.118 to 0.157 in.)

      NOTE:
      • Remove any oil from the contact surface.
      • Install the oil pan within 3 minutes and tighten the bolts and nuts within 15 minutes after applying seal packing.
    2. GTY607913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the oil pan with the 14 bolts and 2 nuts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Do not start the engine for at least 2 hours after installing.

  10. INSTALL NO. 1 HEAT EXCHANGER COVER
    GTY137806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply seal packing in a continuous line as shown in the illustration.

      Seal packing

      Toyota Genuine Seal Packing 1282B, Three Bond 1282B or equivalent

      Standard seal diameter

      3.0 to 4.0 mm (0.118 to 0.157 in.)

      NOTE:
      • Remove any oil from the contact surface.
      • Install the heat exchanger cover within 3 minutes and tighten the bolts and nuts within 15 minutes after applying seal packing.
    2. GTY599718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the heat exchanger cover with the 12 bolts and 2 nuts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      NOTE:

      Do not start the engine for at least 2 hours after installing.

      Standard Bolt

      Item Length Thread Diameter
      Bolt A 20 mm (0.787 in.) 8 mm (0.315 in.)
      Bolt B 70 mm (2.76 in.) 8 mm (0.315 in.)
      Bolt C 16 mm (0.630 in.) 6 mm (0.236 in.)
  11. INSTALL VENTILATION PIPE GASKET
    GTY603536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST, evenly tap in a new ventilation pipe gasket until its surface is flush with the lip of the ventilation pipe.
      • SST: 09950-60010
        1. 09951-00360
      • SST: 09950-70010
        1. 09951-07100
      NOTE:
      • Do not tap the gasket at an angle.
      • Do not tap the gasket excessively.
  12. INSTALL CYLINDER BLOCK WATER JACKET SPACER
    GTY125484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the 2 water jacket spacers as shown in the illustration.

      HINT:

      • Face the cutouts indicated by the arrows in illustration away from the engine.
      • Face the "UP" mark as shown in the illustration.
  13. INSTALL CYLINDER HEAD SUBASSEMBLY RH

    See step  3

  14. INSTALL CYLINDER HEAD SUBASSEMBLY LH

    See step  4

  15. INSTALL VALVE STEM CAP
    1. Apply a light coat of engine oil to the valve stem caps.
    2. Install the 32 valve stem caps to the cylinder heads.
  16. INSTALL VALVE LASH ADJUSTER ASSEMBLY
    1. Inspect the valve lash adjuster before installing it (See step  3).
    2. Install the 32 valve lash adjusters to the cylinder heads.
      NOTE:

      Install the lash adjuster to the same place it was removed from.

  17. INSTALL NO. 1 VALVE ROCKER ARM SUBASSEMBLY
    1. Apply engine oil to the lash adjuster tips and valve stem cap ends.
    2. GTY596708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the 32 valve rocker arms as shown in the illustration.

  18. INSTALL CAMSHAFT BEARING CAP RH

    See step  1

  19. INSTALL CAMSHAFT HOUSING SUBASSEMBLY RH

    See step  2

  20. INSTALL CAMSHAFT BEARING CAP LH

    See step  3

  21. INSTALL CAMSHAFT HOUSING SUBASSEMBLY LH

    See step  4

  22. INSTALL CRANKSHAFT TIMING GEAR KEY
    GTY147911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the timing gear key.

      HINT:

      The other timing gear key will be installed at a later step.

  23. SET NO. 1 CYLINDER TO TDC/COMPRESSION
    1. Temporarily install the crankshaft pulley bolt.
    2. Rotate the crankshaft so that the timing gear key is as shown in the illustration. Then using a wrench, rotate each camshaft so that the timing marks are as shown in the illustration.
      NOTE:

      When the crankshaft or a camshaft is rotated excessively, the valves and pistons may interfere with each other.

    3. Remove the crankshaft pulley bolt.

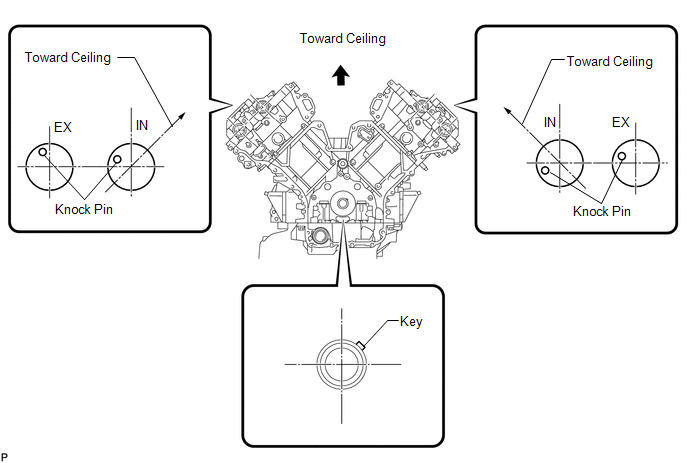

      GTY130289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL NO. 2 CHAIN TENSIONER ASSEMBLY
    GTY568116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the chain tensioner with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. While raising up the No. 2 chain tensioner, insert a pin of 1.0 mm (0.0394 in.) into the hole to fix it in place.
  25. INSTALL NO. 1 CHAIN SUBASSEMBLY RH

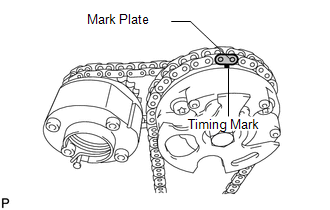

    GTY571384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Align the No. 1 chain orange mark plate with the camshaft timing gear timing mark, and attach the chain to the gear as shown in the illustration.
    2. GTY608184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Align the No. 1 chain orange mark plate with the crankshaft timing sprocket timing mark, and attach the chain to the gear as shown in the illustration.

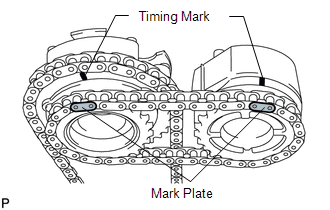

    3. GTY600352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Align the No. 2 chain yellow mark plates with the timing marks of the camshaft timing gear assembly and camshaft timing exhaust gear assembly, and attach the No. 2 chain to the gears as shown in the illustration.

      NOTE:

      The camshaft timing exhaust gear has 2 grooves. Align the mark plates of the No. 2 chain with the first groove.

      HINT:

      The crankshaft timing sprocket RH and camshaft timing exhaust gear will be installed with the No. 1 and No. 2 chains connected to the gears.

    4. Install the crankshaft timing sprocket RH to the crankshaft.
    5. Align and attach the knock pin of the No. 1 camshaft with the pin hole of the camshaft timing gear.
    6. Using the hexagonal portion of the No. 2 camshaft, align and attach the knock pin of the No. 2 camshaft with the pin hole of the camshaft timing exhaust gear.
    7. Remove the pin from the No. 2 chain tensioner.
    8. Using a wrench to hold the hexagonal portion of the No. 1 camshaft, temporarily install the bolt.
    9. Using a wrench to hold the hexagonal portion of the No. 2 camshaft, temporarily install the bolt.
  26. INSTALL NO. 1 CHAIN VIBRATION DAMPER RH
    GTY611038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the vibration damper with the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  27. INSTALL NO. 1 CHAIN TENSIONER SLIPPER RH
    GTY584110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    If you cannot install the chain tensioner slipper due to the tension of the chain, use the hexagonal portion of the camshaft to loosen the chain, and then install the chain tensioner slipper.

  28. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY RH
    GTY587421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Move the stopper plate clockwise to release the lock, and push the plunger deep into the tensioner.
    2. Move the stopper plate counterclockwise to set the lock, and insert a hexagon wrench into the hole of the stopper plate.
    3. GTY585934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the chain tensioner with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    4. Remove the hexagon wrench from the chain tensioner.
  29. INSTALL NO. 3 CHAIN TENSIONER ASSEMBLY
    GTY561749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the chain tensioner with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. While pushing down the No. 2 chain tensioner, insert a pin of 1.0 mm (0.0394 in.) into the hole to fix it in place.
  30. INSTALL NO. 1 CHAIN SUBASSEMBLY LH

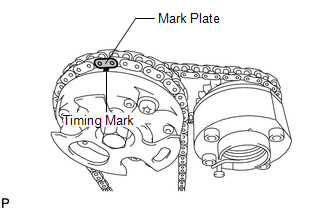

    GTY578901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Align the No. 1 chain orange mark plate with the camshaft timing gear timing mark, and attach the chain to the gear as shown in the illustration.
    2. GTY546543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Align the No. 1 chain orange mark plate with the crankshaft timing sprocket timing mark, and attach the chain to the gear as shown in the illustration.

    3. GTY601846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Align the No. 2 chain yellow mark plates with the timing marks of the camshaft timing gear assembly and camshaft timing exhaust gear assembly, and attach the No. 2 chain to the gears as shown in the illustration.

      NOTE:

      The camshaft timing exhaust gear has 2 grooves. Align the mark plates of the No. 2 chain with the first groove.

      HINT:

      The crankshaft timing sprocket LH and camshaft timing exhaust gear will be installed with the No. 1 and No. 2 chains connected to the gears.

    4. Install the crankshaft timing sprocket LH to the crankshaft.
    5. Align and attach the knock pin of the No. 3 camshaft with the pin hole of the camshaft timing gear.
    6. Using the hexagonal portion of the No. 4 camshaft, align and attach the knock pin of the No. 4 camshaft with the pin hole of the camshaft timing exhaust gear.
      NOTE:

      Because the timing mark positions of the gears may shift due to looseness of the No. 1 chain, use the hexagonal portion of the camshaft to hold the No. 3 camshaft in place until the No. 1 chain tensioner is installed.

    7. Remove the pin from the No. 3 chain tensioner.
    8. Using a wrench to hold the hexagonal portion of the No. 3 camshaft, temporarily install the bolt.
    9. Using a wrench to hold the hexagonal portion of the No. 4 camshaft, temporarily install the bolt.
  31. INSTALL NO. 1 CHAIN TENSIONER SLIPPER LH
    GTY148636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    If you cannot install the chain tensioner slipper due to the tension of the chain, use the hexagonal portion of the camshaft to loosen the chain, and install the chain tensioner slipper.

  32. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY LH
    GTY100671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Move the stopper plate clockwise to release the lock, and push the plunger deep into the tensioner.
    2. Move the stopper plate counterclockwise to set the lock, and insert a hexagon wrench into the hole of the stopper plate.
    3. GTY580687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install a new gasket and the chain tensioner with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  33. INSTALL NO. 1 CHAIN VIBRATION DAMPER LH
    GTY121343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the vibration damper with the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. Remove the hexagon wrench from the No. 1 chain tensioner.
  34. TIGHTEN CAMSHAFT TIMING GEAR
    1. GTY591982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for Bank 1:

      1. Using a wrench, hold the hexagonal portion of the No. 3 camshaft.
      2. Tighten the bolt of the camshaft timing gear.

        Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

      3. GTY608325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Using a wrench to hold the hexagonal portion of the No. 4 camshaft, tighten the bolt of the camshaft timing exhaust gear.

        Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

    2. GTY545335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for Bank 2:

      1. Using a wrench, hold the hexagonal portion of the No. 1 camshaft.
      2. Tighten the bolt of the camshaft timing gear.

        Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

      3. GTY597567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Using a wrench to hold the hexagonal portion of the No. 2 camshaft, tighten the bolt of the camshaft timing exhaust gear.

        Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

  35. CHECK NO. 1 CYLINDER TO TDC/COMPRESSION
    1. Temporarily install the crankshaft pulley bolt.
    2. Rotate the crankshaft clockwise, and check that the timing marks on the crankshaft timing sprocket and camshaft timing gears are as shown in the illustration.
    3. Remove the crankshaft pulley bolt.
      GTY605296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL WATER INLET PIPE

    Refer to PROCEDURE - Step 1

  37. INSTALL TIMING CHAIN COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 2

  38. INSTALL WATER PUMP ASSEMBLY

    Refer to PROCEDURE - Step 1

  39. INSTALL FRONT CRANKSHAFT OIL SEAL
    1. GTY551053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Apply MP grease to the lip of a new oil seal.

    2. Using SST and a hammer, tap in the oil seal to a depth between 0 and 1.0 mm (0 and 0.0394 in.) from the timing chain cover edge.
      • SST: 09223-22010
      • SST: 09506-35010
      NOTE:
      • Keep the lip free from foreign matter.
      • Do not tap the oil seal at an angle.
  40. INSTALL CRANKSHAFT TIMING GEAR KEY
    1. GTY587387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the crankshaft timing gear key to the crankshaft.

  41. INSTALL CRANKSHAFT PULLEY

    Refer to PROCEDURE - Step 9

  42. INSTALL SPARK PLUG TUBE GASKET
    GTY549823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a cutter knife, cut off the seal part of the removed gasket.
    2. GTY565564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using the removed gasket and a hammer, tap in a new gasket until it stops.

      HINT:

      If the removed gasket does not fit on the new one, correct the removed one with pliers.

    3. Apply a light coat of MP grease to the lip of the gasket.
    4. Return the 4 ventilation baffle plate claws to the original positions.
  43. INSTALL OIL CONTROL VALVE FILTER
    GTY541374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. LH:
      1. Install the filter in the cylinder head.
      2. Install a new gasket and the cylinder head cover spacer with the 3 bolts.

        Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. GTY546615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      RH:

      1. Install the filter in the cylinder head.
      2. Install a new gasket and the cylinder head cover spacer with the 3 bolts.

        Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  44. INSTALL CYLINDER HEAD COVER SUBASSEMBLY RH

    Refer to PROCEDURE - Step 5

  45. INSTALL CYLINDER HEAD COVER SUBASSEMBLY LH

    Refer to PROCEDURE - Step 4

  46. INSTALL NO. 1 IDLER PULLEY SUBASSEMBLY

    Refer to PROCEDURE - Step 10

  47. INSTALL WATER PUMP PULLEY

    Refer to PROCEDURE - Step 2

  48. INSTALL CAMSHAFT OIL CONTROL VALVE ASSEMBLY
    1. GTY573388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for Bank 1:

      1. Apply a light coat of engine oil to 2 new O-rings.
      2. Install the 2 O-rings to the 2 oil control valves.
      3. Install the 2 oil control valves with the 2 bolts.

        Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. GTY611018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for Bank 2:

      1. Apply a light coat of engine oil to 2 new O-rings.
      2. Install the 2 O-rings to the 2 oil control valves.
      3. Install the 2 oil control valves with the 2 bolts.

        Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  49. INSTALL ENGINE OIL LEVEL SENSOR

    Refer to PROCEDURE - Step 1

  50. INSTALL CRANKSHAFT POSITION SENSOR
    GTY605282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the crankshaft position sensor with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  51. INSTALL CRANK POSITION SENSOR PROTECTOR
    GTY573389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the sensor protector with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  52. INSTALL CAMSHAFT POSITION SENSOR
    GTY611673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the camshaft position sensor with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  53. INSTALL VVT SENSOR
    1. GTY611128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for Bank 1:

      1. Install the 2 VVT sensors with the 2 bolts.

        Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. GTY611395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for Bank 2:

      1. Install the 2 VVT sensors with the 2 bolts.

        Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  54. INSTALL SPARK PLUG
    1. Using a 16 mm plug wrench, install the 8 spark plugs.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  55. INSTALL OIL FILLER CAP HOUSING
    1. GTY147790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Align the protrusion of a new gasket with the cutout of the oil filler cap housing, and install the gasket to the housing.

    2. GTY573387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the cap housing with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  56. INSTALL OIL FILLER CAP SUBASSEMBLY
  57. INSTALL OIL FILTER BRACKET (w/o Oil Cooler)

    Refer to PROCEDURE - Step 23

  58. INSTALL OIL FILTER BRACKET (w/ Oil Cooler)

    Refer to PROCEDURE - Step 3

  59. INSTALL NO. 1 OIL COOLER BRACKET (w/ Oil Cooler)

    Refer to PROCEDURE - Step 4

  60. INSTALL OIL FILTER ELEMENT

    Refer to PROCEDURE - Step 5

  61. INSTALL OIL PRESSURE SENDER GAUGE ASSEMBLY

    Refer to PROCEDURE - Step 1

scientia non olet · About LEMON Manuals
