Removal [08/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  3. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY LH

    Refer to PROCEDURE - Step 1

  4. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY RH

    Refer to PROCEDURE - Step 2

  5. REMOVE NO. 1 ENGINE UNDER COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 17

  6. DRAIN ENGINE OIL

    See step  1

  7. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 4

  8. REMOVE V-BANK COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 22

  9. REMOVE FAN & GENERATOR V BELT

    Refer to PROCEDURE - Step 5

  10. REMOVE OIL FILTER ELEMENT

    See step  4

  11. REMOVE OIL PRESSURE SENDER GAUGE ASSEMBLY

    See step  4

  12. DISCONNECT COOLER COMPRESSOR ASSEMBLY

    See step  9

  13. REMOVE NO. 2 WATER BY-PASS PIPE SUBASSEMBLY

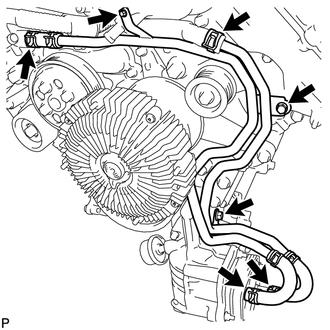

    1. GTY611522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 bolts.

    2. Disconnect the 4 hoses and remove the water by-pass pipe.
  14. REMOVE NO. 1 OIL COOLER BRACKET
    1. GTY593094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 nuts and bracket.

    2. Disconnect the ground wire from the cylinder block.
  15. REMOVE OIL FILTER BRACKET
    1. GTY604891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts, 2 nuts and filter bracket.

    2. GTY604897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 O-rings.

  16. REMOVE OIL COOLER ASSEMBLY
    1. GTY610800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 5 nuts and oil cooler from the oil filter bracket.

    2. GTY571706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 O-rings.

  17. REMOVE OIL COOLER SPACER
    1. GTY571704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and oil cooler spacer from the oil filter bracket.

    2. GTY603077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the gasket.
