Removal [08/2015 - ]: Procedure

  1. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY LH

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY RH

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 ENGINE UNDER COVER SUBASSEMBLY

    See step  17

  4. REMOVE V-BANK COVER SUBASSEMBLY

    See step  22

  5. REMOVE FAN & GENERATOR V BELT

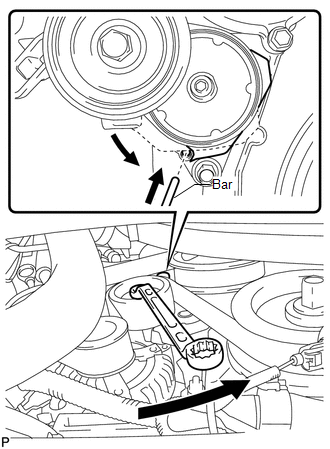

    1. While turning the belt tensioner counterclockwise, align the service hole for the belt tensioner and the belt tensioner fixing position, and then insert a bar of 5 mm (0.197 in.) into the service hole to fix the belt tensioner in place.
      GTY545676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The pulley bolt for the belt tensioner has a left-hand thread.

    2. Remove the V belt.
