Removal [08/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - ] ).

  3. REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION

    Refer to PROCEDURE - Step 1

  4. REMOVE LOWER INSTRUMENT PANEL PAD SUBASSEMBLY LH

    Refer to PROCEDURE - Step 2

  5. REMOVE NO. 1 INSTRUMENT PANEL FINISH PANEL CUSHION

    Refer to PROCEDURE - Step 3

  6. REMOVE LOWER INSTRUMENT PANEL PAD SUBASSEMBLY RH

    Refer to PROCEDURE - Step 4

  7. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUBASSEMBLY

    Refer to PROCEDURE - Step 6

  8. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY

    Refer to PROCEDURE - Step 39

  9. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 32

  10. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 33

  11. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 6

  12. REMOVE MULTI-MEDIA MODULE RECEIVER ASSEMBLY WITH BRACKET

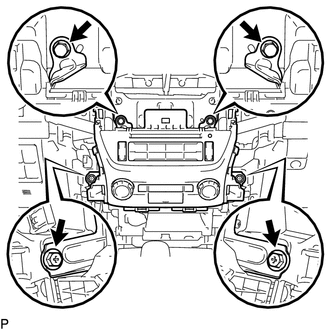

    1. Remove the 2 screws and 2 bolts.
      GTY603038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

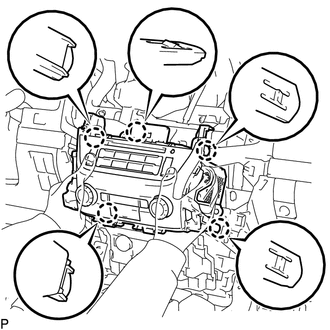

    2. Pull the multi-media module receiver assembly with bracket to detach the 5 claws on the backside of the multi-media module receiver assembly with bracket.
      GTY563404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connectors and remove the multi-media module receiver assembly with bracket.
  13. REMOVE NO. 1 RADIO BRACKET

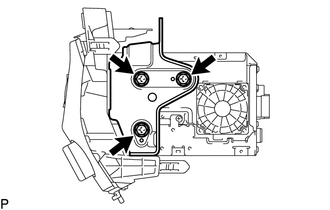

    1. Remove the 3 bolts and No. 1 radio bracket.
      GTY594428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 RADIO BRACKET

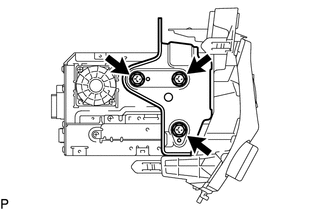

    1. Remove the 3 bolts and No. 2 radio bracket.
      GTY610014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
