Installation [03/2017 - 08/2018]: Procedure
- INSTALL BATTERY

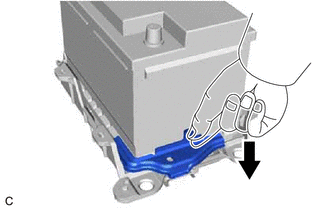

- Install the battery to the vehicle.
- Install the No. 2 battery clamp with the bolt to the battery clamp sub-assembly.
Torque: 18.5 N*m (189 kgf*cm, 14 ft.*lbf)
- Connect the cable to the positive (+) battery terminal and tighten the nut.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
- Engage the 2 claws to install the battery terminal cap to the positive (+) battery terminal.
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- Connect the cable to the negative (-) battery terminal and tighten the nut.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [03/2017 - 06/2017] , or refer to INITIALIZATION [06/2017 - 08/2018]
- Connect the cable to the negative (-) battery terminal and tighten the nut.
