Disassembly [03/2017 - 06/2017]: Procedure

  1. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 5

  2. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

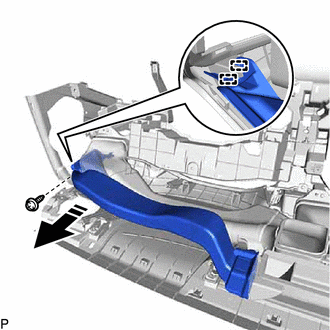

    1. Remove the screw <D>.
      GTY751241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

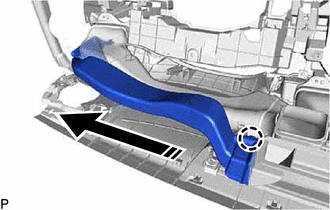

    2. Disengage the 2 guides as shown in the illustration.
    3. Disengage the claw to remove the No. 1 side defroster nozzle duct as shown in the illustration.
      GTY753206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

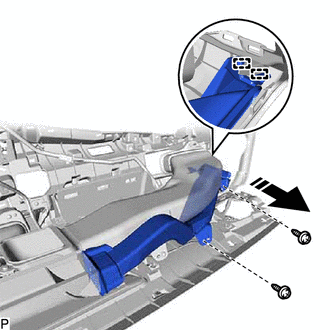

    1. Remove the 2 screws <D>.
      GTY773553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

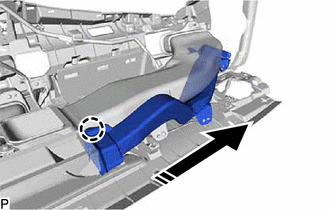

    2. Disengage the 2 guides as shown in the illustration.
    3. Disengage the claw to remove the No. 2 side defroster nozzle duct as shown in the illustration.
      GTY767395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE DEFROSTER NOZZLE ASSEMBLY
    1. Remove the 3 screws <D> and defroster nozzle assembly.
      GTY746858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Remove the 3 screws <D> and No. 1 heater to register duct sub-assembly.
      GTY746856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Remove the 3 screws <D> and No. 3 heater to register duct sub-assembly.
      GTY769918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE TELEPHONE AND GPS ANTENNA CORD (w/ Manual (SOS) Switch)

    Refer to PROCEDURE - Step 3

  8. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET (w/ Manual (SOS) Switch)

    Refer to PROCEDURE - Step 3

  9. REMOVE NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Remove the 2 screws <D> and No. 2 heater to register duct sub-assembly.
      GTY746860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

    Refer to PROCEDURE - Step 5

  11. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Disconnect the connector.
      GTY769919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 screws <D> and No. 2 instrument panel register assembly.
      GTY746859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 3 INSTRUMENT PANEL WIRE
    1. Disengage the clamp to remove the No. 3 instrument panel wire.
      GTY753394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 1 METER BRACKET SUB-ASSEMBLY
    1. Remove the screw <D> and No. 1 meter bracket sub-assembly.
      GTY746853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH
    1. Disengage the 4 clips.
      GTY746854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 guides to remove the No. 1 defroster nozzle garnish.
      GTY746851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 1 INSTRUMENT PANEL PIN
    1. Remove the 4 screws <D> and 4 No. 1 instrument panel pins.
      GTY746852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  17. REMOVE INSTRUMENT PANEL CUSHION

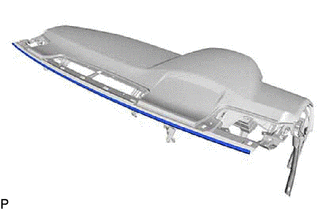

    1. Remove the instrument panel cushion.
      GTY769917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

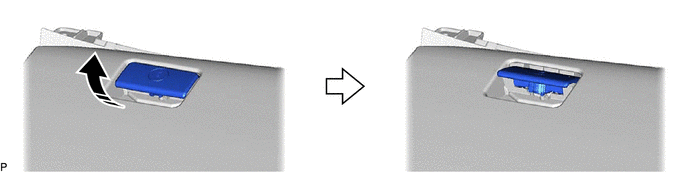

    1. Move the glove compartment door lever as shown in the illustration.
      GTY1008287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Move in this Direction - -

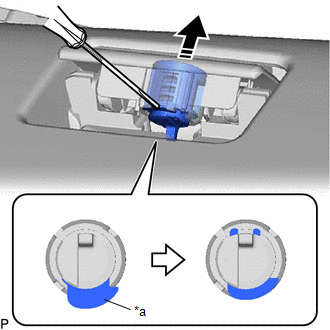

    2. Using a screwdriver, press the cylinder lock plate to release it and pull out the glove compartment door lock cylinder assembly from the glove compartment door lever to remove it as shown in the illustration.
      GTY1007658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cylinder Lock Plate
      Remove in this Direction
