Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [03/2017 - 06/2017]

  2. REMOVE NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  3. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET
    1. Disconnect the connector.

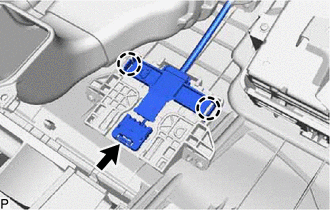

      GTY762553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws.
    3. Remove the 2 screws and telephone and GPS antenna assembly with bracket.

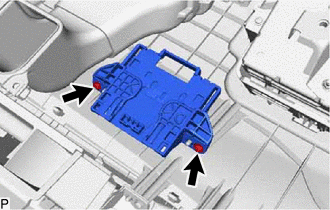

      GTY762554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY
    1. Disengage the 2 claws and 6 guides to remove the telephone and GPS antenna assembly as shown in the illustration.

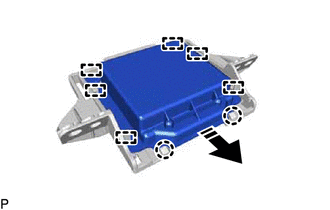

      GTY772275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE TELEPHONE AND GPS ANTENNA BRACKET
