Removal [03/2017 - 06/2017]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    Refer to PRECAUTION [03/2017 - 06/2017]

    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [03/2017 - 06/2017]

  2. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to REMOVAL [03/2017 - 06/2017]

  3. DISCONNECT NO. 5 INSTRUMENT PANEL WIRE
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

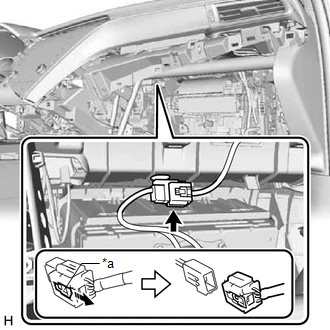

    3. Slide the slider to release the lock, and then disconnect the connector.
      GTY769442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Slider
      Release in this Direction
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

  4. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 42

  5. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
    WARNING:

    When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.

    GTY564462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Deployment Side

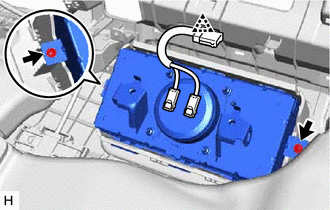

    1. Remove the 2 screws and disengage the clamp.
      GTY748246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

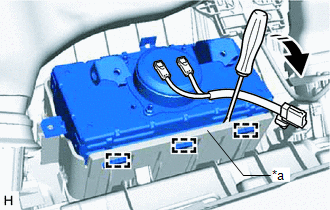

    2. Using a screwdriver, pry back the passenger airbag door retainer to disengage the 3 hooks as shown in the illustration.
      GTY755380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Passenger Airbag Door Retainer
      Move the screwdriver in this Direction
      NOTE:

      Do not damage the deployment surface of the instrument panel passenger airbag assembly.

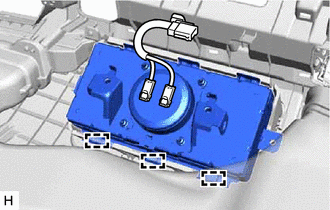

    3. Disengage the 3 hooks to remove the instrument panel passenger airbag assembly from the instrument panel safety pad sub-assembly.
      GTY770221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 5 INSTRUMENT PANEL WIRE

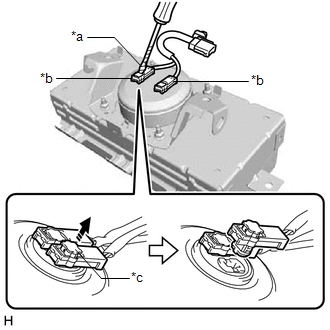

    1. Using a screwdriver with its tip wrapped with protective tape, release the 2 airbag connector locking buttons.
      GTY772327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Airbag Connector
      *c Airbag Connector Locking Button
      Release in this Direction
    2. Disconnect the 2 airbag connectors to remove the No. 5 instrument panel wire from the instrument panel passenger airbag assembly.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.
