Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [03/2017 - 06/2017]

  2. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 3

  4. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

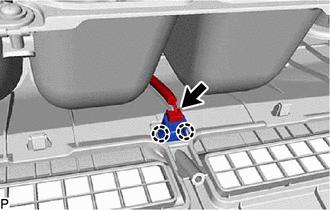

    1. Disconnect the connector.
      GTY762442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the automatic light control sensor.
