Disassembly [06/2017 - 09/2019]: Procedure

  1. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)

    Refer to PROCEDURE - Step 2

  2. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (for Bar Type Radiator Grille)
    1. Remove the 2 screws.
      GTY753248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the front bumper extension mounting bracket as shown in the illustration.
      GTY743092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (for Mesh Type Radiator Grille)
    1. Remove the 2 screws.
      GTY753212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the front bumper extension mounting bracket as shown in the illustration.
      GTY756140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE FRONT BUMPER PAD LH (for Bar Type Radiator Grille)
    1. Disengage the 2 claws and guide to remove the front bumper pad LH.
      GTY771322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT BUMPER PAD RH (for Bar Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE FRONT BUMPER PAD LH (for Mesh Type Radiator Grille)
    1. Disengage the 2 claws and guide to remove the front bumper pad LH.
      GTY762066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT BUMPER PAD RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    for Bar Type Radiator Grille:

    Refer to PROCEDURE - Step 2

  9. REMOVE FRONT BUMPER COVER INSERT (w/ Panoramic View Monitor System)
    1. for Mesh Type Radiator Grille:
      GTY750703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 2 claws to remove the front bumper cover insert.
  10. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    for Mesh Type Radiator Grille:

    Refer to PROCEDURE - Step 4

  11. REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2

  12. REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 3

  13. REMOVE FRONT CENTER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    for Bar Type Radiator Grille:

    Refer to PROCEDURE - Step 5

  14. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 6

  15. REMOVE NO. 4 ENGINE ROOM WIRE (w/ Intuitive Parking Assist System)
    1. for Bar Type Radiator Grille:
      1. Disengage the 10 clamps to remove the No. 4 engine room wire.
        GTY754117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Mesh Type Radiator Grille:
      1. Disengage the 12 clamps to remove the No. 4 engine room wire.
        GTY771492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT BUMPER HOLE COVER LH (for Bar Type Radiator Grille)
    1. w/ Cover:
      GTY746115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      Remove in this Direction
      1. Disengage the 2 claws as shown in the illustration.
      2. Disengage the hook to remove the front bumper hole cover LH.
  17. REMOVE FRONT BUMPER HOLE COVER LH (for Mesh Type Radiator Grille)
    1. w/ Cover:
      GTY760274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      Remove in this Direction
      1. Disengage the 5 claws as shown in the illustration.
      2. Disengage the hook to remove the front bumper hole cover LH.
  18. REMOVE FRONT BUMPER HOLE COVER RH (for Mesh Type Radiator Grille)

    w/ Cover:

    HINT:

    Use the same procedure as for the LH side.

  19. REMOVE HOOD TO FRONT END PANEL SEAL
    1. Disengage the 6 clips.
      GTY753264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Separate the double-sided tape and disengage the guide to remove the hood to front end panel seal.
      GTY751845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
  20. REMOVE RADIATOR GRILLE EMBLEM ASSEMBLY
    1. Remove the 2 screws.
      GTY771323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and guide to remove the radiator grille emblem assembly.
      GTY753268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE RADIATOR GRILLE SIDE MOULDING LH (for Bar Type Radiator Grille)
    1. Remove the screw.
      GTY753269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 claws to remove the radiator grille side moulding LH as shown in the illustration.
      GTY764390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  22. REMOVE RADIATOR GRILLE SIDE MOULDING RH (for Bar Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  23. REMOVE RADIATOR GRILLE (for Bar Type Radiator Grille)
    1. Remove the 2 clips.
      GTY753261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 screws and radiator grille.
      GTY762071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE RADIATOR GRILLE (for Mesh Type Radiator Grille)
    1. Remove the 2 clips.
      GTY753193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 10 screws and radiator grille.
      GTY771304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE LOWER RADIATOR GRILLE MOULDING (for Mesh Type Radiator Grille)
    1. Remove the 2 screws.
      GTY753190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 16 claws to remove the lower radiator grille moulding.
      GTY753191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE LOWER RADIATOR GRILLE MOULDING LH (for Mesh Type Radiator Grille)
    1. Disengage the 10 claws to remove the lower radiator grille moulding LH.
      GTY753192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE LOWER RADIATOR GRILLE MOULDING RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  28. REMOVE FOG LIGHT COVER LH (for Mesh Type Radiator Grille)
    1. Disengage the 6 claws to remove the fog light cover LH.
      GTY764209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE FOG LIGHT COVER RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  30. REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY (for Bar Type Radiator Grille)
    1. Remove the 6 screws.
      GTY753257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 23 claws to remove the lower radiator grille sub-assembly.
      GTY753258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY (for Mesh Type Radiator Grille)
    1. Remove the 2 screws.
      GTY771303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 18 claws to remove the lower radiator grille sub-assembly.
      GTY753186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE RADIATOR GRILLE SIDE MOULDING LH (for Mesh Type Radiator Grille)
    1. Remove the 2 clips.
      GTY753187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and 2 guides to remove the radiator grille side moulding LH.
      GTY753185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE RADIATOR GRILLE SIDE MOULDING RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  34. REMOVE PIN HOLD CLIP
    1. Disengage the 4 claws to remove the 2 pin hold clips as shown in the illustration.
      GTY766757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

  35. REMOVE FRONT FENDER LINER RETAINER
    1. Remove the 2 front fender liner retainers as shown in the illustration.
      GTY770154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

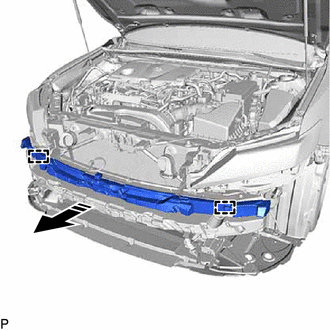

  36. REMOVE NO. 2 FRONT BUMPER ENERGY ABSORBER
    1. Disengage the 2 guides to remove the No. 2 front bumper energy absorber as shown in the illustration.
      GTY747886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

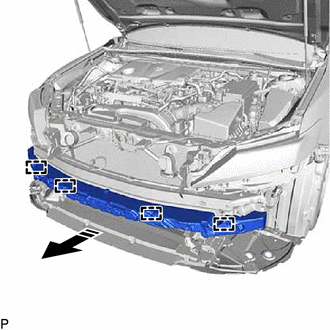

  37. REMOVE FRONT BUMPER ENERGY ABSORBER
    1. Disengage the 4 guides to remove the front bumper energy absorber as shown in the illustration.
      GTY752426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  38. REMOVE FRONT BUMPER REINFORCEMENT
    1. Remove the headlight assembly LH.

      Refer to PROCEDURE - Step 2

    2. Remove the headlight assembly RH.

      HINT:

      Use the same procedure as for the LH side.

    3. Disengage the 5 clamps.
      GTY753181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 8 bolts and front bumper reinforcement.
      GTY753168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE FRONT BUMPER SIDE RETAINER LH
    1. Remove the bolt.
      GTY753182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips to remove the front bumper side retainer LH as shown in the illustration.
      GTY769369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  40. REMOVE FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.
