Removal [06/2017 - 10/2020]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [06/2017 - 10/2020]

  2. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (for Bar Type Radiator Grille)
    1. Remove the 2 screws.

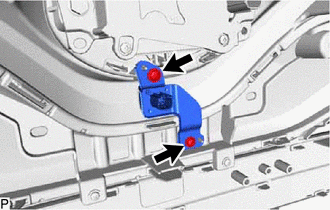

      GTY750706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the front television camera assembly.

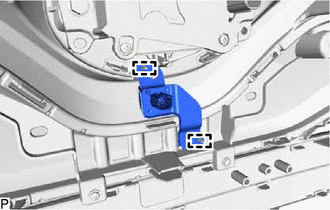

      GTY770758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT BUMPER COVER INSERT (for Mesh Type Radiator Grille)

    Refer to PROCEDURE - Step 9 [06/2017 - 09/2019] , or refer to PROCEDURE - Step 9 [09/2019 - 10/2020]

  4. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (for Mesh Type Radiator Grille)
    1. Remove the 3 screws.

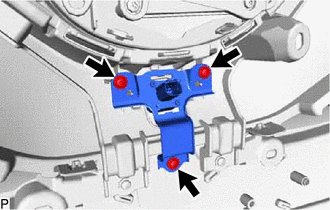

      GTY750705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the front television camera assembly.

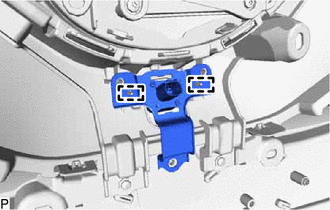

      GTY750704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
