Removal [06/2017 - 10/2020]: Procedure

Refer to REMOVAL [06/2017 - 10/2020]

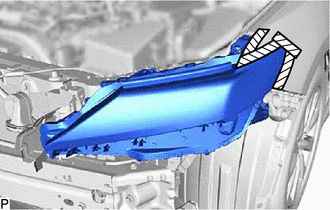

1. Apply protective tape around the headlight assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

2. Remove the bolt and 3 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Bolt
   *b	Screw

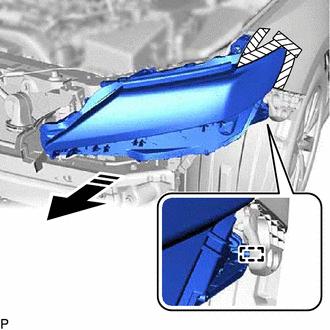

3. Disengage the guide to separate the headlight assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

4. For Bulb Type Turn Signal Light:
   1. Disengage the clamp.
5. Disconnect each connector to remove the headlight assembly.
