Reassembly [06/2017 - 09/2019]: Procedure

  1. INSTALL FRONT SEAT CUSHION PANEL SUB-ASSEMBLY
    1. Install the front seat cushion panel sub-assembly to the front seat adjuster assembly with the 4 screws.
      GTY755880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT SEAT CUSHION SPRING SUB-ASSEMBLY
    1. Engage the 8 hooks to install the front seat cushion spring sub-assembly to the front seat adjuster assembly.
      GTY771908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT SEAT WIRE
    1. Connect each connector and engage each clamp to install the front seat wire.
    2. Install the screw.
      GTY755883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL LH SEAT SEAT TRACK UPPER RAIL COVER (for Driver Side)

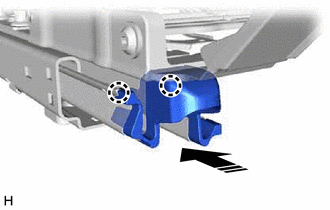

    1. Engage the 2 claws to install the LH seat seat track upper rail cover as shown in the illustration.
      GTY750973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL RH SEAT SEAT TRACK UPPER RAIL COVER (for Front Passenger Side)

    HINT:

    • Use the same procedure as for the LH seat seat track upper rail cover (for Driver Side).
    • Use the same procedure for both RH seat seat track upper rail covers.
  6. INSTALL SEAT TRACK UPPER RAIL COVER LH
    1. Engage the 2 claws to install the seat track upper rail cover LH as shown in the illustration.

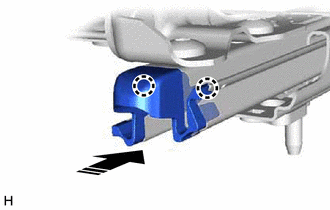

      GTY752202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  7. INSTALL SEAT TRACK UPPER RAIL COVER RH

    HINT:

    Use the same procedure as for the LH side.

  8. INSTALL FRONT SEAT LOWER CUSHION SHIELD LH (for Driver Side)
    1. Engage the claw and guide.
      GTY755907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook.
      GTY755905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the front seat lower cushion shield LH with the screw.
  9. INSTALL FRONT SEAT LOWER CUSHION SHIELD RH (for Driver Side)
    1. Engage the 2 claws.
      GTY755882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook to install the front seat lower cushion shield RH.
  10. INSTALL FRONT SEAT LOWER CUSHION SHIELD LH (for Front Passenger Side)
    1. Engage the claw and guide.
      GTY758703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Guide
    2. Engage the hook.
    3. Install the front seat lower cushion shield LH with the screw.
      GTY755904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL FRONT SEAT LOWER CUSHION SHIELD RH (for Front Passenger Side)

    HINT:

    Use the same procedure as for the front seat lower cushion shield LH (for Driver Side).

  12. INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER
    1. Engage the 2 guides to install the LH seat reclining adjuster inside cover.
      GTY786769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  14. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

    HINT:

    When installing a separate type front seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

    Refer to PRECAUTION [03/2017 - 09/2019]

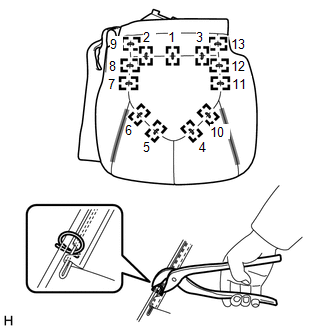

    1. Using hog ring pliers, install 13 new hog rings in the order indicated in the illustration.
      GTY770100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
      NOTE:
      • Be careful not to damage the separate type front seat cushion cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.
    2. Engage the 2 fasteners.

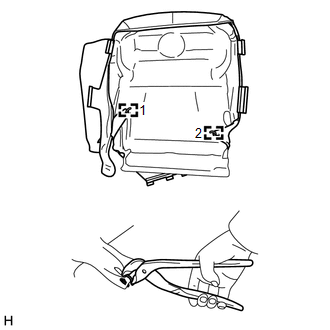

    3. Using hog ring pliers, install the separate type front seat cushion cover to the separate type front seat cushion pad with 2 new hog rings in the order indicated in the illustration.
      GTY872274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the separate type front seat cushion cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.
  15. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
    1. Engage each hook to install the separate type front seat cushion cover with pad to the separate type front seat cushion spring assembly.
      GTY829734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Seat Heater System:
      1. Connect the connector.
        GTY1177118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Wire Harness Clamp - -
      2. Engage the 4 clamps to install the front seat cushion heater assembly wire harness.
      3. Engage a new wire harness clamp. (w/ Wire Harness Clamp)
  16. INSTALL FRONT SEAT NO. 2 WIRE
    1. Connect each connector and engage each clamp to install the front seat No. 2 wire.
  17. INSTALL FRONT NO. 2 SEATBACK HOOK
    1. Engage the 2 clamps to install the 2 front No. 2 seatback hooks to the front seatback frame sub-assembly.
      GTY841876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL FRONT SEATBACK SPRING SUB-ASSEMBLY RH (for Front Passenger Side)
    1. Engage the 8 hooks to install the front seatback spring sub-assembly RH to the front seatback frame sub-assembly.
      GTY756306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 1

  20. INSTALL FRONT SEAT AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  21. INSTALL FRONT SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  22. INSTALL SEPARATE TYPE FRONT SEATBACK COVER

    HINT:

    When installing a separate type front seatback cover, refer to Precaution in order to prevent wrinkles from forming.

    Refer to PRECAUTION [03/2017 - 09/2019]

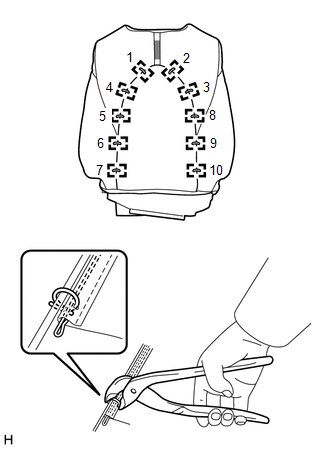

    1. Using hog ring pliers, install the separate type front seatback cover to the separate type front seatback pad with 10 new hog rings in the order indicated in the illustration.
      GTY751168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener (w/ Fastener)
      NOTE:
      • Be careful not to damage the separate type front seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.
    2. w/ Fastener
      1. Engage the fastener.
  23. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
    1. Install the separate type front seatback cover with pad.
  24. INSTALL FRONT SEAT HEADREST SUPPORT

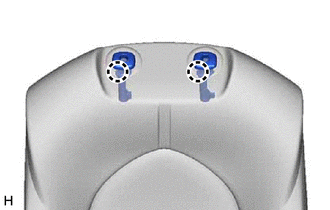

    1. Engage the 2 claws to install the 2 front seat headrest supports.
      GTY756337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Webbing
      1. Engage the 2 brackets.
        GTY770838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Bracket
      2. Using a T25 "TORX" socket wrench, install the screw.

        Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

        NOTE:
        • For vehicles with a front seat airbag assembly, the separate type front seatback cover with pad must be securely installed. Otherwise, the front seat airbag assembly may not deploy properly.
        • Make sure that the strap is not twisted after installing the screw.
        • Install the brackets securely.
    3. Pass each wire harness through the hole of the separate type front seatback cover.
      GTY771896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the hook.
    5. Close the 2 fasteners.

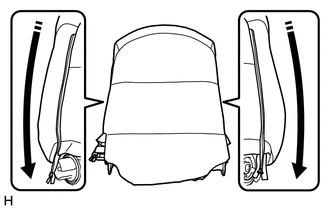

      GTY756351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY
    1. Install the separate type front seatback assembly to the separate type front seat cushion assembly with the 4 bolts.
      GTY772007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)

    2. w/ Seat Heater System:
      1. Connect the connector.
        GTY772006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Engage the clamp to install the front seatback heater assembly wire harness.
    3. Connect the connector.
      GTY756301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the 2 clamps to install the front seat No. 2 wire.
    5. Engage the claw and 3 clamps to install the front seat airbag assembly wire harness.
      GTY756304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Engage the claw first.

    6. Engage the hook.
      GTY756303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL FRONT POWER SEAT SWITCH

    Refer to PROCEDURE - Step 1

  27. INSTALL RECLINING POWER SEAT SWITCH KNOB

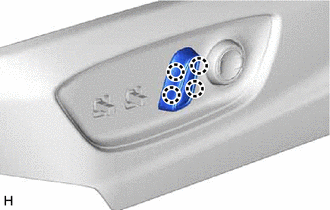

    1. Engage the 4 claws to install the reclining power seat switch knob.
      GTY598296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

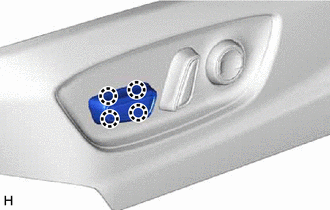

    1. Engage the 4 claws to install the slide and vertical power seat switch knob.
      GTY542122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL FRONT SEAT LOWER CUSHION SHIELD
    1. Engage the claw.
      GTY755884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front seat lower cushion shield with the screw.
  30. INSTALL FRONT SEAT INNER CUSHION SHIELD

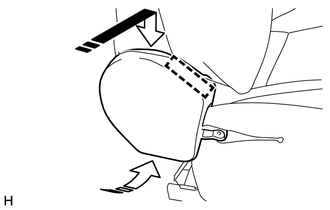

    1. Engage the guide as shown in the illustration.
      GTY759566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    2. Install the front seat inner cushion shield with the 2 screws.
      GTY751368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL FRONT SEAT CUSHION SHIELD
    1. Connect the front power seat switch connector.
      GTY756302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the guide and 4 claws as shown in the illustration.

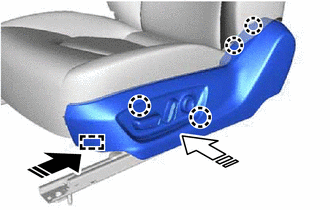

      GTY758777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    3. Install the front seat cushion shield with the 2 screws.
      GTY756293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL FRONT SEAT FRONT CUSHION SHIELD
    1. Engage the 5 claws and 2 guides.
      GTY772004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front seat front cushion shield with the screw.
      GTY756292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. CONNECT SEPARATE TYPE FRONT SEATBACK COVER
    1. Connect the 2 rubber bands of the separate type front seatback cover.
      GTY756297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 1

  35. INSTALL FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 2

  36. INSTALL OCCUPANT DETECTION ECU (for Front Passenger Side)

    Refer to PROCEDURE - Step 2

  37. INSTALL SEAT POSITION AIRBAG SENSOR (for Driver Side)

    Refer to PROCEDURE - Step 1
