Installation [06/2017 - 09/2019]: Procedure

  1. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

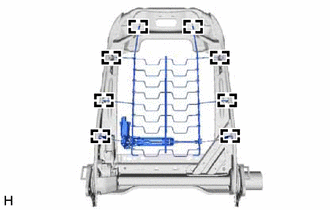

    1. Engage the 8 hooks to install the lumbar support adjuster assembly LH.
      GTY771912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

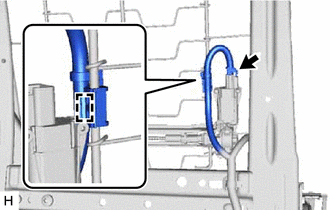

    2. Connect the connector and engage the clamp.
      GTY756307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Connect the connector first.

  2. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 23

  3. INSTALL FRONT SEAT HEADREST SUPPORT

    Refer to PROCEDURE - Step 24

  4. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 25

  5. INSTALL FRONT SEAT INNER CUSHION SHIELD LH

    Refer to PROCEDURE - Step 30

  6. INSTALL FRONT SEAT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 31

  7. INSTALL FRONT SEAT FRONT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 32

  8. CONNECT SEPARATE TYPE FRONT SEATBACK COVER

    Refer to PROCEDURE - Step 33

  9. INSTALL FRONT SEAT ASSEMBLY LH

    Refer to INSTALLATION [06/2017 - 09/2019]
