Installation [06/2017 - 09/2019]: Procedure

INSTALL OCCUPANT DETECTION ECU (for TMC Made)

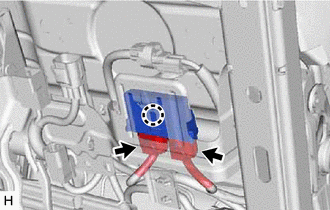

Engage the claw to install the occupant detection ECU.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If the occupant detection ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the occupant detection ECU with a new one.

Connect the 2 connectors.
NOTE:
When installing the occupant detection ECU, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

INSTALL OCCUPANT DETECTION ECU (for TMMK Made)

Engage the claw to install the occupant detection ECU.

NOTE:

If the occupant detection ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the occupant detection ECU with a new one.

Connect the 2 connectors.
NOTE:
When installing the occupant detection ECU, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

INSTALL FRONT SEAT ASSEMBLY RH (for TMC Made)
Refer to INSTALLATION [03/2017 - 09/2019]
INSTALL FRONT SEAT ASSEMBLY RH (for TMMK Made)
HINT:

Use the same procedure as for the LH side.

for Manual Seat: Refer to INSTALLATION [06/2017 - ]

for Power Seat: Refer to INSTALLATION [06/2017 - 09/2019]
PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR [03/2017 - ]
PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK
Refer to INITIALIZATION [06/2017 - ]
