Installation [02/2017 - ]: Procedure

HINT:

Perform this procedure only when replacement of the transmission breather hose sub-assembly is necessary.

1. Apply Toyota Genuine CVT fluid FE to a new O-ring, and install it to the No. 2 breather plug (CVT).
   NOTE:

   Be careful not to damage or twist the O-ring.

2. Install the No. 1 breather plug (CVT) and No. 2 breather plug (CVT) to the breather plug hose.
3. Install the transmission breather hose sub-assembly to the continuously variable transaxle assembly.

HINT:

Perform this procedure only when replacement of the straight screw plug is necessary.

1. Install a new gasket and the straight screw plug to the continuously variable transaxle assembly.

   Torque: 16.2 N*m (165 kgf*cm, 12 ft.*lbf)

1. Install the automatic transmission case cover to the continuously variable transaxle assembly with the 2 clips.

1. Install a new gasket and oil cooler elbow sub-assembly to the continuously variable transaxle assembly with the union bolt.

   Torque: 22.6 N*m (230 kgf*cm, 17 ft.*lbf)

   NOTE:

   • Make sure to insert the painted end (white) of the No. 2 transmission oil cooler hose up to the spool fitting of the oil cooler elbow sub-assembly so that the marking is facing the front of the vehicle.
   • Make sure to clean and degrease the insertion part of the No. 2 transmission oil cooler hose of the oil cooler elbow sub-assembly.
2. Install the No. 2 transmission oil cooler hose to the oil cooler elbow sub-assembly and slide the clip to secure it.

1. Install a new O-ring to the tube connector.
2. Install the tube connector to the continuously variable transaxle assembly.

   Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)

3. Install the No. 1 transmission oil cooler hose to the tube connector and slide the clip to secure it.

1. Install the 3 wire harness clamp brackets to the continuously variable transaxle assembly with the 3 bolts.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Wire Harness Clamp Bracket
   *2	Water By-pass Hose Clamp
   *3	Water Hose Clamp Bracket

2. Install the water by-pass hose clamp to the water hose clamp bracket.
3. Install the water hose clamp bracket to the continuously variable transaxle assembly with the bolt.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

1. Install the transmission control cable support to the continuously variable transaxle assembly with the 2 bolts.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

1. Install the No. 1 transmission control cable bracket to the continuously variable transaxle assembly with the 2 bolts.

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

2. Connect the clamp to the No. 1 transmission control cable bracket.

1. Install the No. 2 engine moving control rod to the continuously variable transaxle assembly with the 4 bolts in the order shown in the illustration.

   Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Temporarily Tighten

1. Install the front suspension crossmember sub-assembly to the No. 2 engine moving control rod with the bolt.

   Torque: 170 N*m (1734 kgf*cm, 125 ft.*lbf)

1. Ensure that there is no dirt or foreign matter on your hands, and then apply MP grease to the entire periphery of the lip of a new CVT oil pump type T oil seal.
2. Temporarily install the CVT oil pump type T oil seal by pressing it to the installation surface of the oil pump housing manually.
   NOTE:

   Be sure to install the CVT oil pump type T oil seal in the correct direction.

3. Clean the CVT oil pump type T oil seal contact surface of SST and the area around it.
   • SST: 09309-36010
4. Using SST, drive the CVT oil pump type T oil seal in evenly, until it is even with the side surface of the oil pump housing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	0 to 0.5 mm

   Standard Depth

   0 to 0.5 mm (0 to 0.0196 in.)

   NOTE:

   • Drive the CVT oil pump type T oil seal in gradually, while visually checking that it is even.
   • After installation, confirm that the CVT oil pump type T oil seal has been driven in until it is even with the side surface of the oil pump housing.
   • Wipe any extra grease off with your hand.

   HINT:

   The CVT oil pump type T oil seal should be driven in between 0 to 0.5 mm (0 to 0.0196 in.) as measured from the side surface of the oil pump housing.

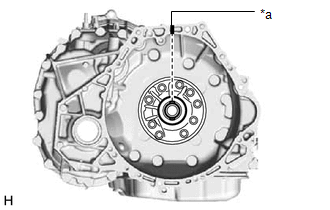

1. Turn the front oil pump drive gear so that the wide groove is at the top and place a matchmark on the transaxle housing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   NOTE:

   Align the matchmark with the wide groove of the transaxle housing.

2. Place a matchmark on the torque converter assembly so that the position of its key is clearly indicated.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Key
   *b	Matchmark

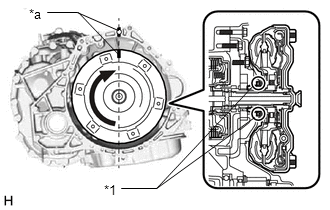

3. Align the matchmark on the transaxle housing with the one on the torque converter assembly and engage the splines of the input shaft with the turbine runner splines.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	CVT Oil Pump Type T Oil Seal
   *a	Matchmark

   NOTE:

   • Install the torque converter assembly to the input shaft while keeping it horizontal.
   • Do not damage the CVT oil pump type T oil seal.

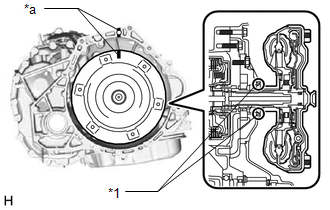

4. Rotate the torque converter assembly approximately 180° and engage the splines of the stator shaft with the stator assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	CVT Oil Pump Type T Oil Seal
   *a	Matchmark

   NOTE:

   • Install the torque converter assembly to the input shaft while keeping it horizontal.
   • Do not damage the CVT oil pump type T oil seal.

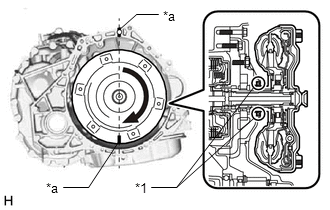

5. Rotate the torque converter assembly approximately 180° again, align the matchmark on the torque converter assembly with the one on the transaxle housing and insert the key of the torque converter assembly into the groove of the oil pump drive gear.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	CVT Oil Pump Type T Oil Seal
   *a	Matchmark

   NOTE:

   • Install the torque converter assembly to the input shaft while keeping it horizontal.
   • Do not push the torque converter assembly excessively when rotating it.
   • Do not damage the CVT oil pump type T oil seal.
6. Clean the drive plate and torque converter assembly setting bolt holes.
7. Using a vernier caliper and straightedge, measure the dimension (A) between the continuously variable transaxle assembly contact surface of the engine assembly*a and the torque converter assembly contact surfaces of the drive plate*b.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Engine Assembly Surface
   *b	Drive Plate Surface

8. Using a vernier caliper and straightedge, measure the dimension (B) shown in the illustration and check that the dimension (B) is more than the dimension (A), which was measured in the previous step.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard

   B = A + 1 mm (0.0394 in.) or more

   NOTE:

   • Make sure to deduct the thickness of the straightedge.
   • If the continuously variable transaxle assembly is installed to the engine assembly with the torque converter assembly not sufficiently inserted, the torque converter assembly may be damaged.
   • Do not include the thickness of the set block.

1. Apply clutch spline grease to the surface of the crankshaft that contacts the torque converter assembly centerpiece.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Crankshaft
   *a	Torque Converter Assembly Centerpiece

   Clutch Spline Grease

   Toyota Genuine Clutch Spline Grease or equivalent

   Maximum Grease Amount

   Approximately 1 g (0.0353 oz.)

2. Confirm that the 2 knock pins are installed to the engine assembly and are not damaged.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

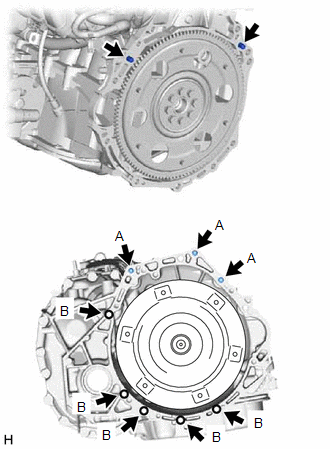

3. Install the engine assembly to the continuously variable transaxle assembly with the 8 bolts.

   Bolt (A)

   Torque: 38 N*m (387 kgf*cm, 28 ft.*lbf)

   Bolt (B)

   Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

   NOTE:

   • Make sure that the wire harness or similar items are not pinched between the contact surfaces.
   • Do not use excess force when installing the continuously variable transaxle assembly.
   • When mounting the continuously variable transaxle assembly to the engine assembly, make sure to securely fit the 2 knock pins into the knock holes.
   • Check that the torque converter assembly rotates.
   • When tightening the bolts, be sure that the mating surfaces of the engine assembly and the continuously variable transaxle assembly are in close contact with one another.

   HINT:

   • Bolt (A): Install from continuously variable transaxle assembly side
   • Bolt (B): Install from engine assembly side

1. Install the transverse engine mounting bracket with the 5 new bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Temporarily Tighten

   Torque: 41 N*m (418 kgf*cm, 30 ft.*lbf)

Refer to PROCEDURE - STEP 11 [02/2017 - 10/2017] , or refer to PROCEDURE - STEP 11 [10/2017 - 12/2021] , or refer to PROCEDURE - STEP 11 [12/2021 - ]

Refer to PROCEDURE - STEP 1 [02/2017 - 09/2019] , or refer to PROCEDURE - STEP 1 [09/2019 - 08/2020] , or refer to PROCEDURE - STEP 1 [08/2020 - ]

1. Engage the 5 clamps to disconnect the engine wire to the continuously variable transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Park/Neutral Position Switch Connector	*2	Transmission Wire Connector
   *3	Transmission Revolution Sensor (NIN) Connector	*4	Transmission Revolution Sensor (NOUT) Connector
   *5	Transmission Revolution Sensor (NT) Connector	*6	Oil Pressure Sensor Connector

2. Connect the engine wire to the continuously variable transaxle assembly with the 3 bolts and nut.

   Bolt (A)

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   Bolt (B)

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   Nut

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

3. Connect the oil pressure sensor connector.
4. Connect the transmission revolution sensor (NOUT) connector.
5. Connect the transmission revolution sensor (NIN) connector.
6. Connect the transmission revolution sensor (NT) connector.
7. Connect the transmission wire connector.
8. Connect the park/neutral position switch connector.
9. Engage the 3 clamps to connect the engine wire to the front suspension crossmember sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the No. 5 water by-pass hose to the transmission oil cooler, and slide the clip to secure it.
   NOTE:

   • Align each paint mark on the No. 5 water by-pass hose with each one on the transmission oil cooler.
   • Fully insert the No. 5 water by-pass hose to the 2nd rib on each oil cooler pipe.

1. Connect the No. 3 water by-pass hose to the transmission oil cooler, and slide the clip to secure it.
   NOTE:

   • Align each paint mark on the No. 3 water by-pass hose with each one on the transmission oil cooler.
   • Fully insert the No. 3 water by-pass hose to the 2nd rib on each oil cooler pipe.

Refer to INSTALLATION [02/2017 - 10/2017] , or refer to INSTALLATION [10/2017 - 12/2021] , or refer to INSTALLATION [12/2021 - ]

1. Clean the threads of the 6 drive plate and torque converter assembly setting bolts.
2. Apply a few drops of adhesive to 2 or 3 threads at the tip of each of the 6 drive plate and torque converter assembly setting bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Adhesive

   Adhesive

   Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

   NOTE:

   In order to ensure proper installation of the 6 drive plate and torque converter assembly setting bolts, apply adhesive to the 6 drive plate and torque converter assembly setting bolts and install them within 10 minutes of adhesive application.

3. Turn the crankshaft to gain access to the installation locations of the 6 drive plate and torque converter assembly setting bolts and install each bolt while holding the crankshaft pulley with SST.

   Torque: 41 N*m (418 kgf*cm, 30 ft.*lbf)

   NOTE:

   First install the black-colored bolt, and then the remaining 5 silver-colored bolts.

1. Install the flywheel housing under cover.

Refer to INITIALIZATION [02/2017 - ]
