Replacement [02/2017 - ]: Procedure

Refer to PROCEDURE - STEP 7 [02/2017 - 10/2017] , or refer to PROCEDURE - STEP 7 [10/2017 - 08/2020] , or refer to PROCEDURE - STEP 7 [08/2020 - 12/2021] , or refer to PROCEDURE - STEP 7 [12/2021 - ]

Refer to PROCEDURE - STEP 8 [02/2017 - 10/2017] , or refer to PROCEDURE - STEP 8 [10/2017 - 08/2020] , or refer to PROCEDURE - STEP 8 [08/2020 - 12/2021] , or refer to PROCEDURE - STEP 8 [12/2021 - ]

Refer to PROCEDURE - STEP 9 [02/2017 - 10/2017] , or refer to PROCEDURE - STEP 9 [10/2017 - 08/2020] , or refer to PROCEDURE - STEP 9 [08/2020 - 12/2021] , or refer to PROCEDURE - STEP 9 [12/2021 - ]

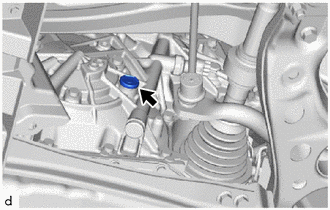

1. Remove the refill plug and gasket from the continuously variable transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

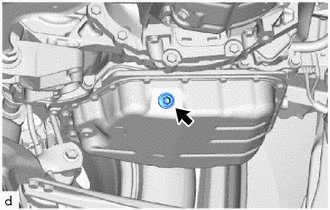

2. Using a 10 mm hexagon socket wrench, remove the drain plug and gasket from the transaxle oil (CVT) pan sub-assembly, and drain the fluid.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Install a new gasket and the drain plug to the transaxle oil (CVT) pan sub-assembly.

   Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

4. Temporarily install the gasket and refill plug to the continuously variable transaxle assembly.

   HINT:

   Reuse the old gasket. The refill plug will be removed again to adjust the fluid level.

Refer to REMOVAL [02/2017 - 09/2019] , or refer to REMOVAL [09/2019 - ]

Refer to PROCEDURE - STEP 13

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

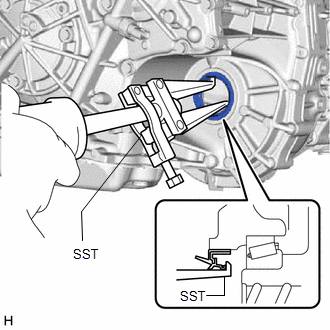

1. Using SST, remove the front drive shaft oil seal LH from the continuously variable transaxle assembly.
   • SST: 09308-00010
   NOTE:

   Do not damage the continuously variable transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

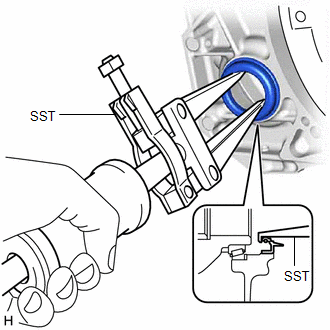

1. Using SST, remove the front drive shaft oil seal RH from the continuously variable transaxle assembly.
   • SST: 09308-00010
   NOTE:

   Do not damage the continuously variable transaxle assembly.

1. Apply MP grease to the lip of a new front drive shaft oil seal LH.

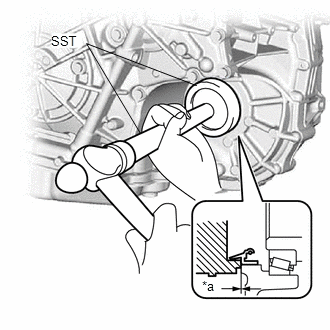

2. Using SST and a hammer, install the front drive shaft oil seal LH to the continuously variable transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	-0.5 to 0.5 mm

   • SST: 09316-10010
   • SST: 09950-70010
     1. 09951-07200

   Standard Depth

   -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

   NOTE:

   • Be sure to install the front drive shaft oil seal LH in the correct direction.
   • Make sure to install the front drive shaft oil seal LH as specified, otherwise malfunctions such as a fluid leak will occur.
   • Do not damage the lip of the front drive shaft oil seal LH.

1. Apply MP grease to the lip of a new front drive shaft oil seal RH.

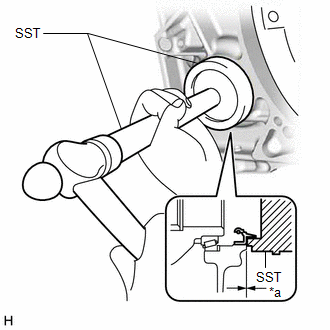

2. Using SST and a hammer, install the front drive shaft oil seal RH to the continuously variable transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	-0.5 to 0.5 mm

   • SST: 09316-10010
   • SST: 09950-70010
     1. 09951-07200

   Standard Depth

   -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

   NOTE:

   • Be sure to install the front drive shaft oil seal RH in the correct direction.
   • Make sure to install the front drive shaft oil seal RH as specified, otherwise malfunctions such as a fluid leak will occur.
   • Do not damage the lip of the front drive shaft oil seal RH.

Refer to PROCEDURE - STEP 15

Refer to INSTALLATION [02/2017 - 09/2019] , or refer to INSTALLATION [09/2019 - ]

Refer to ADJUSTMENT [02/2017 - ]

Refer to PROCEDURE - STEP 59 [02/2017 - 10/2017] , or refer to PROCEDURE - STEP 59 [10/2017 - 12/2021] , or refer to PROCEDURE - STEP 59 [12/2021 - ]

Refer to PROCEDURE - STEP 60 [02/2017 - 10/2017] , or refer to PROCEDURE - STEP 60 [10/2017 - 12/2021] , or refer to PROCEDURE - STEP 60 [12/2021 - ]

Refer to PROCEDURE - STEP 61 [02/2017 - 10/2017] , or refer to PROCEDURE - STEP 61 [10/2017 - 12/2021] , or refer to PROCEDURE - STEP 61 [12/2021 - ]
