Installation [02/2017 - ]: Procedure

1. Apply MP grease to the lip of a new timing chain cover oil seal.
   NOTE:

   Keep the lip free from foreign matter.

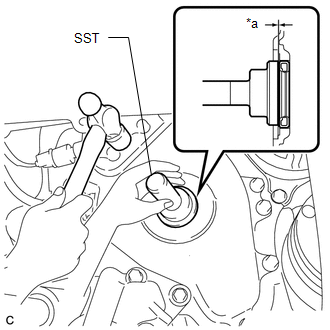

2. Using SST and a hammer, tap in the timing chain cover oil seal until its surface is flush with the timing chain cover sub-assembly retainer edge.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Tap in Depth

   • SST: 09223-22010

   Timing Chain Oil Seal Tap in Depth

   -1.0 to 1.0 mm (-0.0394 to 0.0394 in.)

   NOTE:

   • Wipe off excess grease from the crankshaft.
   • Do not tap in the timing chain cover oil seal at an angle.

1. Align the crankshaft timing gear key with the crankshaft pulley set key groove of the crankshaft pulley.

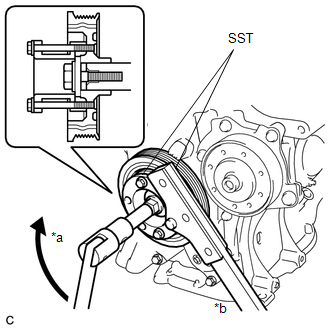

2. Using SST, hold the crankshaft pulley in place and tighten the crankshaft pulley set bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

   • SST: 09213-54015
     1. 91551-00850
   • SST: 09330-00021

   Torque: 190 N*m (1937 kgf*cm, 140 ft.*lbf)

Refer to PROCEDURE - Step 1

See step  1

Refer to PROCEDURE - Step 18 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 18 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 19 [09/2019 - ]

Refer to PROCEDURE - Step 6 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 6 [10/2017 - ]

See step  [02/2017 - 10/2017] See step  [10/2017 - 12/2021], or refer to PROCEDURE - Step 60 [12/2021 - ]

See step  [02/2017 - 10/2017] See step  [10/2017 - 12/2021], or refer to PROCEDURE - Step 61 [12/2021 - ]

Refer to PROCEDURE - Step 1 [02/2017 - 05/2018] , or refer to PROCEDURE - Step 1 [05/2018 - ]
