Installation [02/2017 - ]: Procedure

1. Set the fan and generator V belt onto every pulley.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

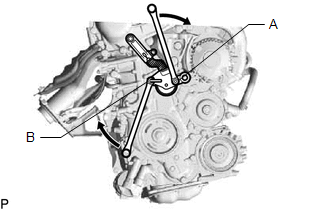

2. Attach a wrench to the hexagonal portion (A) or (B) of the V-ribbed belt tensioner assembly as shown in the illustration, and while rotating the V-ribbed belt tensioner assembly clockwise, remove the 5 mm bi-hexagon wrench.
   NOTE:

   Check that the fan and generator V belt is properly set to each pulley.

Refer to PROCEDURE - Step 1

1. Install the rear engine under cover RH to the vehicle with the 2 screws and 6 clips.
