Disassembly [02/2017 - 10/2017]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    Refer to PRECAUTION [02/2017 - 10/2017]

    GTY755917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [02/2017 - 05/2018]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - STEP 2

    WARNING:
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
      GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • If an SRS part is accidentally deployed, it may cause a serious injury.
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [02/2017 - 10/2017]

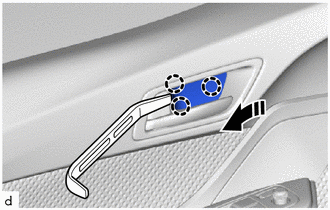

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
    1. Using a moulding remover A, disengage the claws to remove the front door inside handle bezel plug as shown in the illustration.
      GTY774668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

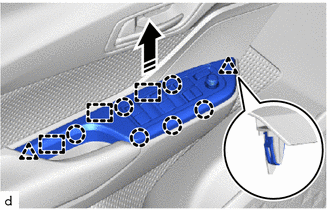

  4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL (for Driver Side)
    1. Disengage the claws, clips and guides as shown in the illustration.
      GTY766088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

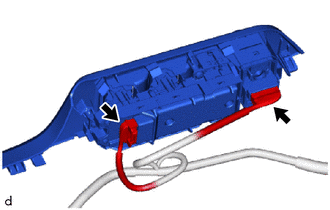

    2. Disconnect the 2 connectors to remove the multiplex network master switch assembly with front armrest base upper panel.
      GTY756345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

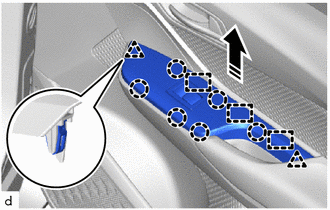

  5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL (for Front Passenger Side)
    1. Disengage the claws, clips and guides as shown in the illustration.
      GTY741716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

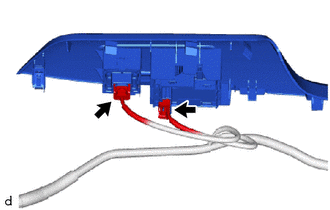

    2. Disconnect the 2 connectors to remove the power window regulator switch assembly with front armrest base upper panel.
      GTY761463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

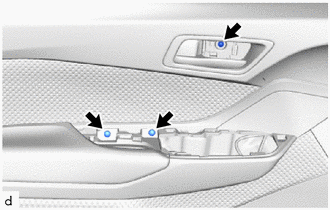

  6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
    1. Remove the 3 screws.
      GTY756338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

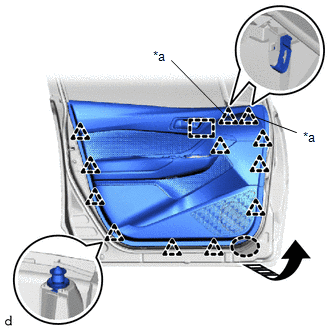

    2. Disengage the clips (A), other clips and guide as shown in the illustration.
      GTY748851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A)
      Place Hands Here
      Remove in this Direction

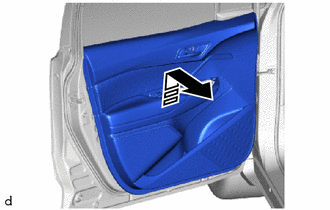

    3. Disengage the front door trim board sub-assembly with the front door glass inner weatherstrip and front door belt seal as shown in the illustration.
      GTY744109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

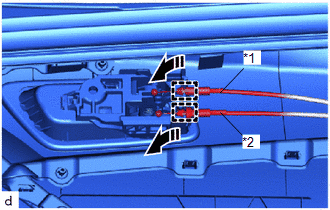

    4. Disengage the guides to disconnect the front door inside locking cable assembly and front door lock remote control cable assembly to remove the front door trim board sub-assembly as shown in the illustration.
      GTY747061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Door Inside Locking Cable Assembly
      *2 Front Door Lock Remote Control Cable Assembly
      Remove in this Direction

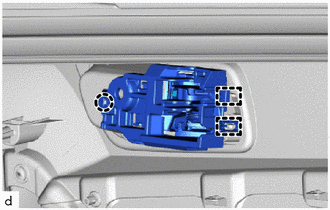

  7. REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY
    GTY772013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the claw and guides to remove the front door inside handle sub-assembly.

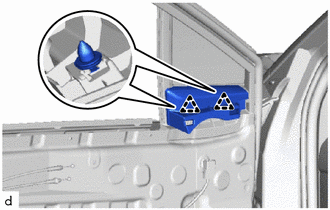

  8. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH
    1. Disengage the clips to remove the front door lower frame bracket garnish.
      GTY756333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

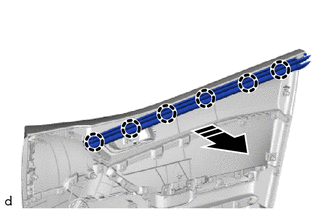

  9. REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP
    1. Disengage the claws remove the front door glass inner weatherstrip with the front door belt seal as shown in the illustration.
      GTY748571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  10. REMOVE FRONT DOOR BELT SEAL
    1. Remove the front door belt seal from the front door glass inner weatherstrip as shown in the illustration.
      GTY763197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

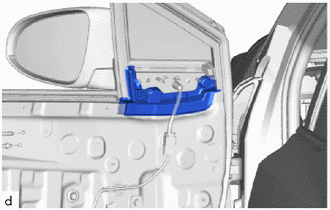

  11. REMOVE FRONT DOOR VENT SEAL
    1. Remove the front door vent seal.
      GTY756361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

    Refer to PROCEDURE - STEP 9

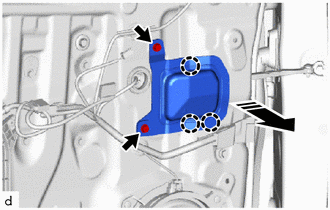

  13. REMOVE OUTER MIRROR PROTECTOR
    1. Remove the 2 screws.
      GTY762543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the claws to remove the outer mirror protector as shown in the illustration.

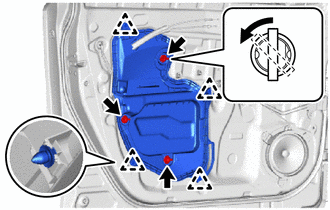

  14. REMOVE FRONT DOOR SERVICE HOLE COVER
    1. Turn the 3 door weatherstrip clips 45° and remove it clips as shown in the illustration.
      GTY756362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clips to remove the front door service hole cover.
  15. REMOVE DOOR SIDE AIRBAG SENSOR

    Refer to PROCEDURE - STEP 8

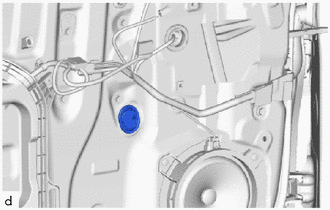

  16. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
    1. Remove the hole plug.
      GTY772018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Driver Side:
      1. Connect the multiplex network master switch assembly.
      2. Connect the cable to the negative (-) battery terminal.
      3. Move the front door glass sub-assembly so that the door glass bolts can be seen.
      4. Disconnect the cable from the negative (-) battery terminal.
      5. Disconnect the multiplex network master switch assembly.
    3. for Front Passenger Side:
      1. Connect the power window regulator switch assembly.
      2. Connect the cable to the negative (-) battery terminal.
      3. Move the front door glass sub-assembly so that the door glass bolts can be seen.
      4. Disconnect the cable from the negative (-) battery terminal.
      5. Disconnect the power window regulator switch assembly.

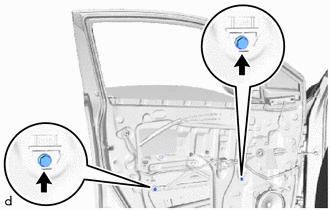

    4. Remove the 2 bolts.
      GTY756355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      After the bolts are removed, do not allow the front door glass sub-assembly to fall.

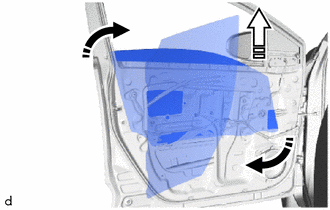

    5. Remove the front door glass sub-assembly as shown in the illustration.
      GTY741479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:

      Do not damage the front door glass sub-assembly.

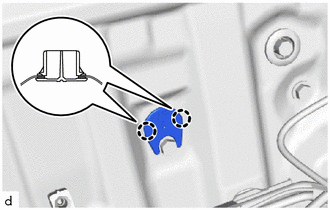

  17. REMOVE NO. 2 FRONT DOOR SERVICE HOLE COVER
    1. Disengage the claws to remove the No. 2 front door service hole cover.
      GTY756358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT DOOR WINDOW REGULATOR ASSEMBLY

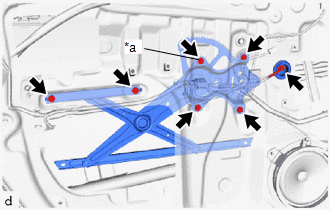

    1. Disconnect the connector.
      GTY744099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Temporary Bolt
    2. Loosen the temporary bolt.
      NOTE:

      Do not remove the temporary bolt. If the temporary bolt is removed, the front door window regulator assembly may fall and cause damage.

    3. Remove the 5 bolts and front door window regulator sub-assembly.
    4. Remove the temporary bolt from the front door window regulator assembly.
  19. REMOVE DOOR FRAME UPPER GARNISH
    1. Disengage the guides to remove the door frame upper garnish.
      GTY772023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

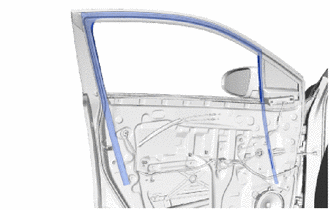

  20. REMOVE FRONT DOOR GLASS RUN
    1. Remove the front door glass run.
      GTY756375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

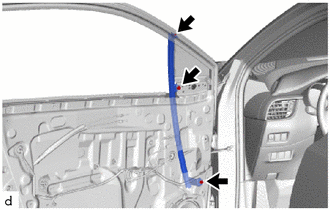

  21. REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY
    1. Raise up the front door weatherstrip.
    2. Remove the screw.
      GTY756232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and front door front lower frame sub-assembly.
    4. Install the front door weatherstrip.

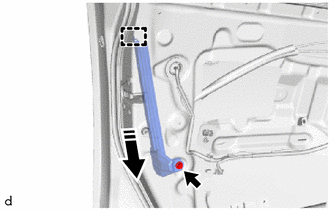

  22. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY
    1. Remove the bolt.
      GTY767629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the guide to remove the front door rear lower frame sub-assembly as shown in the illustration.
  23. REMOVE FRONT DOOR OUTSIDE HANDLE COVER (for Driver Side)

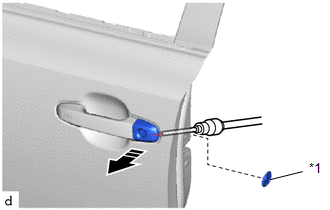

    1. Remove the hole plug.
      GTY772596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hole Plug
      Remove in this Direction
    2. Using a T30 "TORX" socket wrench, loosen the screw.
    3. Remove the front door outside handle cover with front door lock cylinder assembly as shown in the illustration.
    4. Using a screwdriver with its tip wrapped in protective tape, disengage the claw and guides to remove the front door outside handle cover as shown in the illustration.
      GTY769046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

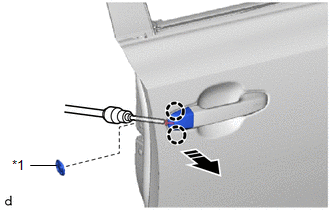

  24. REMOVE FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)
    1. Remove the hole plug.
      GTY772967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hole Plug
      Remove in this Direction
    2. Using a T30 "TORX" socket wrench, loosen the screw.
    3. Disengage the claws to remove the front door outside handle cover as shown in the illustration.
  25. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY

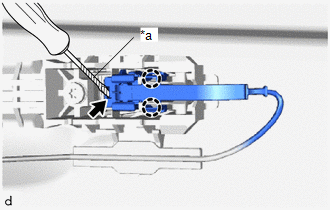

    1. w/ Smart Key System:
      GTY753123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      1. Disengage the claws.
      2. Using a screwdriver with its tip wrapped in protective tape, disconnect the connector.

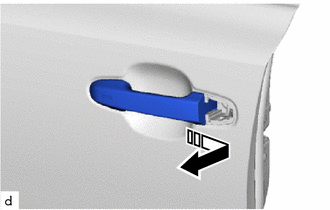

    2. Remove the front door outside handle assembly as shown in the illustration.
      GTY758715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

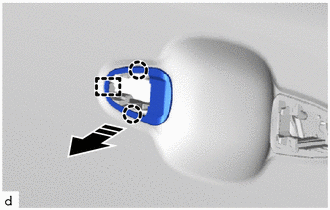

  26. REMOVE FRONT DOOR FRONT OUTSIDE HANDLE PAD
    1. Disengage the claws and guide to remove the front door front outside handle pad as shown in the illustration.
      GTY764489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  27. REMOVE FRONT DOOR REAR OUTSIDE HANDLE PAD

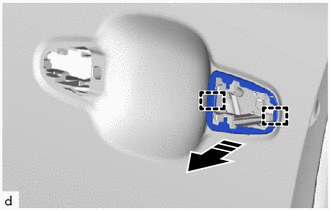

    1. Disengage the guides to remove the front door rear outside handle pad as shown in the illustration.
      GTY762250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  28. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - STEP 15

  29. REMOVE FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

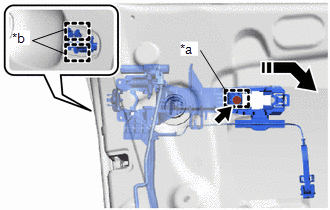

    1. w/ Smart Key System:
      1. Using a T30 "TORX" socket wrench, loosen the screw.
        GTY767852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Grommet
        *b Guide
        Remove in this Direction
      2. Disengage the grommet and guides to separate the front door outside handle frame sub-assembly as shown in the illustration.

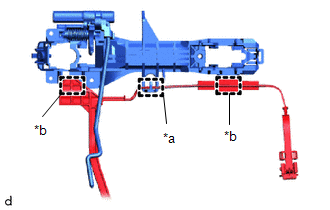

      3. Disengage the clamps and guide to remove the front door outside handle frame sub-assembly.
        GTY765544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Guide
        *b Clamp

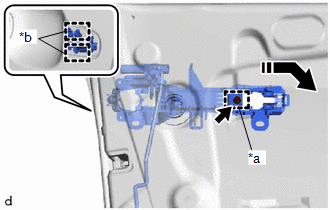

    2. w/o Smart Key System:
      1. Using a T30 "TORX" socket wrench, loosen the screw.
        GTY744250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Grommet
        *b Guide
        Remove in this Direction
      2. Disengage the grommet and guides to remove the front door outside handle frame sub-assembly as shown in the illustration.

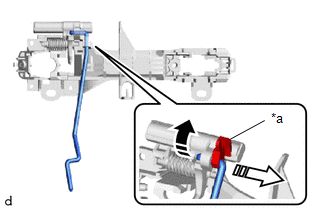

  30. REMOVE FRONT DOOR LOCK OPEN ROD
    1. Disengage the snap to remove the front door lock open rod from the front door outside frame sub-assembly as shown in the illustration.
      GTY769903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Snap
      Remove in this Direction (1)
      Remove in this Direction (2)

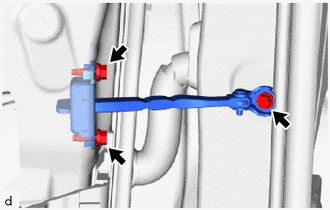

  31. REMOVE FRONT DOOR CHECK ASSEMBLY
    1. Remove the 3 bolts and front door check assembly.
      GTY771986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

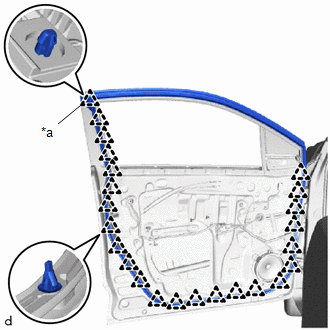

  32. REMOVE FRONT DOOR WEATHERSTRIP
    1. Using a clip remover, disengage the clip (A) and other clips to remove the front door weatherstrip.
      GTY752864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A)

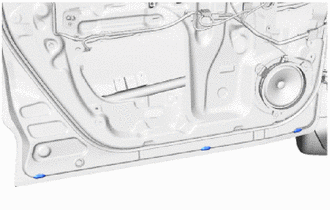

  33. REMOVE FRONT DOOR DUST PROOF SEAL
    1. Remove the 3 front door dust proof seals.
      GTY756228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

    Refer to PROCEDURE - STEP 5

  35. REMOVE FRONT DOOR FIX WINDOW GLASS

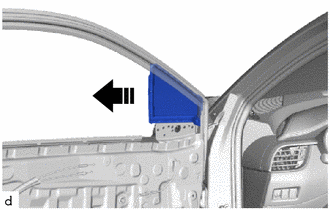

    1. Remove the front door fix window glass with front door fix window weatherstrip as shown in the illustration.
      GTY772208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  36. REMOVE FRONT DOOR FIX WINDOW WEATHERSTRIP
    1. Remove the front door fix window weatherstrip from the front door fix window glass.
      GTY771990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

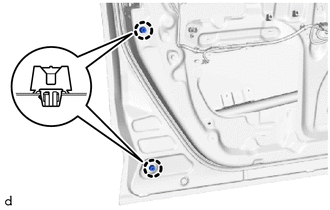

  37. REMOVE FRONT DOOR PANEL CUSHION
    1. Using a clip remover, disengage the claws to remove the 2 front door panel cushions.
      GTY756227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE FRONT DOOR OUTSIDE MOULDING

    Refer to PROCEDURE - STEP 1

  39. REMOVE FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY

    Refer to PROCEDURE - STEP 3

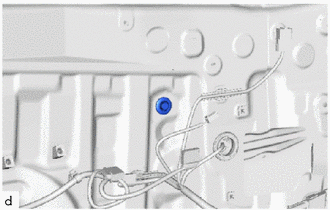

  40. REMOVE HOLE CAP
    1. Remove the hole cap.
      GTY756226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

    Refer to PROCEDURE - STEP 6

  42. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - STEP 1

  43. REMOVE COWL SIDE TRIM BOARD

    Refer to PROCEDURE - STEP 2

  44. REMOVE FRONT DOOR FRONT WINDOW FRAME MOULDING

    Refer to PROCEDURE - STEP 12

  45. REMOVE FRONT DOOR UPPER WINDOW FRAME MOULDING

    Refer to PROCEDURE - STEP 9

  46. REMOVE NO. 4 FRONT DOOR STRIPE

    Refer to PROCEDURE - STEP 19

  47. REMOVE FRONT DOOR OUTSIDE STRIPE

    Refer to PROCEDURE - STEP 20

  48. REMOVE NO. 2 FRONT DOOR STRIPE

    Refer to PROCEDURE - STEP 21
