Removal [02/2017 - ]: Procedure

REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
Refer to PROCEDURE - Step 3 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 3 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 3 [09/2019 - 08/2020] , or refer to PROCEDURE - Step 3 [08/2020 - ]
REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL (for Driver Side)
Refer to PROCEDURE - Step 4 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 4 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 4 [09/2019 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - ]
REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL (for Front Passenger Side)
Refer to PROCEDURE - Step 5 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 5 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 5 [09/2019 - 08/2020] , or refer to PROCEDURE - Step 5 [08/2020 - ]
REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 6 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 6 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 6 [09/2019 - 08/2020] , or refer to PROCEDURE - Step 6 [08/2020 - ]

REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

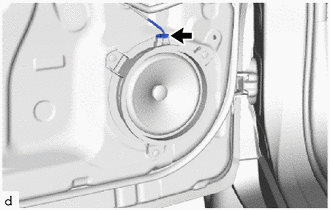

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

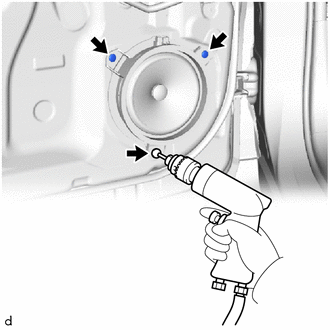

Using a drill bit with a diameter of less than 5 mm (0.197 in.), drill out the 3 rivet heads.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not touch the speaker cone.
Do not drill the rivet at an angle as this will cause damage to the drill and rivet installation hole. Line up the drill with the rivet, and carefully drill out the rivet head.
Be careful as the drilled rivet will be very hot.

Continue drilling and push out the remaining rivet fragments.
Using a vacuum cleaner, remove the rivet fragments and shavings from the inside of the door.

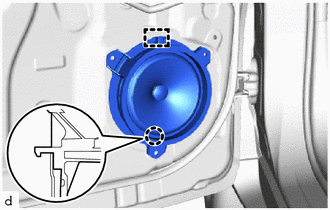

Disengage the claw and guide to remove the front No. 1 speaker assembly.
