Removal [02/2017 - 08/2020]: Procedure

PRECAUTION
NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [02/2017 - 05/2018] , or refer to PRECAUTION [05/2018 - ]

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

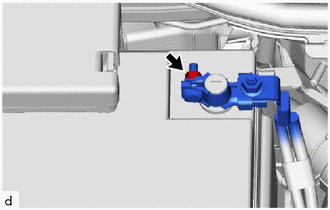

Loosen the nut and disconnect the cable from the negative (-) battery terminal.

GTY771242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [02/2017 - 10/2017] , or refer to INITIALIZATION [10/2017 - 05/2018] , or refer to INITIALIZATION [05/2018 - 09/2019] , or refer to INITIALIZATION [09/2019 - 08/2020]

REMOVE BATTERY

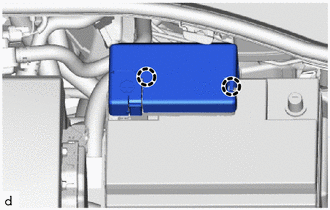

Disengage the 2 claws to remove the fusible link cover.

GTY752896

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

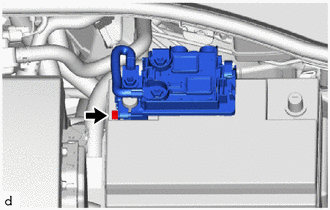

Loosen the nut.

GTY752895

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

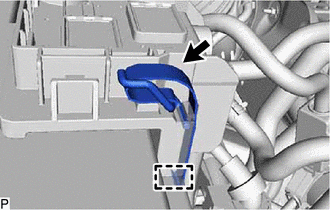

Disengage the clamp and disconnect the cable from the positive (+) battery terminal.

GTY773935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

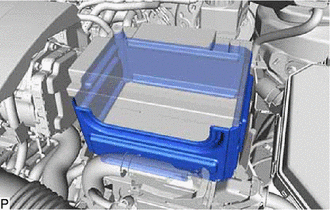

Remove the battery insulator from the battery.

GTY765096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

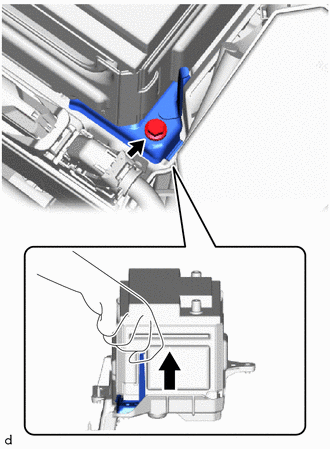

Remove the bolt and No. 2 battery clamp.

GTY771240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

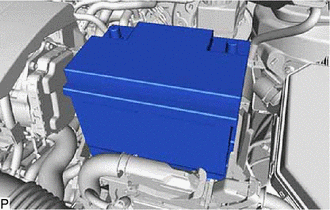

Remove the battery from the vehicle.

GTY765095

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
