Disassembly [08/2015 - 08/2019]: Procedure

Refer to PROCEDURE - Step 10

Refer to PROCEDURE - Step 11

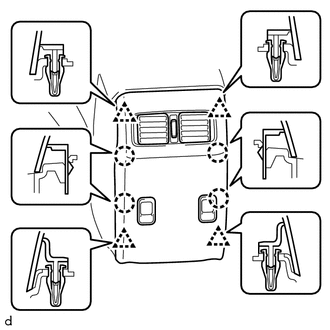

1. Detach the 4 clips and 4 claws to remove the rear console end panel.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the 2 power outlet socket assembly connectors.

Refer to PROCEDURE - Step 13

Refer to PROCEDURE - Step 14

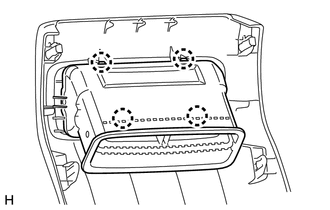

1. Detach the 4 claws to remove the console box register assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

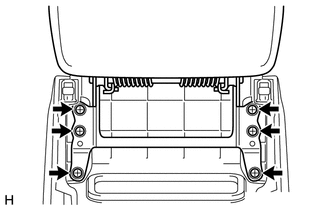

1. Remove the 6 screws and console compartment door sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws and console compartment door lock sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using a screwdriver, detach the 6 claws to remove the console compartment inner door.
   TEXT IN ILLUSTRATION



   *1	Protective Tape

   HINT:

   Tape the screwdriver tip before use.

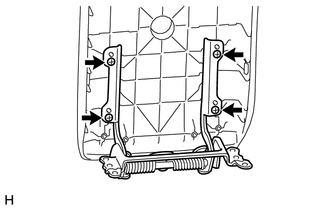

3. Remove the 4 screws and console compartment door hinge sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

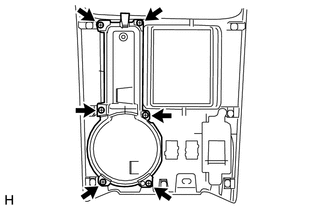

1. Remove the 6 screws and console cup holder box.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 4

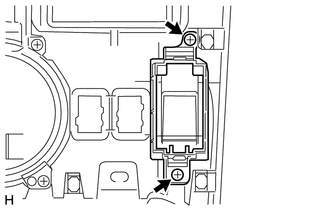

1. Remove the 2 screws and switch base.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

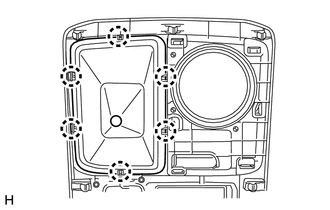

1. Detach the 6 claws to remove the shifting hole cover sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

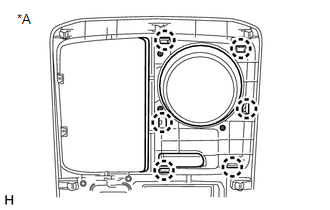

1. for VF2A:
   1. Detach the 6 claws to remove the front upper console panel garnish.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *A

      for VF2A

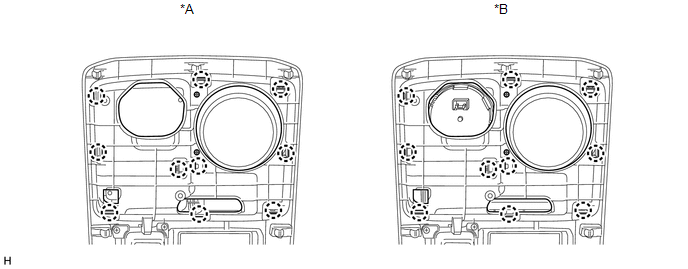

2. for 2WD, for VF2BM, VF4BM:
   1. Detach the 10 claws to remove the front upper console panel garnish.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *A

      for 2WD

      *B

      for VF2BM, VF4BM

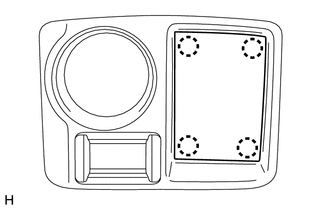

1. Detach the 4 claws to remove the No. 2 box bottom mat.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 3
