Removal [08/2015 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for VF2A)

    Refer to PROCEDURE - Step 6 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]

  4. REMOVE SEAT HEATER SWITCH

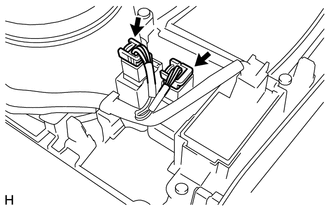

    1. Disconnect the 2 connectors.
      GTY225864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

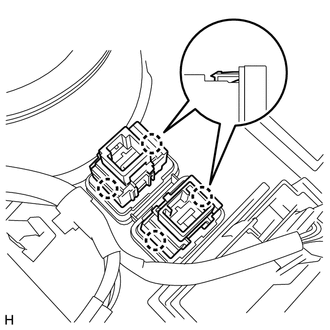

    2. Detach the 4 claws and remove the 2 switches.
      GTY225862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
