Removal [08/2015 - 08/2019]: Procedure

REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 1
REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 2
REMOVE FRONT NO. 1 CONSOLE BOX INSERT
Refer to PROCEDURE - Step 3
REMOVE FRONT NO. 2 CONSOLE BOX INSERT
Refer to PROCEDURE - Step 4
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for VF2A)
Refer to PROCEDURE - Step 6
REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
REMOVE NO. 2 CONSOLE BOX RETAINER
Refer to PROCEDURE - Step 8
REMOVE REAR CONSOLE BOX ASSEMBLY
Refer to PROCEDURE - Step 9

REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

Disconnect the power outlet socket assembly connector.

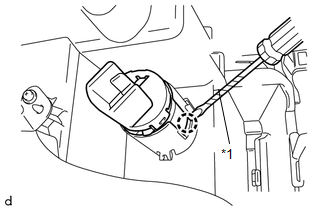

Using a screwdriver, detach the claw to remove the No. 1 power outlet socket assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Protective Tape

HINT:

Tape the screwdriver tip before use.

REMOVE NO. 1 POWER OUTLET SOCKET COVER

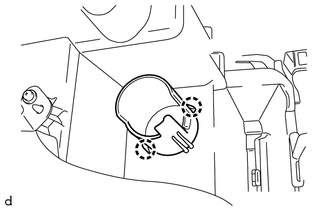

Detach the 2 claws to remove the No. 1 power outlet socket cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR CONSOLE END PANEL
Refer to PROCEDURE - Step 3

REMOVE NO. 3 POWER OUTLET SOCKET ASSEMBLY

Detach the connector clamp.

While pulling the claw of the No. 3 power outlet socket assembly in the direction of the arrow, push the No. 3 power outlet socket assembly toward the inside of the chamber to remove it.

HINT:

Use the same procedure as for the other sides.

REMOVE CENTER POWER OUTLET SOCKET COVER

Detach the 2 claws to remove the center power outlet socket cover.

HINT:

Use the same procedure as for the other sides.
