Removal [08/2015 - 08/2019]: Procedure

WARNING: This page is about a different car, the 2019 Toyota 4Runner, 2018 Toyota 4Runner, 2017 Toyota 4Runner, and 2016 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  2. REMOVE FRONT UPPER CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 15

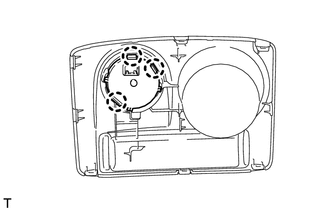

  3. REMOVE TRANSFER POSITION SWITCH
    GTY739732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 3 claws and remove the transfer position switch.
