Reassembly [11/2018 - ]: Procedure

  1. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH (for RH Side)

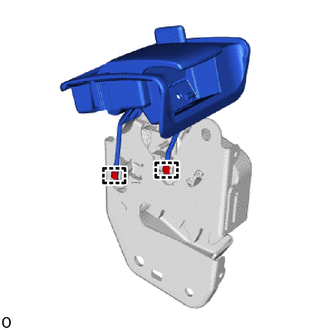

    1. Attach the hook and install the rear seat lock control lever sub-assembly RH to the rear seatback lock assembly RH.
      GTY940772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR SEATBACK LOCK ASSEMBLY RH (for RH Side)
    1. Install the rear seatback lock assembly RH with the 3 bolts.
      GTY940771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

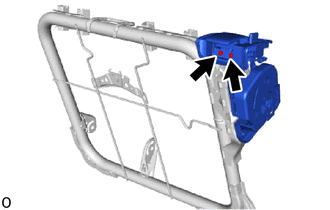

    2. Install the 2 screws.
      GTY904375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 1

  4. INSTALL REAR SEATBACK HEATER ASSEMBLY RH (for RH Side, w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  5. INSTALL SEPARATE TYPE REAR SEATBACK COVER RH (for RH Side)

    HINT:

    When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

    Refer to PRECAUTION [11/2018 - ]

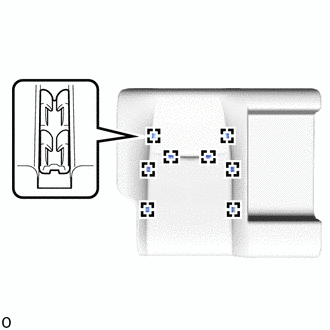

    1. Attach the hook to install the separate type rear seatback cover RH to the separate type rear seatback pad RH.
      GTY904373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to dirty or damage the separate type rear seatback cover.

  6. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for RH Side)
    1. Set the separate type rear seatback cover with pad to the rear seatback frame sub-assembly RH.

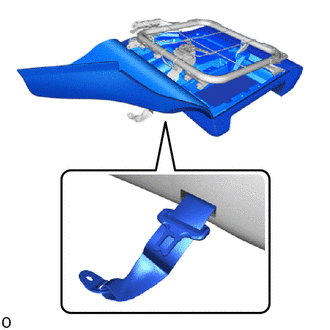

    2. Pass the rear center seat outer belt assembly through the hole of separate type rear seatback cover with pad.
      GTY904370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the hook.

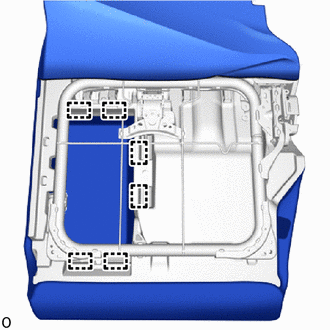

      GTY904374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

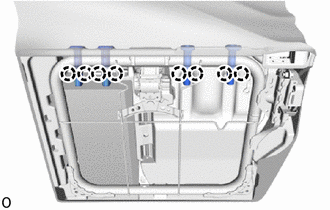

    4. Attach the claw and install the 4 rear seat headrest supports.
      GTY904386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR CENTER SEAT ARMREST ASSEMBLY (for RH Side)

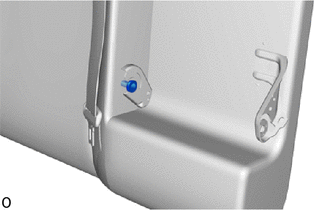

    1. Install the bush.
      GTY940773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the inside location pin in the installation direction (1) shown in the illustration.

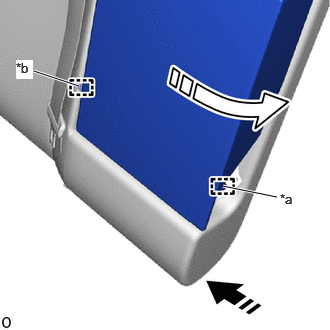

      GTY933866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Outside Location Pin
      *b Inside Location Pin
      Install in this Direction (1)
      Install in this Direction (2)
    3. Attach the outside location pin in the installation direction (2) shown in the illustration.

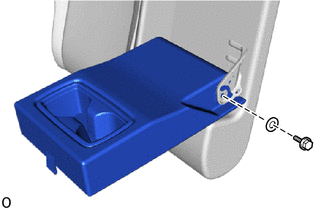

    4. Fold the rear center seat armrest assembly forward.
      GTY904380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the rear center seat armrest assembly with the washer and bolt.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  8. INSTALL CENTER ARMREST HINGE COVER (for RH Side)
    1. Attach the guide and claw to install the center armrest hinge cover.

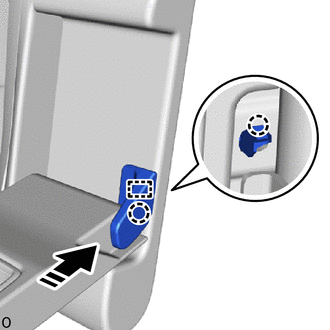

      GTY850821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  9. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH (for RH Side)
    1. Attach the hook in the installation direction (1) shown in the illustration.

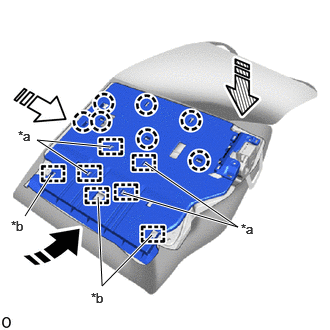

      GTY838839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide
      *b Hook
      Install in this Direction (1)
      Install in this Direction (2)
      Install in this Direction (3)
    2. Attach the guide in the installation direction (2) shown in the illustration.
    3. Attach the claw in the installation direction (3) shown in the illustration.
    4. Install the rear seatback board sub-assembly RH with the 2 clips.

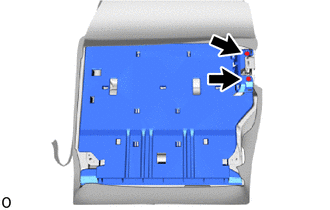

      GTY904295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Close the 2 fasteners.

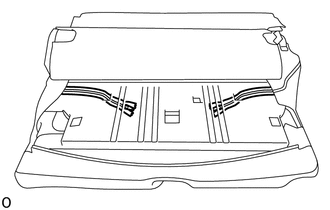

      GTY904282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Put the 2 fasteners in the hole of rear seatback board sub-assembly RH.
    7. Attach the hook.
      GTY904284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Attach the hook.
      GTY904285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR UPPER SEATBACK LOCK BEZEL RH (for RH Side)

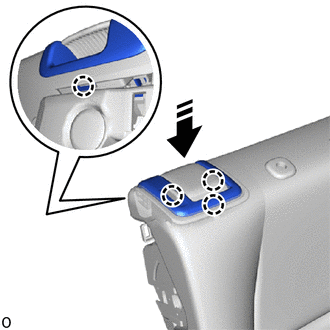

    1. Attach the claw and install the rear upper seatback lock bezel RH.
      GTY940091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  11. INSTALL REAR LOWER SEATBACK LOCK BEZEL RH (for RH Side)

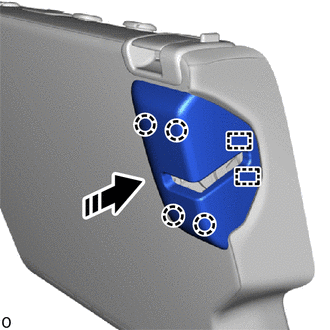

    1. Attach the guide and claw to install the rear lower seatback lock bezel RH.
      GTY876168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  12. INSTALL SEAT BELT ANCHOR COVER CAP (for RH Side)
    1. Pass the rear center seat outer belt assembly from the slit of rear seat shoulder belt cover.
      GTY904299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the guide to install the seat belt anchor cover cap as shown in the illustration.
      GTY925672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  13. INSTALL REAR SEAT SHOULDER BELT COVER (for RH Side)

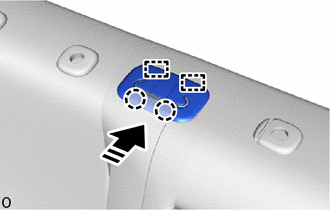

    1. Attach the guide and claw to install the rear seat shoulder belt cover.
      GTY912985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  14. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH (for LH Side)

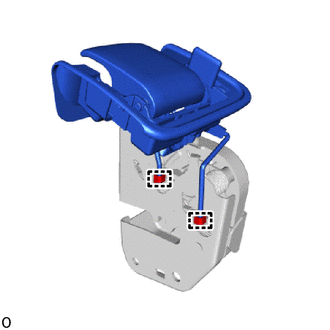

    1. Attach the hook and install the rear seat lock control lever sub-assembly LH to the rear seatback lock assembly LH.
      GTY904376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR SEATBACK LOCK ASSEMBLY LH (for LH Side)
    1. Install the rear seatback lock assembly LH with the 3 bolts.
      GTY904369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

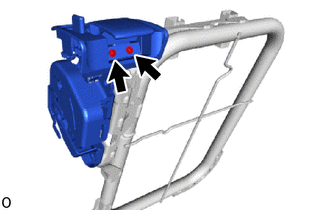

    2. Install the 2 screws.
      GTY904377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL REAR SEATBACK HEATER ASSEMBLY LH (for LH Side, w/ Seat Heater System)

    Refer to PROCEDURE - Step 11

  17. INSTALL SEPARATE TYPE REAR SEATBACK COVER LH (for LH Side)

    HINT:

    When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

    Refer to PRECAUTION [11/2018 - ]

    1. Attach the hook to install the separate type rear seatback cover LH to the separate type rear seatback pad LH.
      GTY904384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to dirty or damage the separate type rear seatback cover.

  18. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for LH Side)
    1. Set the separate type rear seatback cover with pad to the rear seatback frame sub-assembly LH.

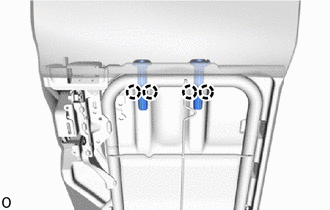

    2. Attach the claw and install the 2 rear seat headrest supports.
      GTY904385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH (for LH Side)
    1. Attach the hook in the installation direction (1) shown in the illustration.

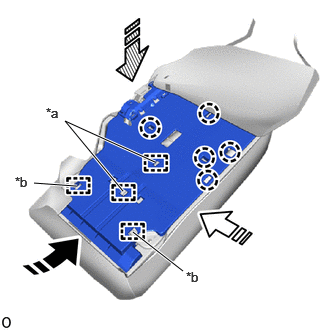

      GTY940335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide
      *b Hook
      Install in this Direction (1)
      Install in this Direction (2)
      Install in this Direction (3)
    2. Attach the guide in the installation direction (2) shown in the illustration.
    3. Attach the claw in the installation direction (3) shown in the illustration.

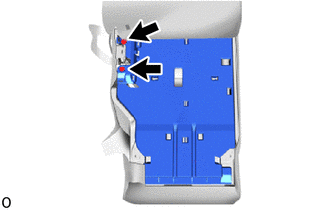

    4. Install the rear seatback board sub-assembly LH with the 2 clips.
      GTY904283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

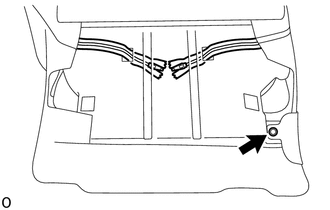

    5. Install the clip.
      GTY940752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Close the 2 fasteners.
    7. Put the 2 fasteners in the hole of rear seatback board sub-assembly LH.
    8. Attach the hook.
      GTY904286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Attach the hook.
      GTY904300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL REAR UPPER SEATBACK LOCK BEZEL LH (for LH Side)

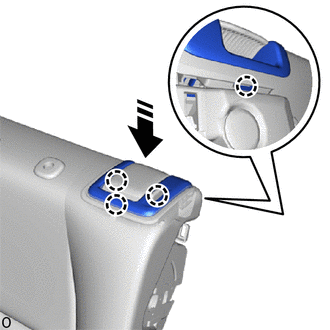

    1. Attach the claw and install the rear upper seatback lock bezel LH.
      GTY888552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  21. INSTALL REAR LOWER SEATBACK LOCK BEZEL LH (for LH Side)
    1. Attach the guide and claw to install the rear lower seatback lock bezel LH.

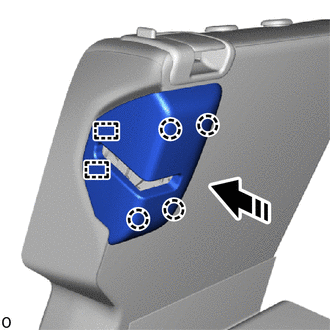

      GTY850454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  22. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
    1. Install the rear center seat headrest assembly.
  23. INSTALL REAR SEAT HEADREST ASSEMBLY
    1. Install the 2 rear seat headrest assemblies.
  24. INSTALL REAR SEAT CUSHION HEATER ASSEMBLY LH (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  25. INSTALL REAR SEAT CUSHION HEATER ASSEMBLY RH (w/ Seat Heater System)

    HINT:

    Use the same procedure described for the LH side.

  26. INSTALL BENCH TYPE REAR SEAT CUSHION COVER

    HINT:

    When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

    Refer to PRECAUTION [11/2018 - ]

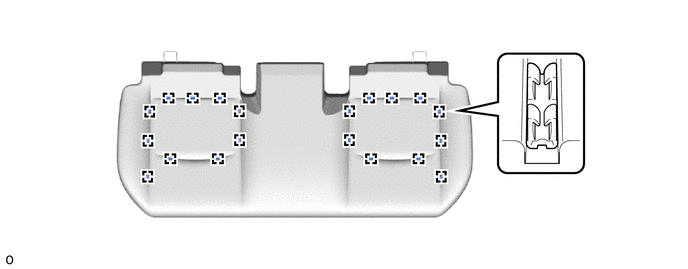

    1. Attach the hook to install the bench type rear seat cushion cover to the rear seat cushion pad.
      GTY904236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to dirty or damage the bench type rear seat cushion cover.

    2. Attach the hook.

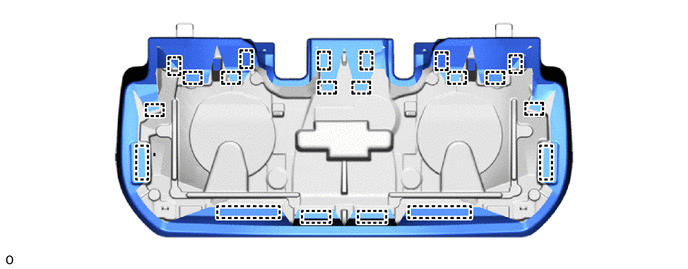

      1. for Gasoline Model:
        GTY935063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

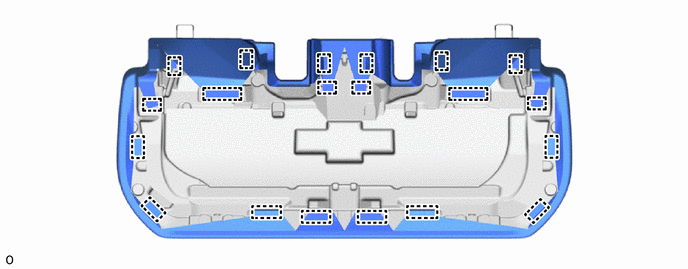

      2. for HV Model:
        GTY859702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
