Installation [11/2018 - ]: Procedure

  1. INSTALL REAR SEATBACK HEATER ASSEMBLY RH (for RH Side)

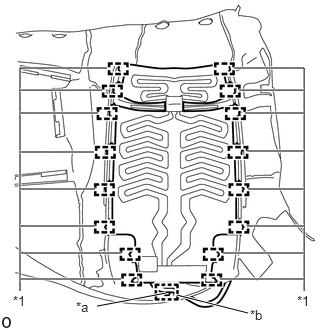

    1. Using a tacker, install the rear seatback heater assembly RH to the separate type rear seatback cover RH with 16 new tag pins as shown in the illustration.
      GTY862928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Tag Pin
      *a Clamp
      *b Slit
      NOTE:

      Do not substitute other metal parts for tag pins.

    2. Pass the wire harness of rear seatback heater assembly RH through the slit of separate type rear seatback cover RH.
    3. Attach the clamp.
  2. INSTALL SEPARATE TYPE REAR SEATBACK COVER RH (for RH Side)

    Refer to PROCEDURE - Step 5

  3. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for RH Side)

    Refer to PROCEDURE - Step 6

  4. INSTALL REAR CENTER SEAT ARMREST ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 7

  5. INSTALL CENTER ARMREST HINGE COVER (for RH Side)

    Refer to PROCEDURE - Step 8

  6. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 9

  7. INSTALL REAR UPPER SEATBACK LOCK BEZEL RH (for RH Side)

    Refer to PROCEDURE - Step 10

  8. INSTALL REAR LOWER SEATBACK LOCK BEZEL RH (for RH Side)

    Refer to PROCEDURE - Step 11

  9. INSTALL SEAT BELT ANCHOR COVER CAP (for RH Side)

    Refer to PROCEDURE - Step 12

  10. INSTALL REAR SEAT SHOULDER BELT COVER (for RH Side)

    Refer to PROCEDURE - Step 13

  11. INSTALL REAR SEATBACK HEATER ASSEMBLY LH (for LH Side)

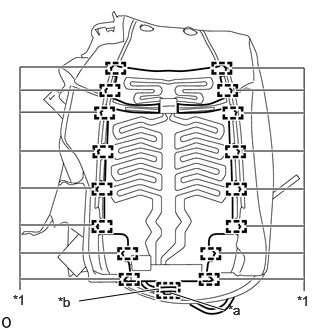

    1. Using a tacker, install the rear seatback heater assembly LH to the separate type rear seatback cover LH with 16 new tag pins as shown in the illustration.
      GTY868691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Tag Pin
      *a Clamp
      *b Slit
      NOTE:

      Do not substitute other metal parts for tag pins.

    2. Pass the wire harness of rear seatback heater assembly LH through the slit of separate type rear seatback cover LH.
    3. Attach the clamp.
  12. INSTALL SEPARATE TYPE REAR SEATBACK COVER LH (for LH Side)

    Refer to PROCEDURE - Step 17

  13. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for LH Side)

    Refer to PROCEDURE - Step 18

  14. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 19

  15. INSTALL REAR UPPER SEATBACK LOCK BEZEL LH (for LH Side)

    Refer to PROCEDURE - Step 20

  16. INSTALL REAR LOWER SEATBACK LOCK BEZEL LH (for LH Side)

    Refer to PROCEDURE - Step 21

  17. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 22

  18. INSTALL REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 23

  19. INSTALL REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 10

  20. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

    Refer to PROCEDURE - Step 14

  21. INSTALL REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 12

  22. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 13

  23. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 14

  24. INSPECT SEAT HEATER SYSTEM

    Refer to OPERATION CHECK [11/2018 - ]
