Installation [11/2018 - ]: Procedure

INSTALL REAR SEAT CUSHION HEATER ASSEMBLY LH

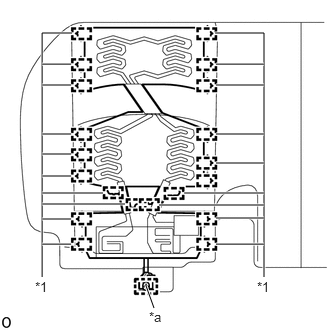

Using a tacker, install the rear seat cushion heater assembly LH to the bench type rear seat cushion cover with 20 new tag pins as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Tag Pin
*a	Clamp

NOTE:

Do not substitute other metal parts for tag pins.

Attach the clamp.

INSTALL REAR SEAT CUSHION HEATER ASSEMBLY RH
HINT:

Use the same procedure described for the LH side.
INSTALL BENCH TYPE REAR SEAT CUSHION COVER
Refer to PROCEDURE - Step 26
INSTALL REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 13
INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 14
INSPECT SEAT HEATER SYSTEM
Refer to OPERATION CHECK [11/2018 - ]
