Installation [11/2018 - ]: Procedure

INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY

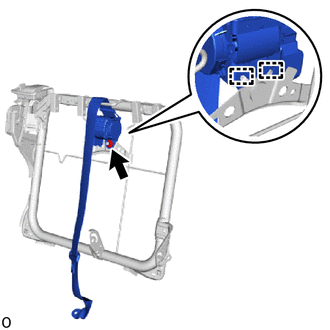

Attach the guide.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the rear center seat outer belt assembly with the nut.
Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD
Refer to PROCEDURE - Step 6
INSTALL REAR CENTER SEAT ARMREST ASSEMBLY
Refer to PROCEDURE - Step 7
INSTALL CENTER ARMREST HINGE COVER
Refer to PROCEDURE - Step 8
INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 9
INSTALL REAR UPPER SEATBACK LOCK BEZEL RH
Refer to PROCEDURE - Step 10
INSTALL REAR LOWER SEATBACK LOCK BEZEL RH
Refer to PROCEDURE - Step 11
INSTALL SEAT BELT ANCHOR COVER CAP
Refer to PROCEDURE - Step 12
INSTALL REAR SEAT SHOULDER BELT COVER
Refer to PROCEDURE - Step 13
INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
1. Install the rear center seat headrest assembly.
INSTALL REAR SEAT HEADREST ASSEMBLY
1. Install the rear seat headrest assembly.
INSTALL REAR SEATBACK ASSEMBLY RH
Refer to PROCEDURE - Step 10

INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

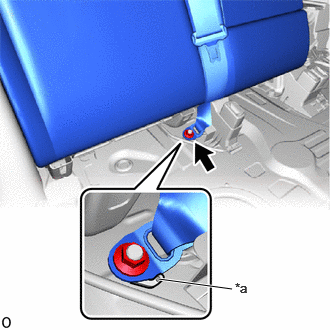

Install the floor anchor of rear center seat outer belt assembly with the nut.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protruding Part

Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

NOTE:

Do not allow the floor anchor of the rear center seat outer belt assembly to overlap the protruding part.

Check that the ELR locks.
1. With the rear center seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

INSTALL REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 13
INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 14
INSPECT SEAT HEATER SYSTEM (w/ Seat Heater System)
Refer to OPERATION CHECK [11/2018 - ]
