Installation [04/2018 - ]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

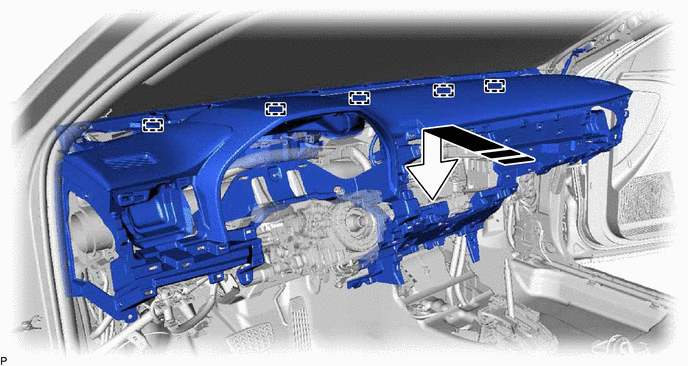

    1. Engage the 5 guides as shown in the illustration to temporarily install the instrument panel safety pad sub-assembly.
      GTY943932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
      NOTE:
      • Do not damage the instrument panel safety pad sub-assembly.
      • Do not allow the wire harnesses to interfere with the surrounding parts.
    2. Install the instrument panel safety pad sub-assembly with the 4 bolts <B>, 2 bolts <A> and nut <E>.

      Bolt<A>

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    3. Install the 2 clips.
    4. Engage each clamp.
    5. Connect each connector.
    6. Engage the 2 claws to connect the cooler (room temp. sensor) thermistor.
  2. CONNECT NO. 2 INSTRUMENT PANEL WIRE

    Refer to PROCEDURE - Step 4

  3. INSTALL TURN SIGNAL SWITCH

    Refer to PROCEDURE - Step 1

  4. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. INSTALL UPPER STEERING COLUMN COVER

    for Manual Tilt and Manual Telescopic Steering Column: Refer to PROCEDURE - Step 11

    for Power Tilt and Power Telescopic Steering Column: Refer to PROCEDURE - Step 11

  6. INSTALL LOWER STEERING COLUMN COVER

    for Manual Tilt and Manual Telescopic Steering Column: Refer to PROCEDURE - Step 12

    for Power Tilt and Power Telescopic Steering Column: Refer to PROCEDURE - Step 12

  7. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  8. INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - ]

  9. INSTALL STEERING WHEEL ASSEMBLY

    Refer to PROCEDURE - Step 6 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 6 [08/2020 - ]

  10. CHECK STEERING WHEEL CENTER POINT
  11. INSTALL HORN BUTTON ASSEMBLY

    Refer to INSTALLATION [04/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - ]

  12. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 1

  13. INSTALL FRONT NO. 4 SPEAKER ASSEMBLY (for 14 Speakers)

    Refer to PROCEDURE - Step 2

  14. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 1

  15. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH
    1. Connect the connector.

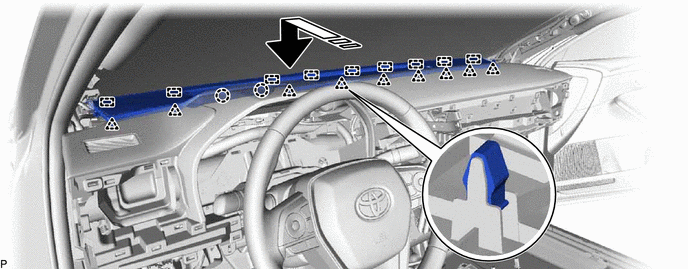

    2. Engage the 9 guides, 9 clips and 2 claws as shown in the illustration to install the No. 1 defroster nozzle garnish.
      GTY890387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
  16. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

    See step  29 [04/2018 - 08/2020], or see step  27 [08/2020 - ]

  17. INSTALL FRONT PILLAR GARNISH LH

    See step  29 [04/2018 - 08/2020], or see step  27 [08/2020 - ]

  18. INSTALL NO. 2 INSTRUMENT CLUSTER MOULDING
    1. Engage the 2 clips as shown in the illustration to install the No. 2 instrument cluster moulding.

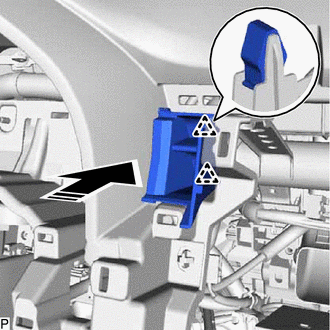

      GTY935572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  19. INSTALL NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH
    1. Engage the 2 clips as shown in the illustration to install the No. 3 instrument cluster finish panel garnish.

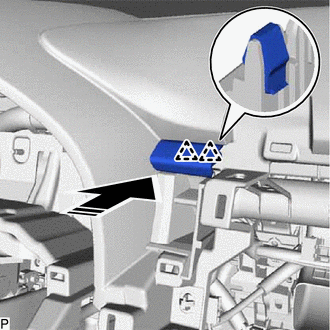

      GTY933664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  20. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

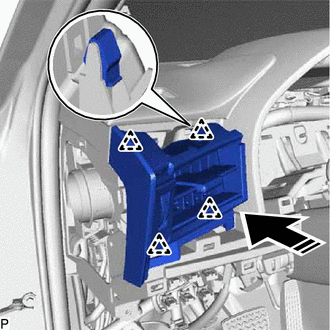

    1. Engage the 4 clips as shown in the illustration to install the No. 1 instrument panel register assembly.
      GTY845775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  21. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

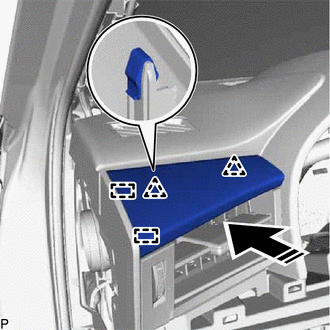

    1. Engage the 2 guides and 2 clips as shown in the illustration to install the No. 1 instrument cluster finish panel garnish.
      GTY923509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  22. INSTALL COMBINATION METER ASSEMBLY

    Refer to PROCEDURE - Step 1 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 1 [08/2020 - ]

  23. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

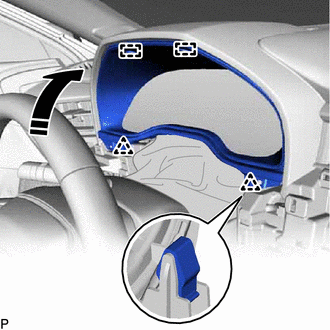

    1. Engage the 2 guides and 2 clips as shown in the illustration.
      GTY914127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the 2 clips.

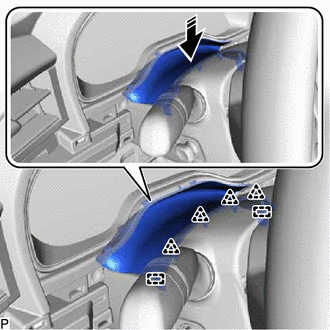

    3. Engage the 2 guides and 4 clips as shown in the illustration to install the instrument cluster finish panel sub-assembly.
      GTY939630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

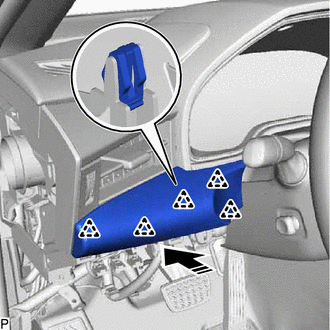

  24. INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
    1. Engage the 5 clips as shown in the illustration to install the No. 1 instrument panel garnish sub-assembly.
      GTY881870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  25. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
    1. Connect the connector.

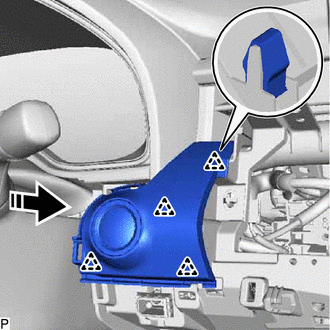

    2. Engage the 4 clips as shown in the illustration to install the lower instrument panel finish panel assembly.
      GTY870830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

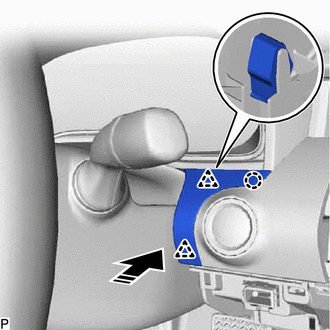

  26. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
    1. Engage the 2 clips and claw as shown in the illustration to install the instrument cluster finish panel garnish assembly.
      GTY862291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  27. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

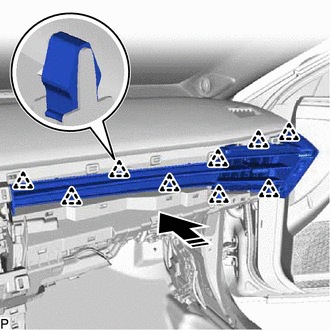

    1. Engage the 9 clips as shown in the illustration.
      GTY853945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the No. 4 instrument panel register assembly with the screw <D>.
  28. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

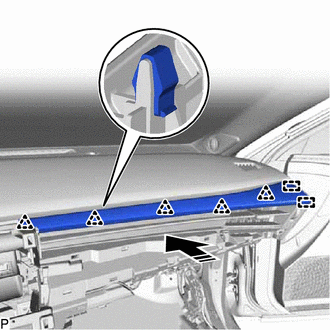

    1. Engage the 2 guides and 5 clips as shown in the illustration to install the No. 2 instrument cluster finish panel garnish.
      GTY841391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  29. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

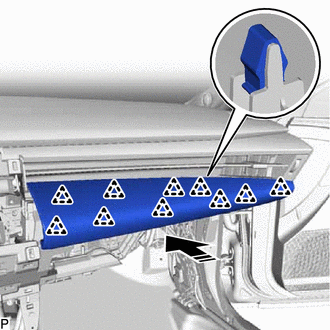

    1. Engage the 10 clips as shown in the illustration.
      GTY919095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the No. 2 instrument panel garnish sub-assembly with the screw <D>.
  30. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

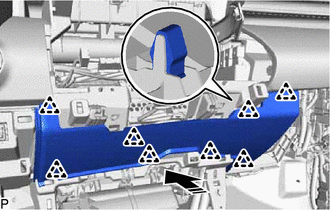

    1. Engage the 8 clips as shown in the illustration to install the lower center instrument panel finish panel.
      GTY892678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  31. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Connect the connector and engage the clamp.

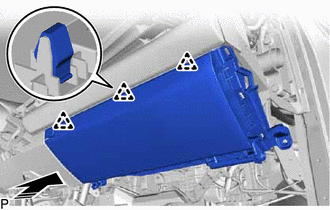

    2. Engage the 3 clips as shown in the illustration.
      GTY934699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the lower instrument panel sub-assembly with the 5 screws <C>.
  32. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [04/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - ]

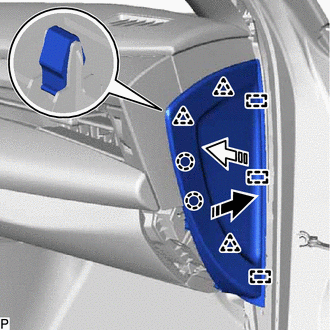

  33. INSTALL INSTRUMENT SIDE PANEL RH
    1. Insert the instrument side panel RH in the direction indicated by the arrow (1) shown in the illustration to engage the 3 guides.
      GTY863126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    2. Push the instrument side panel RH in the direction indicated by the arrow (2) shown in the illustration to engage the 3 clips and 2 claws and install it.
  34. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 1

  35. INSTALL GLOVE COMPARTMENT PLATE

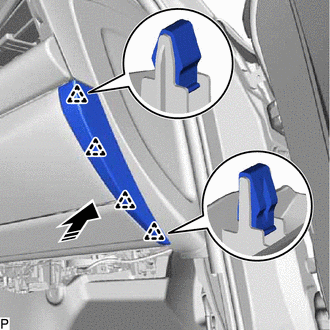

    1. Engage the 4 clips as shown in the illustration to install the glove compartment plate.
      GTY848952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  36. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connector.
    2. Engage the clamp.

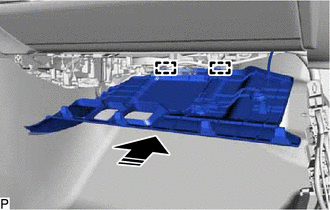

    3. Engage the 2 guides as shown in the illustration.
      GTY904491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

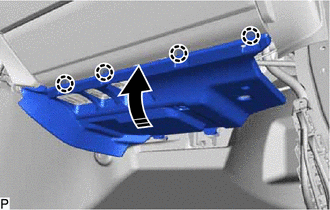

    4. Engage the 4 claws as shown in the illustration to install the No. 2 instrument panel under cover sub-assembly.
      GTY894557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  37. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    See step  31 [04/2018 - 08/2020], or see step  29 [08/2020 - ]

  38. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    See step  32 [04/2018 - 08/2020], or see step  30 [08/2020 - ]

  39. INSTALL NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Install the No. 2 heater to register duct sub-assembly with the 2 screws <C>.
  40. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 7

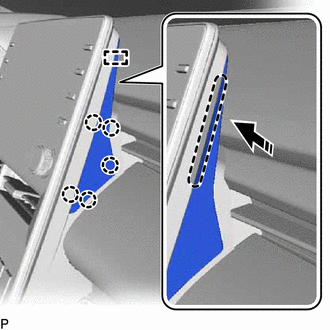

  41. INSTALL CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL
    1. Engage the guide and 5 claws as shown in the illustration to install the center No. 2 instrument cluster finish panel.
      GTY921327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Install in this Direction
  42. INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

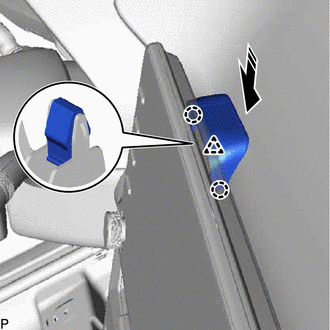

    1. Engage the clip and 2 claws as shown in the illustration to install the center No. 1 instrument cluster finish panel.
      GTY843992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  43. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [04/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - ]

  44. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

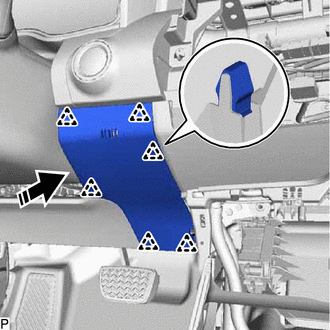

    1. Engage the 6 clips as shown in the illustration to install the lower No. 2 instrument panel finish panel.
      GTY873312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

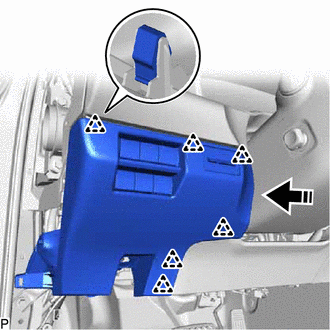

  45. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
    1. Connect each connector.
    2. Engage the clamp.
    3. Engage the 6 clips as shown in the illustration to install the No. 1 instrument panel sub-assembly.
      GTY906211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  46. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Engage the claw and 2 guides to connect the hood lock control lever sub-assembly.

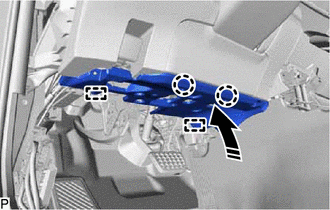

  47. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connector and engage the 2 clamps.
    2. Engage the 2 claws to install the DLC3 connector.
    3. Engage the 2 guides and 2 claws as shown in the illustration.
      GTY863515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the No. 1 instrument panel under cover sub-assembly with the 2 screws <C>.

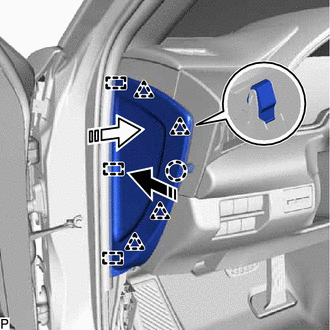

  48. INSTALL INSTRUMENT SIDE PANEL LH
    1. Insert the instrument side panel LH in the direction indicated by the arrow (1) shown in the illustration to engage the 3 guides.
      GTY928554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    2. Push the instrument side panel LH in the direction indicated by the arrow (2) shown in the illustration to engage the 4 clips and claw and install it.
  49. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1

  50. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

    See step  31 [04/2018 - 08/2020], or see step  29 [08/2020 - ]

  51. INSTALL FRONT DOOR SCUFF PLATE LH

    See step  32 [04/2018 - 08/2020], or see step  30 [08/2020 - ]

  52. INSTALL CONSOLE ASSEMBLY

    Refer to INSTALLATION [04/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - ]
