Installation [04/2018 -]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
    1. Engage the claw to install the windshield wiper switch assembly as shown in the illustration.

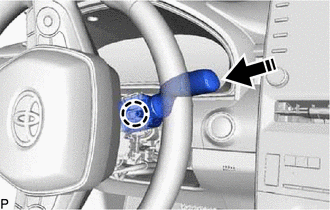

      GTY881932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL UPPER STEERING COLUMN COVER
    1. Engage the claw to install the upper steering column cover as shown in the illustration.

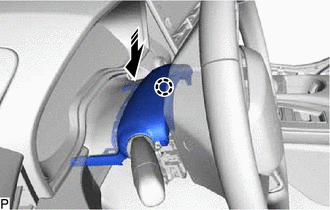

      GTY887037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 4 clips and 2 claws to connect the upper steering column cover.
  3. INSTALL LOWER STEERING COLUMN COVER
    NOTE:

    If the lower steering column cover is installed in the incorrect order, the parts may break.

    1. Engage the 2 claws.
    2. Engage the 2 claws.

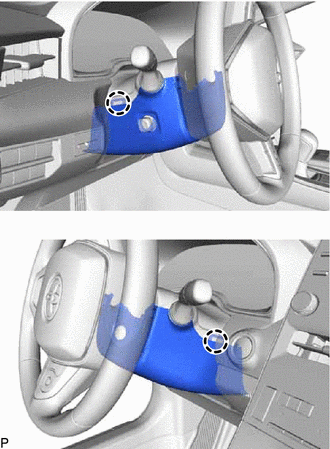

      GTY925302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the screw.
    4. Turn the steering wheel assembly to the left and install the screw.
    5. Turn the steering wheel assembly to the right and install the lower steering column cover with the screw.
  4. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)

    Refer to PROCEDURE - Step 18
