Removal [01/2018 - 11/2018]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to REMOVAL [06/2015 - 11/2018]

  2. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    See step  6

  3. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

    See step  7

  4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

    See step  13

  5. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. REMOVE INSTRUMENT CENTER UPPER CLUSTER FINISH PANEL

    See step  19

  7. REMOVE INSTRUMENT CENTER PANEL REGISTER ASSEMBLY

    See step  20

  8. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 6

  9. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

    See step  27

  10. REMOVE INSTRUMENT SIDE PANEL RH

    HINT:

    Use the same procedure as for the LH side.

    See step  25

  11. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    See step  29

  12. REMOVE FRONT CONSOLE BOX COVER

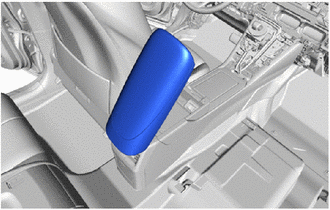

    1. Open the console compartment door sub-assembly.
      GTY551235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

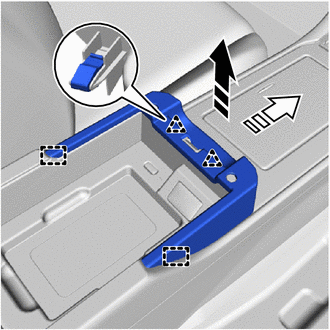

    2. Disengage the clips and guides to remove the front console box cover as shown in the illustration.
      GTY598725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  13. REMOVE CONSOLE COMPARTMENT BOX ASSEMBLY

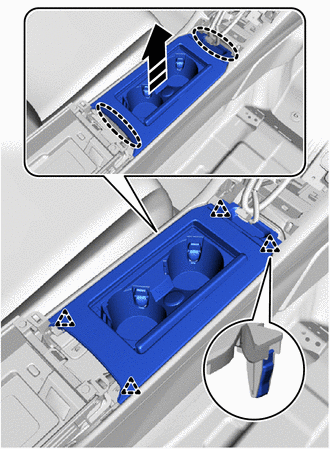

    1. Disengage the clips to remove the console compartment box assembly as shown in the illustration.
      GTY561318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
  14. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

    Refer to PROCEDURE - Step 2

  15. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

    Refer to PROCEDURE - Step 3

  16. REMOVE NO. 6 CONSOLE BOX RETAINER

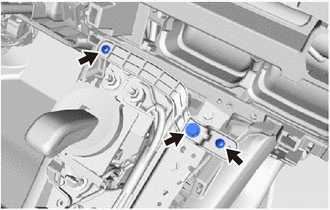

    1. Remove the 2 screws and bolt.
      GTY551242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

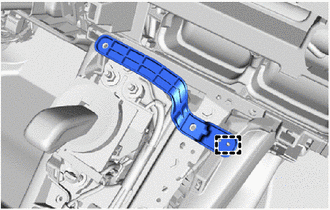

    2. Disengage the guide to remove the No. 6 console box retainer.
      GTY551236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE NO. 1 FRONT CONSOLE BOX INSERT

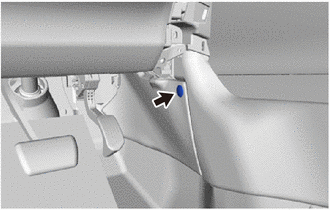

    1. Remove the clip.
      GTY551237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 1 front console box insert:
      GEMPTY001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

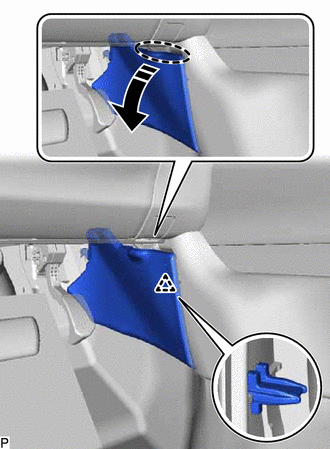

      1. Disengage the clip as shown in the illustration.
        GTY929852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place Hands Here
        Remove in this Direction

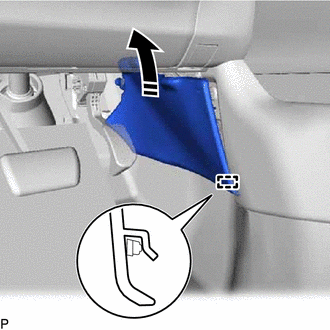

      2. Disengage the guide as shown in the illustration.
        GTY858266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction

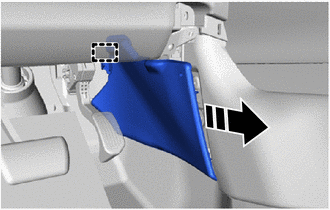

      3. Disengage the guide to remove the No. 1 front console box insert as shown in the illustration.
        GTY601845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
  18. REMOVE NO. 2 FRONT CONSOLE BOX INSERT

    HINT:

    Use the same procedure as for the No. 1 side.

  19. REMOVE NO. 2 CONSOLE BOX DUCT

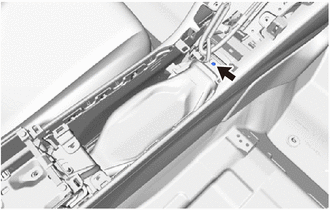

    1. Remove the clip.
      GTY551212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

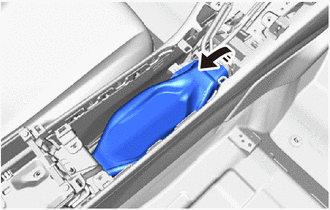

    2. Remove the No. 2 console box duct as shown in the illustration.
      GTY574727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE NO. 1 CONSOLE BOX DUCT

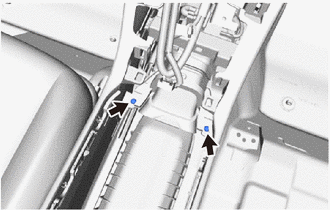

    1. Remove the 2 clips.
      GTY551217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

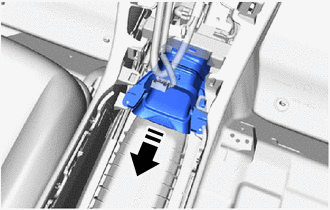

    2. Remove the No. 1 console box duct as shown in the illustration.
      GTY589354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  21. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

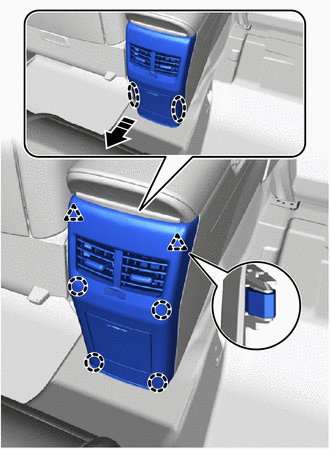

    1. Disengage the clips and claws to remove the console rear end panel sub-assembly as shown in the illustration.
      GTY545618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
  22. REMOVE NO. 4 CONSOLE BOX DUCT

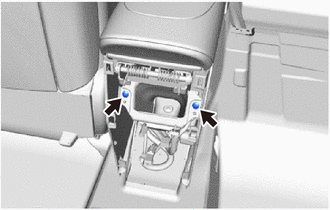

    1. Remove the 2 clips.
      GTY551221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

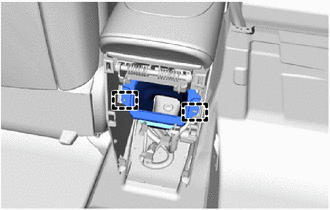

    2. Disengage the 2 guides to remove the No. 4 console box duct.
      GTY551215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

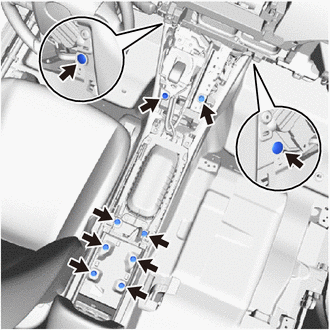

    1. Remove the 2 clips.
      GTY551216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 8 bolts.

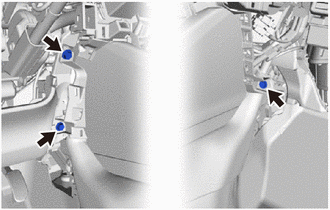

    3. Remove the 3 bolts.
      GTY551227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the clamps.

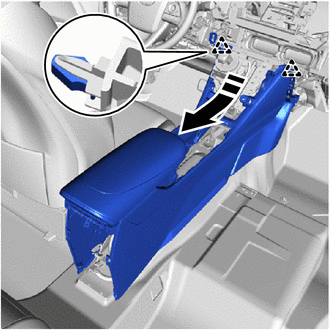

    5. Disengage the clips as shown in the illustration.
      GTY546438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

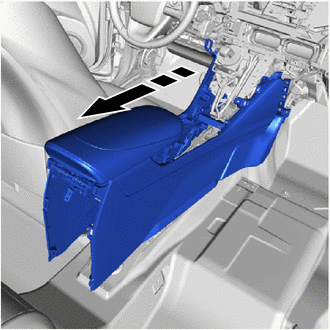

    6. Remove the rear console box sub-assembly as shown in the illustration.
      GTY600021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
