DTC P0775-12: Pressure Control Solenoid "B" Circuit Short to Battery [06/2018 - 09/2024]: Procedure

1. Disconnect the C61 transmission wire connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (Transmission Wire)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3 (SL2+) - Other terminals	Always	10 kΩ or higher
   8 (SL2-) - Other terminals	Always	10 kΩ or higher

3. Connect the C61 transmission wire connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  4

Result:

OK

See step  2

1. Disconnect the C80 TCM connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C80-19 (SL2+) - Other terminals	Always	10 kΩ or higher
   C80-20 (SL2-) - Other terminals	Always	10 kΩ or higher

3. Connect the C80 TCM connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION WIRE - TCM)

Result:

OK

See step  3

1. Replace the TCM.

   Refer to COMPONENTS [06/2018 - 01/2019] , or refer to COMPONENTS [01/2019 - 03/2019] , or refer to COMPONENTS [03/2019 - 09/2024]

   Result

   Proceed to
   NEXT

Result:

NEXT

PERFORM REGISTRATION AND INITIALIZATION

for Registration: Refer to REGISTRATION [06/2018 - 09/2024]

for Initialization: Refer to INITIALIZATION [06/2018 - 09/2022] , or refer to INITIALIZATION [09/2022 - 11/2022] , or refer to INITIALIZATION [11/2022 - 09/2024]

1. Disconnect the C61 transmission wire connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

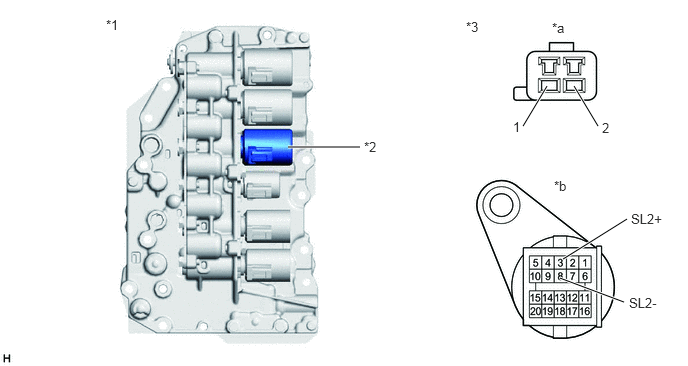

   *1	Transmission Valve Body Assembly	*2	Shift Solenoid Valve SL2
   *3	Transmission Wire	-	-
   *a	Shift Solenoid Valve Side	*b	Wire Harness Connector Side

2. Disconnect the transmission wire connector from the shift solenoid valve SL2.

   Refer to REMOVAL [06/2018 - 09/2022] , or refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - 09/2024]

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 (shift solenoid valve side) or 3 (SL2+) (wire harness connector side) - All other terminals	Always	10 kΩ or higher
   2 (shift solenoid valve side) or 8 (SL2-) (wire harness connector side) - All other terminals	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE TRANSMISSION WIRE

Refer to COMPONENTS [06/2018 - 03/2023] , or refer to COMPONENTS [03/2023 - 09/2024]

Result:

OK

See step  5

1. Replace the transmission valve body assembly.

   Refer to COMPONENTS [06/2018 - 09/2024]

   Result

   Proceed to
   NEXT

Result:

NEXT

PERFORM REGISTRATION AND INITIALIZATION

for Registration: Refer to REGISTRATION [06/2018 - 09/2024]

for Initialization: Refer to INITIALIZATION [06/2018 - 09/2022] , or refer to INITIALIZATION [09/2022 - 11/2022] , or refer to INITIALIZATION [11/2022 - 09/2024]
