Section 77 (Automatic Transaxle System (K120 / K121) - Service Information (5 Of 5))
>>
Transmission Wire
>>
Components [06/2018 - 03/2023]
Components [06/2018 - 03/2023]
WARNING:
This page is about a different variant/trim than selected.

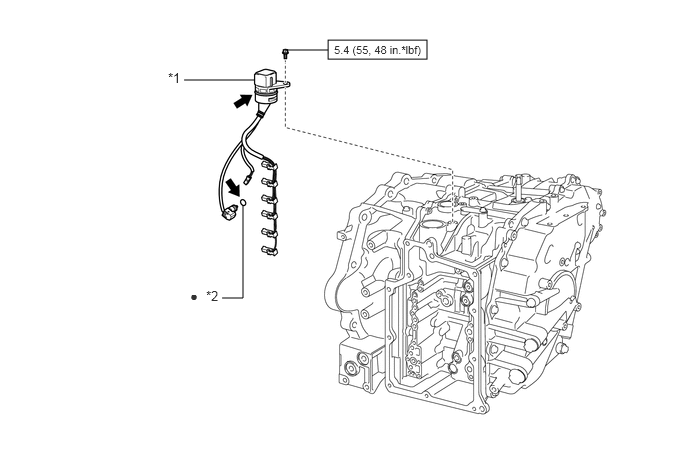

Fig 1: Transmission Wire Replacement Components With Torque Specifications [06/2018 - 03/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
TRANSMISSION WIRE
*2
O-RING
N.m (kgf/cm, ft.lbf): Specified torque
•
Non-reusable part
Toyota Genuine CVT Fluid FE
-
-
