Components [03/2023 - 09/2024]
WARNING: This page is about a different variant/trim than selected.

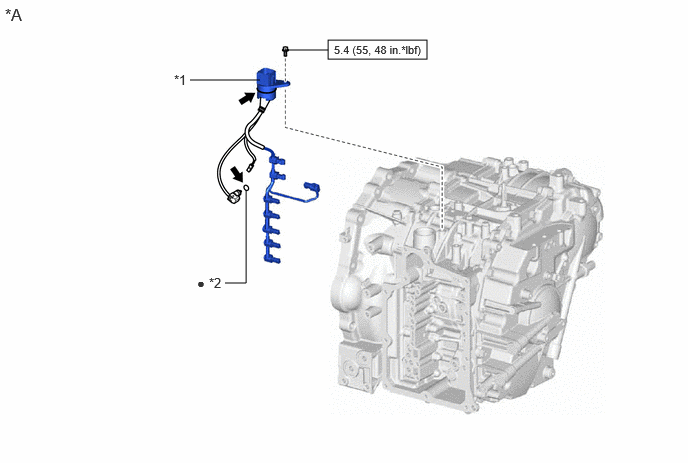

Fig 1: Transmission Wire Replacement Components With Torque Specifications [03/2023 - 09/2024] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for K120 | - | - |
| *1 | TRANSMISSION WIRE | *2 | O-RING |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine CVT Fluid FE | - | - |

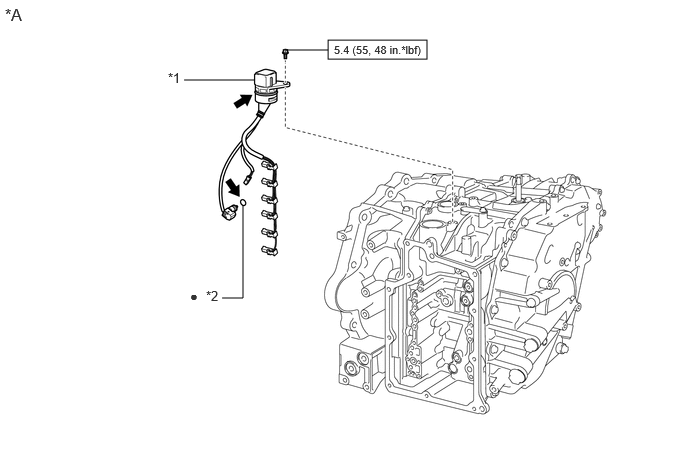

Fig 2: Transmission Wire Replacement Components With Torque Specifications [03/2023 - 09/2024] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for K121 | - | - |
| *1 | TRANSMISSION WIRE | *2 | O-RING |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine CVT Fluid FE | - | - |
